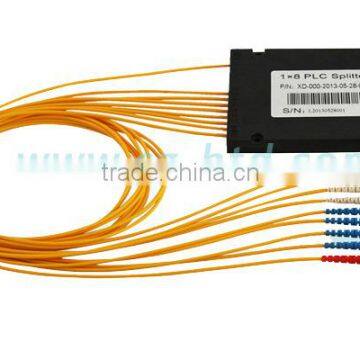

China suppliers 1X8 2.0&3.0 PLC Splitter
Specification
Fiber optic PLC splitter
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price
Description:
Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and iswidely used in PON networks to realize optical signal power splitting. This component is for transmission of optic information from assembling PLC splitter chip with PLC fiber array.and can supply various splitting channel as 1xN or 2xN.
Features:
1. High channel isolation
2. High stability and reliability
3. Customized packaging and Configuration
4. Low insertion loss
5. Ultra small size suitable to all equipments
6. Passed GR-1209&1221-CORE Test
Applications:
1. LAN
2. WDM network
3. Telecommunication
4. Cellular Application
5. Fiber optical amplifier
6. FTTH
7. CATV
Technical Parameters
1xN(N>2)PLCS(With connector) Optical parameters:
| Paramenters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
|---|---|---|---|---|---|---|---|
| Operation wavelength(nm) | 1260~1650 | ||||||
| Insertion loss(dB) | Max | 4.3 | 7.7 | 11.0 | 14.0 | 17.2 | 31.3 |
| Return loss(dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| APC Min | 55 | 55 | 55 | 55 | 55 | 55 | |
| UPC Min | 50 | 50 | 50 | 50 | 50 | 50 | |
| PLD(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
| Directivity(dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Pigtail length(m) | 1.0(±0.1) or customer specified | ||||||
| Fiber type | Cusomization | ||||||
| Operation temperature(°C) | -20~65 | ||||||
| Storage temperature(°C) | -40~85 | ||||||
| Dimension (L×W×H) (mm) | 100×70×9 | 100×70×9 | 100×70×9 | 120×80×18 | 140×114×18 | 140×114×18 | |
2×N(N>2)PLCS(With connector) Optical parameters:
| Paramenters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
|---|---|---|---|---|---|---|---|
| Operation wavelength(nm) | 1260~1650 | ||||||
| Insertion loss(dB) | Max | 4.5 | 8.1 | 11.5 | 14.5 | 17.8 | 21.8 |
| Return loss(dB) | Max | 0.6 | 1.2 | 1.5 | 1.8 | 2.0 | 2.0 |
| APC Min | 55 | 55 | 55 | 55 | 55 | 55 | |
| UPC Min | 50 | 50 | 50 | 50 | 50 | 50 | |
| PLD(dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity(dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Pigtail length(m) | 1.0(±0.1) or customer specified | ||||||
| Fiber type | Cusomization | ||||||
| Operation temperature(°C) | -20~65 | ||||||
| Storage temperature(°C) | -40~85 | ||||||
| Dimension (L×W×H) (mm) | 100×70×9 | 100×70×9 | 100×70×9 | 120×80×18 | 140×114×18 | 140×114×18 | |
Ordering Information
Port Type | Cable Type | Fiber Length | Connector Type | Package Style | |
|---|---|---|---|---|---|
PLC Splitter | 1*4 1*8 1*16 1*32 1*64 2*32 Others Specify | 0.25mm Bare fiber Ribbon Fiber Fan-out with 0.9mm Loose Tube 2.0mm Cable 3.0mm Cable | 1 meter 2 meter 3 meter Others specify | FC/APC FC/PC SC/APC SC/PC ST/UPC LC/APC Others Specify | Stainless steel sleeve Plastic Module 19’’ 1U Rack Mount Others Specify |
