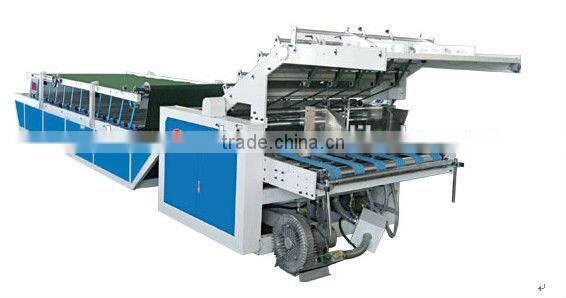

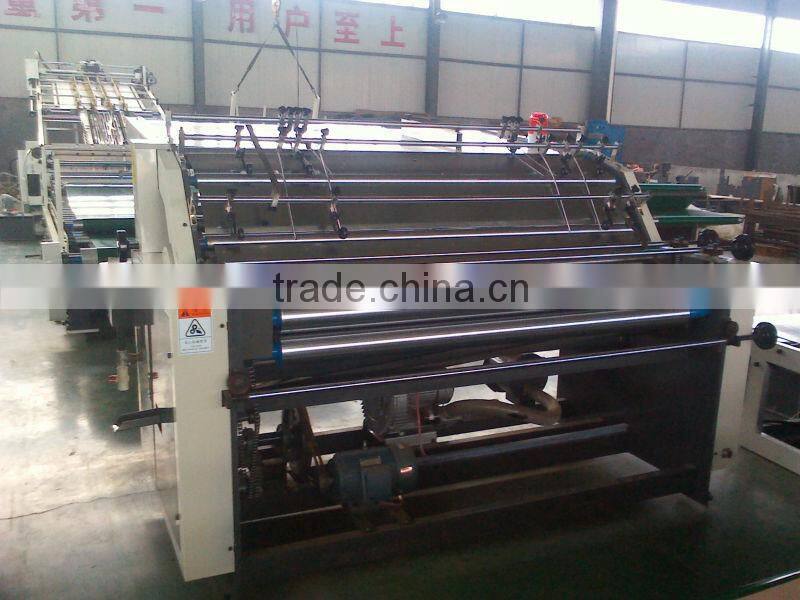

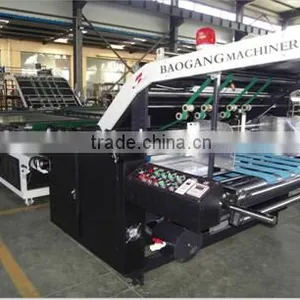

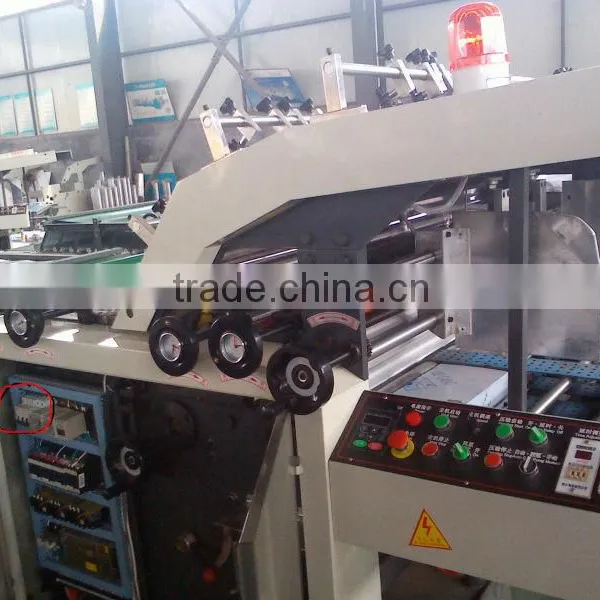

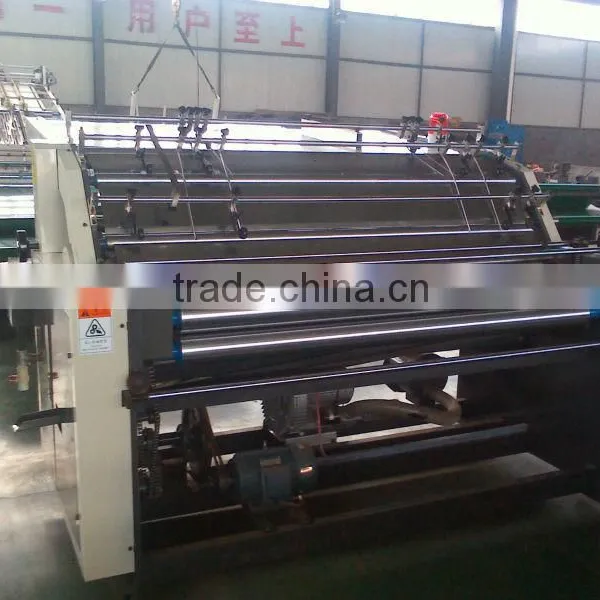

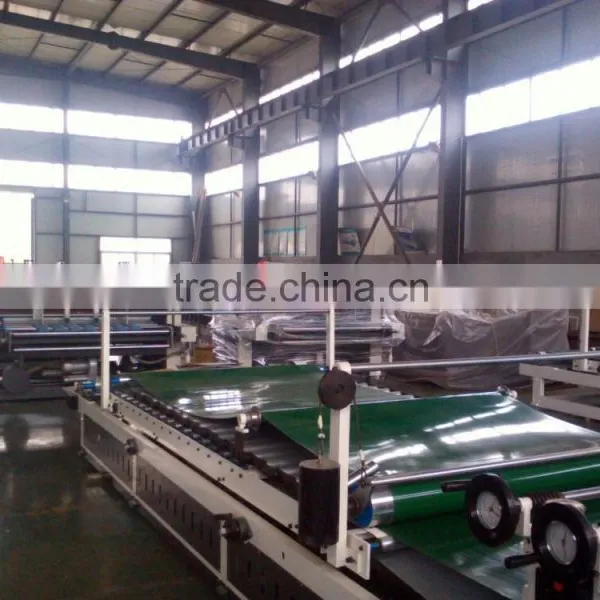

Help CenterSemi-automatic Flute Laminating Machine
Related Products
-
BZJ-1300B Series of Semiautomatic LaminatorUS$ 9,200 - 50,000MOQ: 1 Set -
SFML-520 Semi-Automatic Laminating MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
BJZ-1300 Series of Semi Automatic Flute Laminator MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Semi Automatic Flute Laminator Machine/ Baogang MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Semi- Automatic Laminating MachineUS$ 9,200 - 50,000MOQ: 1 Set
DZF1300-E Type vacuum adsorb semiautomatic covering machine:
| Type | DZF-1300E |
| vering size | 1300mm×1100mm |
| vering size | 350mm×350mm |
| Machinery higheast speed | 0-90m/min |
| Electric machine power | 7kw |
| Area | 8m×1.98m |
| Packing size | 1.97m×2.0m×1.0m 4.58m×1.98m×1.52m |
| Weight | 4.5T |
FUNCTION AND CHARACTERISTICS:
* Automatic feeding bottom paper,front pushing face paper.It has easy shortcut for feeding paper,lower work intensity.
* Front orientation bottom paper never leading,suit iointing of paperboard to paperboard,paperboard to A,B,C,D,E style corrugating cardboard.
* Jointing of bottom paper to face paper can fore-and-aft adjustment easy opposite joint.
* Feeding glue system are automatic control by liquid relay,thickness of sub can adjust equality glue,lower glue cost.
* Electric machine adopt nonpolar shift,electromagnetism clutch adopt without touch point relay,journey position adopt photoelectricity switch detect,electron automatic count and empty sheet photoelectricity automatic control.
* Traits: high joint precision,finished products after jointing have paper face unknit,margin tidiness,high intensity,good rigidity etc .
* High electric compartment technique content,have automatic counl function.
* Whole structure compact,handsome appearance,high work efficiency.
