12port Fiber Optic Patch panel

Carton packaging,Customer requirements

Specifications

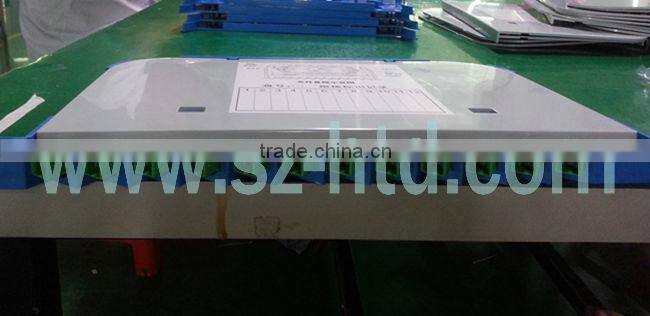

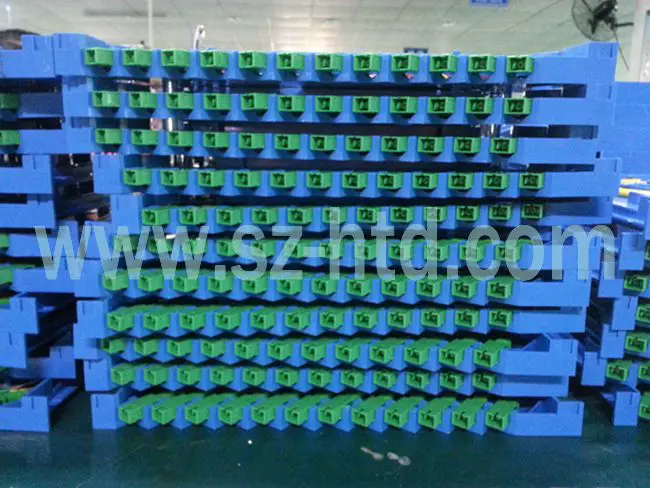

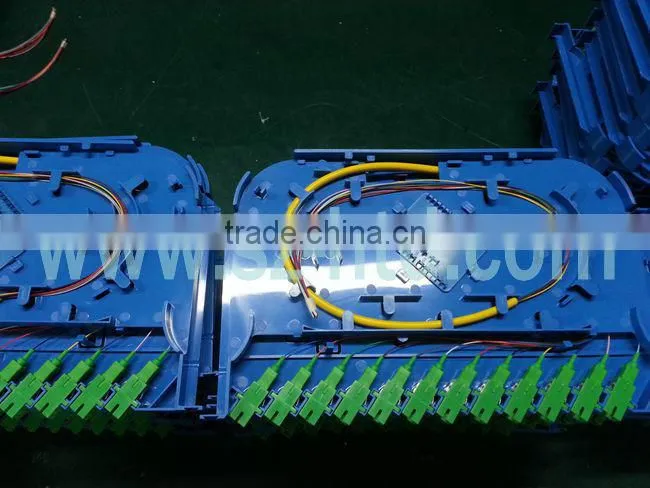

12port Fiber Optic Patch Panel

Description

fiber optic patch panel series are designed to sliding structure. They are all made of cold-rolled steel with electrostatic spraying. They are easy to operate for revolving structure,rack mount. These boxes are suitable for rack dustproof installation and can be widely used in distribution and end connection of indoor cables. They are compatible for FC, SC, ST, LC adapters. It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. Its front mark on the plates is easy for identification and operation.

Fetures

1.All the technical index reach to YD/T925-1997 Standard

2.Made by super cold-rolled steel

3.Wonderful static sprayed outlook

4.Capacity: 12 cores, 24 cores, 36 cores, 48 cores, 96 cores.
5.Draw able trays inside changeable
6.various panel plates to fit different adapter interface

Classification

Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

1.capacity: 12,24,32,48,64,72,96 splices

2.19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.

3.Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc

4,Suitable for ribbon and bunchy fiber cable

Application

1.LAN/WAN
2.CATV

3.FTTH

4.Telecommunications subscriber loop

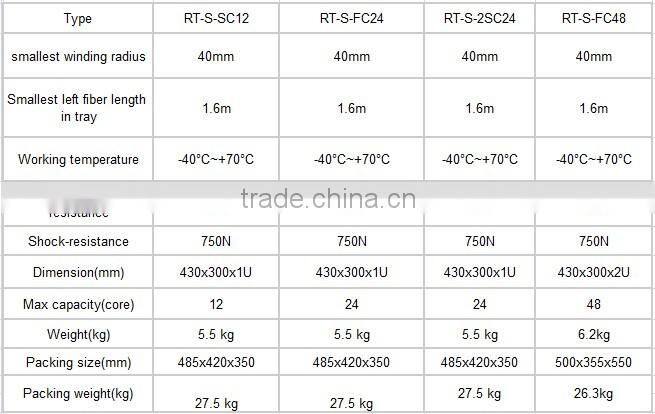

Performance Index

Order Guide
