Place of Origin Guangdong, China
Brand Name HTD
Model Number FC/APC-FC/UPC

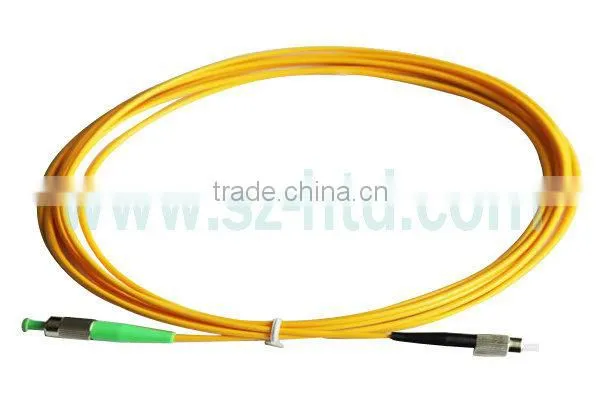

FTTH jumper FC/APC-FC/UPC SM Simplex 2.0mm 3M



1)Specification
Fiber optic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price

2)Applications
1. Telecommunications
2. Local Area Network (LAN)
3. Fiber to the home (FTTH)
4. Optical patch panels
5. Testing Instruments
6. CATV

3)Feature
1.Fiber Optic Cables are 100-percent tested for quality
2.Offers the optimal solution for high-speed data transmission
3.100% tested for reliability and performance

4)Parameters
Single mode (9/125)
Max Insertion Loss: PC: 0.3dB APC: 0.2dB
Minimum Return Loss: PC: 50dB APC: 60dB
Max Attenuation: 1310nm: 0.4dB/km 1550nm: 0.22dB/km

Multi mode(50/125, 62.5/125, OM3)
Max Insertion Loss: 0.5dB
Minimum Return Loss: 25dB
Max Attenuation: 62.5/125um: 0.7dB/km 50/125um: 2.3dB/km 10G 50/125um: 2.5dB/km
Operating temperature: -40 to +75
Storage temperature: -40° C ~ +85° C

5)Order Information
1.Cable Material: PVC, LSZH (LSOH), OFNR
2.Ferrule: Zirconia Ceramic
3.Cable Diameter: 3.0mm, 2.0mm, 0.9mm
4.Fiber Type: 9/125um, 50/125um, 62.5/125um, 10G OM3(50/125um)
5.Polishing: PC, UPC,APC



6)Performance Index

Parameter Unit FC, SC, LC/ fiber optic patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤ 0.3 ≤ 0.2 ≤ 0.3 ≤ 0.2 ≤ 0.3 ≤ 0.2 ≤ 0.2 ≤ 0.3 ≤ 0.2 ≤ 0.2 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 45 ≥ 50 ≥ 60 ≥ 30 ≥ 45 ≥ 50 ≥ 30 ≥ 45 ≥ 50 ≥ 35 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1310, 1550 1310, 1550 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature ° C -40~75 -40~75 -40~75 -40~75
Storage temperature ° C -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9
