Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine

Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-1
Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-2
Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-3
Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-4
Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-5
Automatic Hi-Speed Cardboard Folder Gluer /Folding Gluing Machine photo-6
US$ 21,487 - 26,446 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food
Packaging Type:
Cartons, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity, Food
Packaging Type Cartons, Film
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power about 5.5KW
Place of Origin Hebei, China
Brand Name XINHUA
Model Number YL
Weight 300kg
Dimension(L*W*H) Machine Model
Certification CE and ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

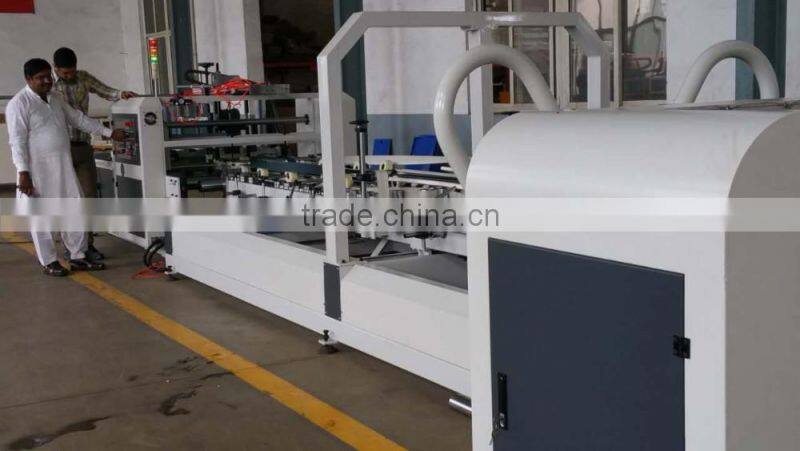

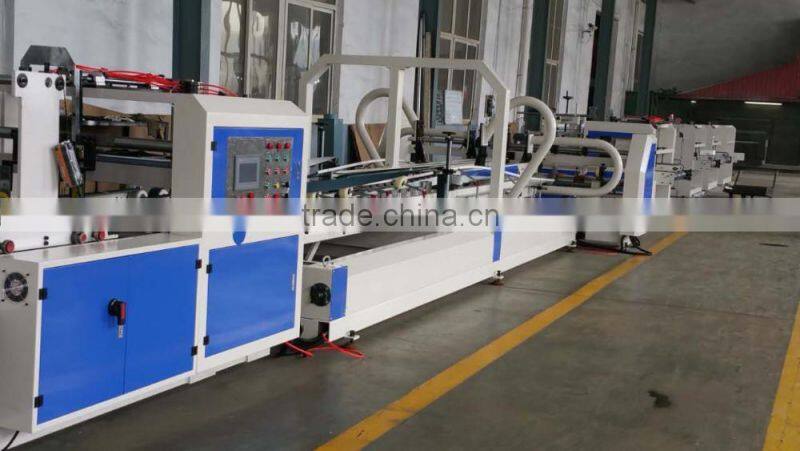

Automatic carton box corrugated cardboard folder and gluer machine



Please Contact me to get video , quotation and more information.










Main products our group manufactures and supplies include semiautomatic and automatic laminators, semiautomatic and automatic die cutters, corrugation paperboard production lines, single facers, printer slotter and die cutters, automatic folder gluer, automatic stitching machines, starch glue powder, flat stitching wires, papers, etc.







Till now, we are cooperating with overseas customers from over twenty countries. And our products have earned good reputation from our customers.







Our goal: try our best to meet the requirements of the printing / packaging companies, bring them much more benefits and reduce their running cost, offer them the optimal solutions in the form of machines, materials, services, etc.







Machine parts

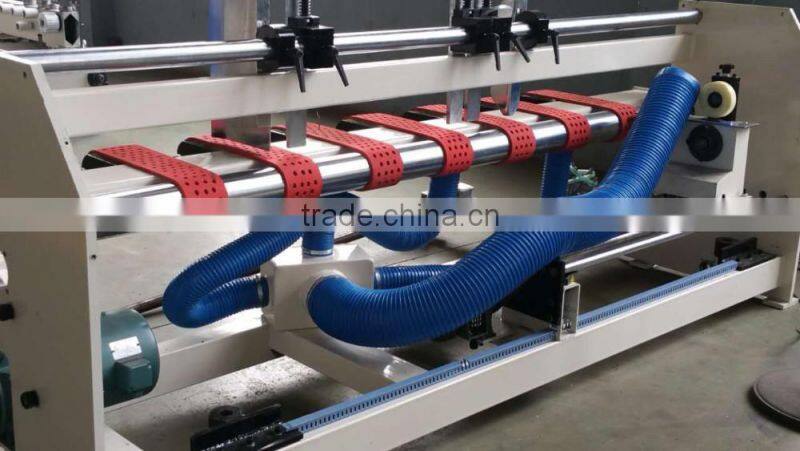

A.feeding section



1.suction belt front edge feeding, accurate and reliable;



2.high quality electromagnetic clutch and brake system, and this section can be controlled along, easy operation;



3.the height of the pressing wheel can be adjusted; suitable for 2-10mm thickness of carton board;



ing action with folding section, speed is adjusted by VFD, feeding speed: 0-150 sheet/min;



5.the positions of the front baffle and the feeding belts can be adjusted;

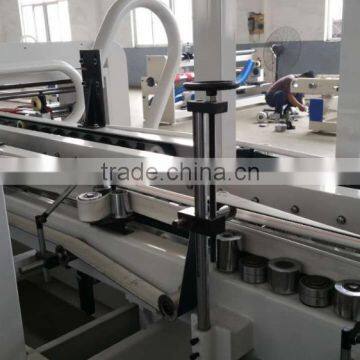

B.Gluing and folding section



1. the main motor is VFD speed adjustment; without noise, flexible speed adjustment, stability;



2. imported transportation belts;



3. stainless steel glue wheel;



4. there are paperboard and creasing correction devices;



5. paperboard specification: max. 1200X2400mm, min. 300X800mm;



6. high advanced edge alignment device, servo motor drive, PLC control, having patent right;







C.Count and ejector

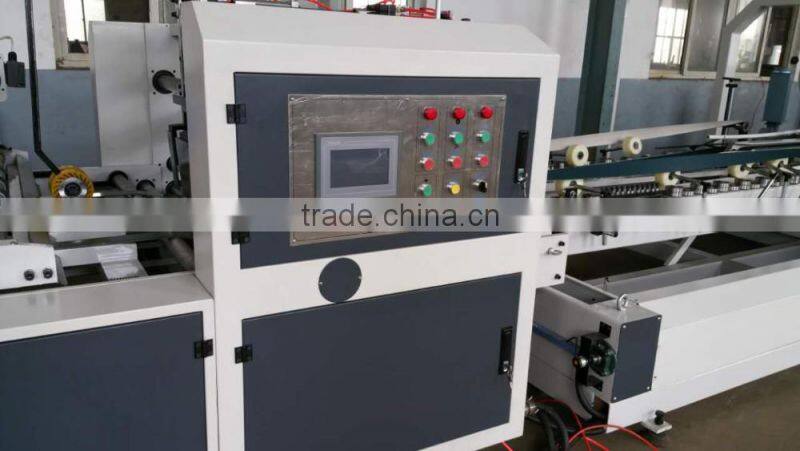

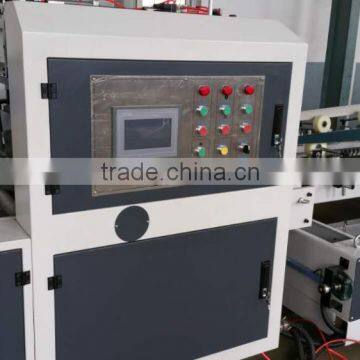

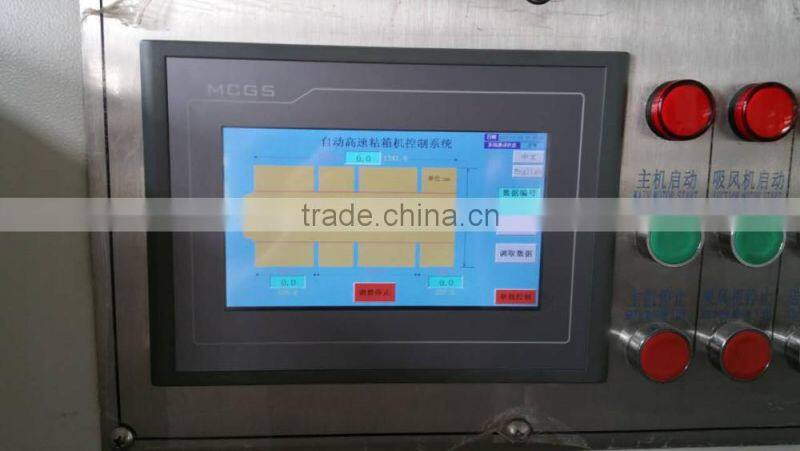

1. PLC and touch screen digital control, can input parameters without stopping the machine; automatic counting and stacking;



2. having stacking ordering function;



3. pneumatic counting and stacking;



4. carton delivered by bottom belt and top synchronous pressing belt; pile height: 8-25 pcs of carton sheets;



5. separate VFD stacking speed adjusting 0-140m/min







D. Other parameters







type 2400 2600 2800
MAX size 1200*2400mm 1400*2600mm 1400*2800mm
MIN size 300*800mm 300*800mm 300*800mm
Install Area 3500*14000mm 4000*15000mm 4200*16000mm
power 11kw 12kw 12kw











Remark:can make the machine by the user's requirement
