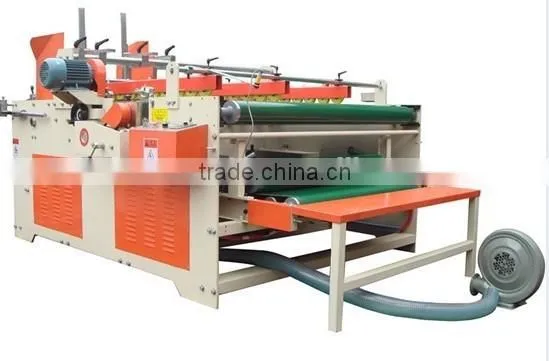

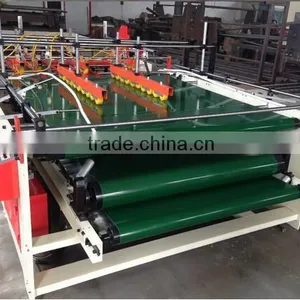

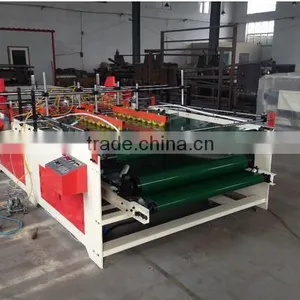

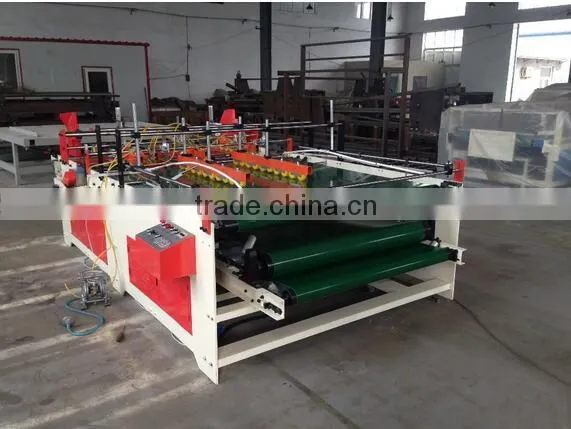

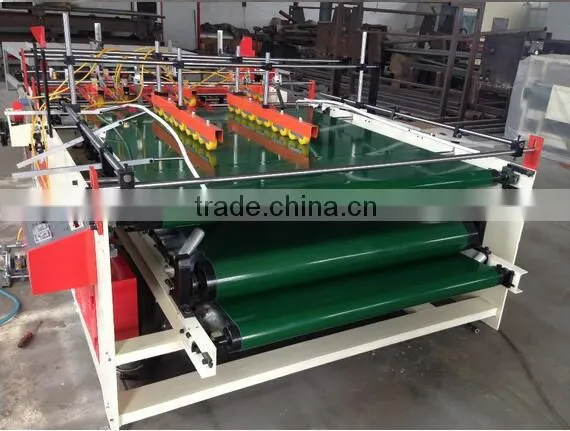

corrugated carton box making machine semi auto folder gluer
(Combined pressure Model)
Product features:
cover an area of small, Saving Artificial,low power consumption,glue fast and accurate, high-tech, Lower Cost, Yield High,Not only Improve the production efficiency and product quality, but also reduced the enterprise cost of production.
Sticky box sample:
Up and Bottom cover Series carton, Hook bottom Series carton, attaching veneer Series Carton, Put cover and Button bottom Series Carton and so on, Suitable for producing all kinds of corrugated cardboard box, Color box and so on.
According customer need.
The machine can install two glue head as the customer need. Meanwhile. measurement can be made according to the customer need.
Detail information
QF-AFG Series Semi-auto Folder Gluer(Combined pressure Model) is the latest exploit .According to the small order of the user,it has a small volume and cover an area of small. Easy operation without having experienced,Suitable for transform small batch products, Applicable range is very wide, Ordinary carton,Heterogeneous shape can be glued.
if you install automatic spray adhesive device, Hook bottom boxes,Up and Bottom cover carton can be glued. Save glue, Glue dosage only about one-third of manual glue: Saving Artificial,
Max Mechanical speed is 56m/min, Efficiency is higher 4 times than manual operation; Adhesive is strong,Tidy not leak adhesive, Light membrane or Plastic coated of Sticky mouth section can be polished and removed by Two-headed burnish implement,Improve the glue adhesive,Solve the cartons are easy to opening glue problem in some seasons, in this machine ,folding carton is manual, Improve the work efficiency meanwhile correct wrong indentation line.
Specifications
Model |
1500 |
1800 |
Voltage |
3-380VAC |
3-380VAC |
HZ |
50/60 |
50/60 |
Power |
3.2KW |
3.2KW |
Current |
6.3A |
7A |
Weight |
1.0T |
1.3T |
Overall size |
2200*1900*1300mm |
2200*2400*1300mm |
Max.Size of box |
1500*1100mm |
1800*1100mm |
Min.Size of box |
200*260mm |
200*260mm |
Advantage of machine
The machine has an huge advantage over other machine, you needn’t skilled labor,anyone can operate this machine ,The motor and electrical equipment adopt name brand, automatic counting, it can overall stretch out and draw back synchronously, High efficiency ,it’s convenient to operate it, White latex can be used, Reduced the cost, Economic efficiency is higher.
The machine adopts PLC controller computer programming,Digital operation,Touch screen input data,You needn’t stop the machine when you change data and speed, The whole machine automatic feeding paper,automatic folding,automatic counting,automatic stacking, The speed of sticky box up to 150 sheet/min, Max speed up to 220 sheet/min.
