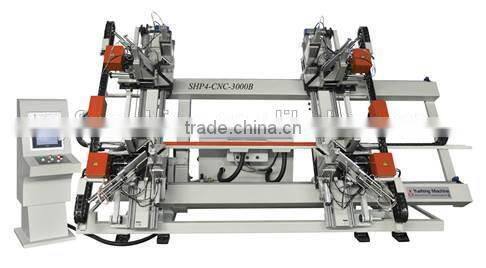

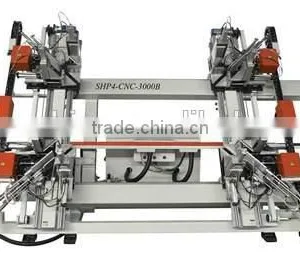

Help CenterPvc&upvc Windows Doors Machine/CNC Vertical Full Automatic Four Point Welding Machine
Related Products
-
Window Frame Making Machine,Four- Corner Vertical Welding Machine,PVC Window Making MachineUS$ 17,205 - 19,280MOQ: 1 Set -
Aluminum Ngle Mitre SawUS$ 1,082 - 1,213MOQ: 1 Set
-
Aluminum Mulion SawUS$ 1,740 - 1,950MOQ: 1 Set
-
Aluminum Windows Cutting Machine V-notch SawUS$ 802 - 900MOQ: 1 Set
-
Glass Bead Processing Glazing Bead SawUS$ 850 - 953MOQ: 1 Set
Jinan Yuefeng Machinery Co., Ltd., founded in 1983, specializes in developing and manufacturing PVC window machines, aluminum window machines, curtain wall machines, and insulating glass machines. We are the foremost pioneer in the window & door industry.
Yuefeng has a fully equipped machining center and highly qualified technicians. Our years of experience and constant technical innovation have resulted in high quality machines. Our machines are capable of meeting a variety of production needs. Each project is handled uniquely and is customized according to each customer's individual situation. We work closely with each customer to find the best possible solution. Our customers are kept satisfied over the past 25 years.
Yuefeng aims to further enlarge our customer portfolio by using uncompromising quality in our products and by providing outstanding service around the world.
Automatic welding head positioning.
1.The machine heads automatically back to the original position, easy operation.
2. Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
3. Size tolerance compensation is available to increase welding precision.
4. Common profile fixture along with the machine can meet various height profiles' processing
requirement.
5. The length located by ball screw makes high accuracy.
6. Back plates are convenient to change, when connecting joints, the two clamping boards
feed symmetrically results parallel welding, increasing the welding strength.
7.Imported computer control system, easy operation and high stability.
Packing details: wodden case or according your request
Delivery detail: 15 days after receiving down payment
Model |
SHP4-CNC-3000B |
Input voltage |
380V 50Hz |
Input power |
10Kw |
Air pressure |
0.6~0.8MPa |
Air consumption |
200L/min |
Welding height |
25~150mm |
Welding width |
≤140mm |
Welding range |
400×400~1800×3000mm |
Overall dimension |
4600×2000×2600mm |
