corrugated carton box making machine

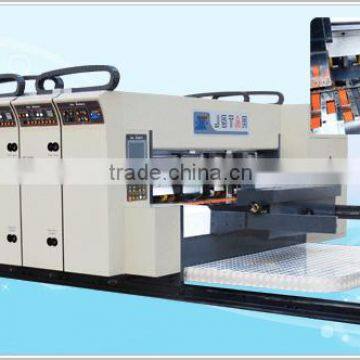

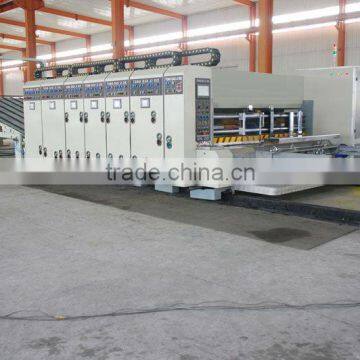

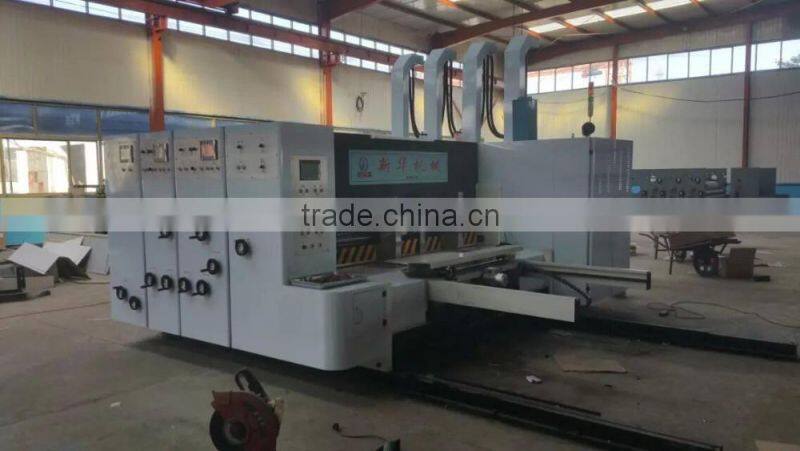

Lead edge feeding high speed multi-color flexo printing slotting rotary die cutter
Technical parameter:
Model |
Unit |
2400 |
Diameter of roller |
mm |
Φ410 |
Max.Feeding size |
mm |
1270*2600 |
Max.Printing size |
mm |
1200*2400 |
Paperboard thickness |
mm |
3-12 |
|
Slotting distance (Obverse knife) |
mm |
260*60*260*60 |
|
Slotting distance (reverse knife) |
mm |
160*160*160*160 |
Main motor power |
KW |
27.5 |
Max. Speed |
Sheets/min |
150 |
Working speed |
Sheets/min |
120 |
Whole machine introduction:
1 The whole machine is designed according to high specification .it is based on human and machine consistent principle , it is easy operation and convenient maintain and long life . It is a cost-effective product with multi-protect function
2 Make machine and human conversation by touch screen and retain electrical control system . It is return-zero automatically and reset automatically and store order
3 Human control machine by computer .PLC controller . Frequency inverter all choose famous brand from all over the world
4 Main driving gear material adopts excellent alloy steel (20CrMnTi)processing , by many ways process to be a shaped . Hardness of Gear surface after fine grinding and high frequency quenching can up to HRC-60 to ensure transmission perfectly for a long time
5 All spare parts like rollers and shafts is heavy-matched test by static and dynamic balance . Ensure stable and reliable when high speed working . Roller surface is hard chrome plating protective layer
6 All rollers adopts keyless connect to avoid gap from transmission connection and keep good printing chromatograph
7 Transmission lubricating system adopts spray splash-avoiding advice and cycling automatically
8 Vacuum adsorption feeding to avoid feeding roller wheel damage pattern on printing plate and ensure exact accurate overprint
9 You can choose sealed chamber with double knife system

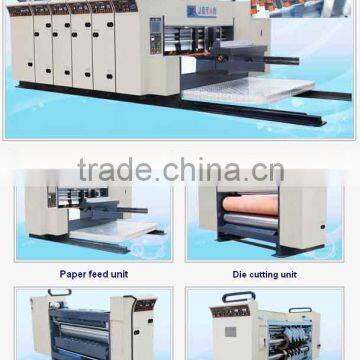

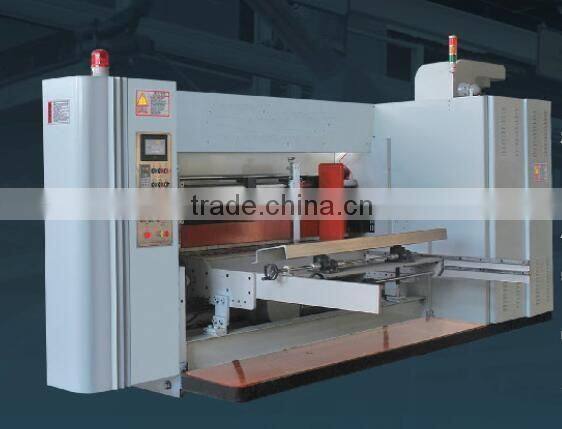

Lead edge feeding part:
1 Lead edge feeding system , easy operation and accurate
2 7.5kw high pressure centrifugal ,frequency converter control blower pressure to ensure feeding warp cardboard exactly
3 Position of Right and left side apron is adjusted by electric with screw drive
4 Front apron lower and upper gap is sync adjustment
5 Skip feeding device , you can choose this as your request to ensure large size cardboard can be processed
6 Install 7.5 inch touch screen and can show productivity number and speed and also to set speed
7 Slotting die-cutting part with chain control switch and it can realize stop or start feeding

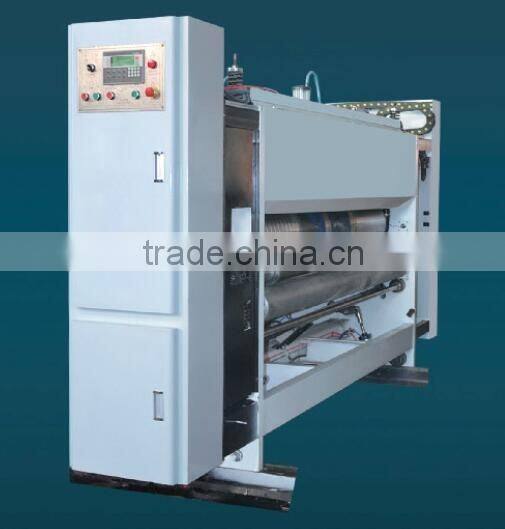

Printing part:
1 Phase 360°electrical adjustment (planetary gear )
2 Roller axial position is adjusted electrically and manually , left and right movement 10mm
3 Excellent metal anilox roller made by professional manufacturer
4 Rubber roller made by professional manufacturer and ensure ink quality
5 Supply ink cycling pneumatically
6 You can choose ceramic roller
7 Whole roller with hang lath which is standard

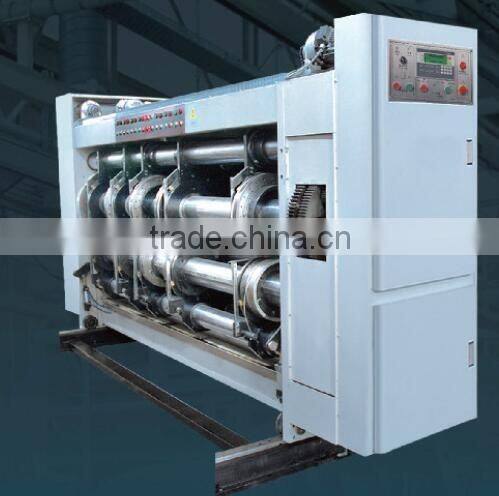

Slotting part:
1 Phase 360°adjustment electrically (planetary gear ),keyless connection
2 Adjust box height electrically and inside gear adjustment structure
3 Polyurethane pre-pressing wheel to ensure cardboard in good situation
4 Length and width of box is adjusted electrically sync adjustment
5 You can choose positive and negative knife
6 With handle attachment device and order management function

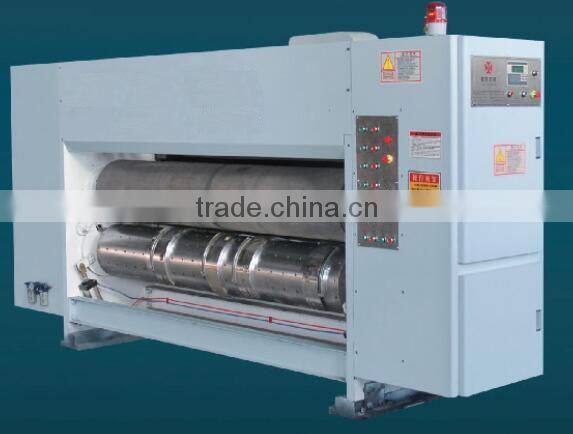

Die cutting part:
1 Axial position cycling moving automatically
2 Choose excellent durable rubber imported from Taiwan
3 With repair-auto rubber device
4 Track and compensate after lower and upper roller repair
5 Slotting slitting knife is special designed and installed on special fixtures , four blade can sync adjust box height . Load and install is convenient and it can replace rotary slotting machine . Blade incision is smooth
6 Die-cutting roller lift pneumatically and make rubber good when idling and phase adjustment to save cost
7 Rubber shaft axial moving 40mm automatically . Creasing not repeat and improve rubber using life
8 Rubber shaft with repair device auto and can repair 3-4 times

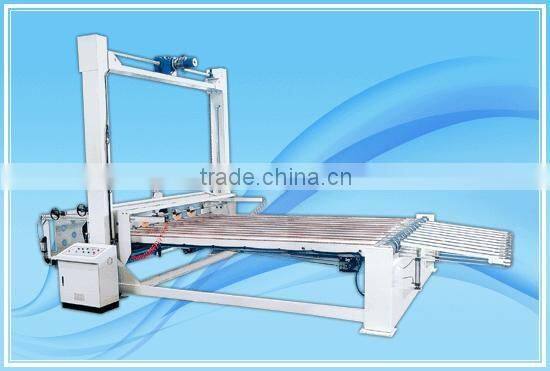

1 Receiving arm can be manual or auto operation , it is with insurance system to avoid receiving arm fall down suddenly that make worker safe
2 Bed desk lift by strong chain driving
3 Stacking height is 1600mm 1800mm 2000mm
4 Adjust bed table tilt height as stacking height , lifting motor , brake function , bed table can keep fixed position
5 Paper-lifting system pneumatically , when cardboard stacking up to desire height , paper-receiving tray is open automatically , tray seat hold cardboard
6 Wrinkle belt to avoid cardboard glissade
