Work Holding High Power Electronically Controlled Permanent Magnetic Chuck Quality Choice

              Workholding Electronically Controlled Permanent Magnetic Chuck


Magnetic Chuck Features

• magnetic power over 100 MT/Sqm.
• machine 5-sides easily
• no workpiece distortion
• electro permanent operation
• use on pallet or bed

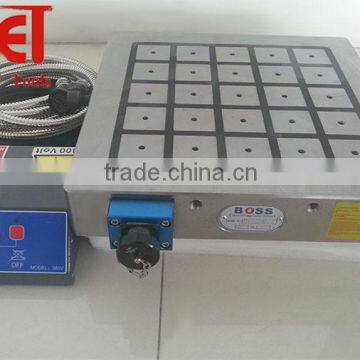

High power, electronically-switched permanent magnet chuck

The Power Matrix chuck consists of a magnetic grid made up of electronically-switched square pole permanent magnets.

"South" poles surround each "north" pole, providing an equal resistance to bi-directional forces.

Maximum holding forces on material from 12mm thick and above.

High Quality, Low Maintenance

• Completely sealed with no moving parts
• High impact epoxy resin and steel magnetic working surface

Benefits of the System

• Uniform Clamping
• Lack of vibration during cutting resulting in
• Greater accuracy
• Longer tool life
• Increased federates
• Access to 5 sides of the workpiece without obstruction
• Non-stop machining
• Reduced programming time
• Quick component clamping and release
• No bespoke fixturing
• Maximum safety - fail safe operation
• Energy saving - No power is required or used during the work holding / machining phases
• No heat generation - no top plate deformation
• No loss of magnetic power over time

Application Examples

      Ganged setups machined together                    Plunge hold drilling                         Workstops hold and position stock

             Large part machining                                     Chamber cutting                         Using part nests to hold thin stock

Factory

Equipment

Q & A:

1. Q: How long have you done in this industry?

   A: We have been in the line of producing CNC Cutting Tools over 8 years.

2. Q: How do I pay for my purchase?

    A: You can pay for the order by L/C, D/A, D/P, T/T, Western Union, MoneyGram or Escrow etc.

3. Q: How is the delivery?

    A: We usually deliver the products by the courier if the weight is light, otherwise by sea or by air.

4. Q: Do you accept trial order?

    A: Of course we do. We will provide our very competitive price with the excellent quality.

5.  Q: Can we get a discount if our ordered quantity is big enough?

     A: Yes, definitely right. We can offer you our best price and will give you a discount if your ordered quantity is big enough.
