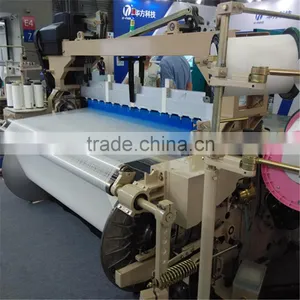

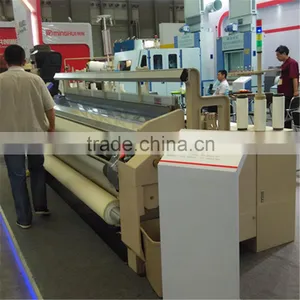

Polyester yarn chinese waterjet looms for weaving / reeds
Qingdao Yisida machinery manufacturing Co. Ltd. was established in 1998( formerly Qingdao Jingfang), it is located in Huangdao haibin industrial park,Qingdao city China. It takes up 54000 square meters as standard producing base, nearly 300 employees working here.Yisida Co. owns advanced dusting assembly line,automatic spray-paint line,independent surface preparation processing workshop,and also owns laser cutting workshop and nearly 80 sets of advanced machine tools including advanced CNC numerical control centers.
Yisida co. is always engaging in the development and production of textile machinery,including water jet loom,air jet loom,carding machines and blowing-carding feeder,has a proud annual output value of over 30 million dollar. The products are sold in Turkey,Egypt,Algeria,India,Southeast Asia etc. with good honour.We have formed a system of research and development,processing,assembly,test running,after-sale service. The advanced and strong equipments ensure our company with high efficiency and quality.
Yisida co. is branch of Tengsheng group co. (located in Shuyang Jiangsu province), the group co. is the State high-tech enterprises,main business are textile machinery ,textile weaving, chemical fiber, dyeing business,annual sales of more than 120 million dollar, his strong group background also meets the multi-level needs of many partners.
We always do our best to produce the most values for customers . Yisida is not only machine,but also art of weaving.Let's witness together the success of our machine and your business!
ITEM |
JW918,JW408,JW608 |
||
Crank Shedding |
Dobby Shedding |
||
| Reed Space
|
170,190,210,230, 250,280,320,340,350 | ||
| Useful Reed Space | Nominal Reed Space(0-50 or 80cm) | ||
| Filling Selection | 1 Color:1 Nozzle,1 Pump | ||
| 2 Color:2 Nozzle,1 Pump or 2 Nozzle,2 Pump | |||
| Driving | Start | Rush Start Motor | |
| Motor Capatity | 1.8kw,2.2kw,3.0kw,3.6kw,4.5kw,5.5kw | ||
| Brake | Direct Stop Mechanism by an Electro-magnetic brake | ||
| Beating | Beating Motion | Crank Beating,Multiple Slay Sword System | |
| Beating Stroke | 66mm,76mm,86mm,96mm,105mm | ||
| Filling Insertion | Pump System | Plunger Type Spring Pressure System | |
| Nozzle | Ring Nozzle Stabilizer System(Stainless Needle or Ceramic Need) | ||
| Measuring and weft storage unit | 1 Color:Mechanical Storage Drum Pooling | ||
| 2 or 3 Color:Electrical Rotary Drum Pooling | |||
| Feeler | Optical Feeler,Using Optical Cable | ||
| Shedding | Plain Shedding | Crank-type Shedding for 4 Heald Frames or 6 Heald Frames | |
| Cambox Shedding | Top-Mounted Negative Cambox Shedding for Max 12 Heald Frames | ||
| Dobby Shedding | TOP-Mounted Negative Dobby For 16 Heald Frames | ||
| TOP-Mounted Positive Dobby For 16 Heald Frames | |||
| Max Heald Frames Number:16 | |||
| Let-Off | Type | Mechanical Let-Off Motion | |
| Electronic Let-Off Positive Easing Motion | |||
| Beam Flange Dia. | Standard:800mm(914mm Need or 1000mm Need) | ||
| Take-Up | Take-Up Type | Mechanical Take-Up Motion | |
| Electronic Take-Up Motion | |||
| Cloth Wind-Up Diameter | 520mm | ||
| Woven Length Counter | Program Console Counter | ||
| Cloth Passage | F-Type or S-Type(standard,reinforced) | ||
| Water Suction | Slit Tube Suction System(Bower 400W,750W) | ||
| Selvage Formation | Twisting By Planetary Gear System | ||
| Yarn Package Stand | Floor Mounted,Horizontal Stand for 2 Packages(1 Color) | ||
| Floor Mounted,Horizontal Stand for 4 Packages(2-4 Color) | |||
| Catch Cord | Spindle Twisting System | ||
| Cutter | Mechanical Cutter | ||
| Temple | Top Mounted,2-Barrel Type With 2 Rings Each | ||
JW918-340S double warp beam water jet loom is the first domestic innovation and R & D model innovated by yisida company, special enhancement of architecture design, configuration of electronic dobby and electric let-off and take-up system, leading double heavy fabric trend in Chinese textile market in recent years .
JW608 type water jet loom is an advanced design with the new technology,fully improved and strengthen in let-off,take-up,shedding,driving and structure.it is under the structure of tough wallboard and solid beam with middle support,beating structure in optimized design is working with supporting middle device for high-density fabric,it runs with high speed and satble quality,improves the competitive power for customers’ fabric.
Processing Corner
CNC Workshop
Assembly Line
(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer holding our own International Trade Department, for that can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you
our exposition and relative information to promote a face-to-face meeting if you'd like to.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
Welcome to visit our factory.
