FISHNET MAKING MACHINE

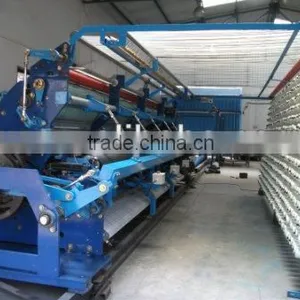

FISHNET MAKING MACHINE thumbnail-1

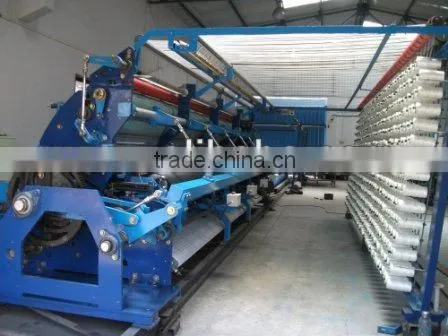

FISHNET MAKING MACHINE photo-1
Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
India
Brand Name:
Model Mint
Condition:
New
Contact Supplier Request Quote Chat Now
Marine Fabrics
Payment & Shipping
Payment Methods:
Port of Shipment:
JNPT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin India
Brand Name Model Mint
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

HIGH SPEED DOUBLE KNOT NET MAKING MACHINE

DOUBLE KNOT NET MAKING MACHINE OF 8MM ,9.5MM ,10MM ,11 MM,16MM PITCH.

MODELS AVAILABLE MODEL MINT AND MODEL HARPOON.

TYPE 9D 9E 9F 10C 10D 10E 11D/12D 15C 11E/12E 15D 11F/12F 15E 03C 31C 31C 05C
Model MINT MINT MINT MINT MINT MINT HARPOON HARPOON HARPOON HARPOON HARPOON HARPOON HARPOON HARPOON HARPOON HARPOON
PITCH (mm) 8 8 8 10 10 9.5 8 10 8 10 8 10 12.7 14.5 16 11
NUMBER OF SHUTTLES 412 512 605 312 412 512 412 312 512 412 612 512 330 330 312 305/405
SHUTTLE TYPE PPS PPS PPS PPS PPS PPS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS
DIAMETER OF SPOOLS (mm) 180 180 180 200 200 200 135/160 160 135/160 160 135/160 160 210 210 210 210
KNOT TYPE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE SINGLE
  ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK ROTARY HOOK PLATE TYPE
TWINE APPLICABLE
MONOFILAMENT (mm) 0.14-0.30 0.16-0.30 0.16-0.30 0.20-0.40 0.20-0.40 0.20-0.40 0.16-0.32 0.23-0.40 0.16-0.32 0.23-0.40 0.16-0.32 0.23-0.40 0.25 - 0.60 0.25 - 0.70 0.40 - 1 -
MULTIFILAMENT(DENIER/PLY) 210D/2- 210D/6 210D/2- 210D/6 210D/2- 210D/6 210D/3-210D/12 210D/3-210D/12 210D/3-210D/12 210D/2-210D/6 210D/3-210D/12 210D/2-210D/6 210D/3-210D/12 210D/2-210D/6 210D/3-210D/12 210D/9-210D/36 210D/9-210D/45 210D/9-210D/60 210D/9-210D/13
HDPE DIAMETER 0.25 MM 0.25 MM 0.25 MM 0.9 MM 0.9 MM 0.9 MM 0.25 MM 0.9 MM 0.25 MM 0.9 MM 0.25 MM 0.9MM 1.25MM 1.5MM 2MM 1.2MM
MESH SIZE
KNOT TO KNOT 9 to 75 9 to 75 9 to 75 10 to 100 10 to 100 10 to 100 9 to 100 10 to 100 9 to 100 10 to 100 9 to 100 10 to 100 17 to 150 17 to 150 17 to 150 9 to 100
STRETCHED 18 to 200 18 to 200 18 to 200 18 to 200 20 to 200 20 to 200 18 to 200 20 to 200 18 to 200 20 to 200 18 to 200 20 to 200 34 to 300 34 to 300 34 to 300 18 to 200
PRODUCTION SPEED (RPM) 30 25 22 25 25 25 20 20 20 20 20 20 20 20 20 20
MAIN DRIVING MOTOR (Kw) 2.2 2.2 3.7 2.2 2.2 3.7 2.2 2.2 2.2 2.2 3.75 3.75 3.75 3.75 3.75 2.2
DIMENSIONS WITH CREEL
LENGTH (mm) 5165 6065 6765 5165 6065 6765 5800 5800 6500 6500 7450 7450 7450 7450 7450 5800
WIDTH   (mm) 3850 3850 3850 3850 3850 3850 3600 3600 3600 3600 3600 3600 3600 3600 3600 3600
HEIGHT (mm) 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870 1870
