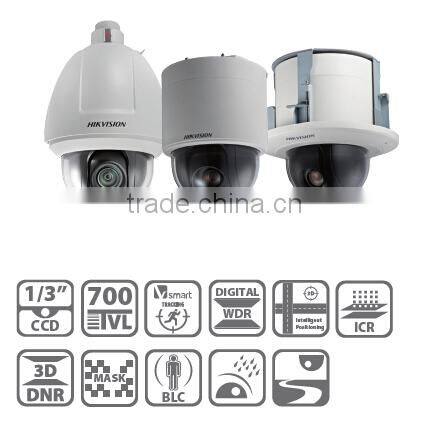

HIKVISION 700tvl analog PTZ camera, WDR camera, waterproof dome camera

• 1/3" SONY CCD

•  23x optical zoom

•  700TVL high resolution

•  3D DNR & D WDR smart trakcing

• True day / night  ip66

DS-2AF5264(N)-A(3)

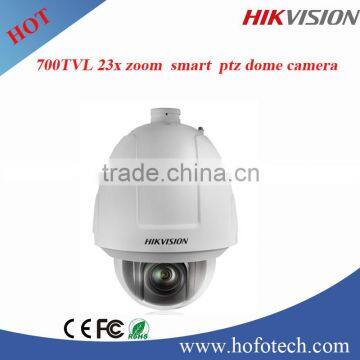

700TVL Analog PTZ Dome Camera 23X Optical Zoom

Camera

Image sensor

1/3” Sony Exview HAD-II CCD

Effective pixel

PAL: 976(H) ×582(V), NTSC: 976(H) ×494(V)

Horizontal Resolution

Color: 700TVL, B/W: 750TVL

Min. illumination

Color: 0.02Lux/(F1.6, AGC on), 0.0008Lux/(F1.6, AGC on, IRE×256)

B/W: 0.002Lux/(F1.6, AGC on), 0.00008Lux/(F1.6, AGC on, IRE×256)

White balance

Auto/Manual/ATW/Indoor/Outdoor

AGC

Auto/Manual

S / N Ratio

≥ 50dB

Shutter speed

PAL: 1/3-1/10,000s, NTSC: 1/4-1/10,000s

DNR

3D DNR

Backlight compensation

BLC

WDR

Digital WDR

Day & Night

IR Cut Filter

Digital zoom

16X

Privacy masking

8 privacy masks programmable, optional multiple colors and mosaics

Focus mode

Auto / Semiautomatic / Manual

Lens

Focal length

4-92mm, 23X

Zoom speed

Approx.4.0s(Optical Wide-Tele)

Angle of view

57.58-3.12 degree (Wide-Tele)

Min. working distance

10-1500mm(Wide-Tele)

Aperture range

F1.6-F3.7

Pan and Tilt

Smart tracking

Support

Pan/Tilt range

Pan: 360° endless; Tilt: -5°-90°(auto flip)

Pan/Tilt speed

Pan Manual Speed: 0.1°-300°/s, Pan Preset Speed: 540°/s

Tilt Manual Speed: 0.1°-240°/s, Tilt Preset Speed: 400°/s

Proportional zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of preset

255

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the total recording time not less than 10 minutes

Power-off memory

Support

Park action

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan

PTZ position display

Support

Password protection

Support

Preset freezing

Support

Zone scanning /display

Scanning within programmed zone, display zone title

Camera title

Programmable title display

Compass

Support, the north can be set

Scheduled task

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan/Day/Night

Alarm

Alarm input

2(7 alarm inputs optional)

Alarm output

2 relay outputs, alarm response actions configurable

Alarm action

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan/Relay output

Input / Output

Video output

1.0V[p-p]/75W, PAL/NTSC composite, BNC

General

RS-485 protocols

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power

-A: 24VAC, max.40W

-A3: 24VAC, max. 25W

Working temperature

-A: -30 ℃-65℃(-22℉-149℉)

-A3: -10 ℃-50℃(-22℉-149℉)

Humidity

90% or less

Protection level

IP66(outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

1K 10(optional)

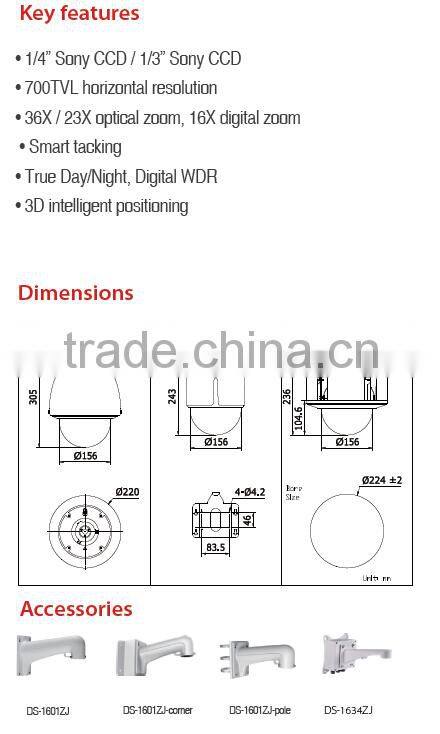

Dimensions

Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor)

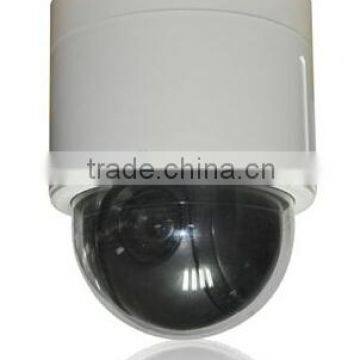

Φ183.4×243mm (Φ7.22”×9.56”)(Indoor)

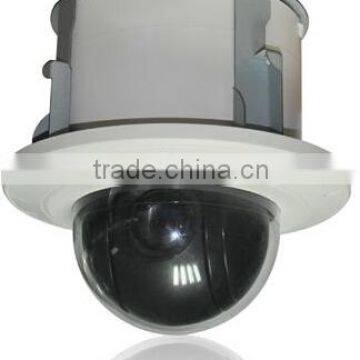

Φ245×236mm (Φ9.65”×9.29”)(In-ceiling)

Weight

Approx. 5kg(11.02lbs)
