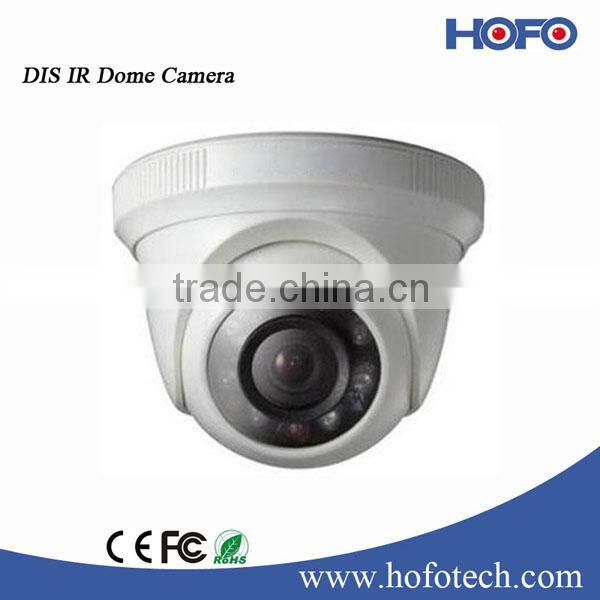

Hikvision 700TVL DIS Indoor IR Dome Camera

Name: Hikvision 700TVL DIS Indoor IR Dome Camera
Brand: Hikvision
SKU: 113029465
Availability: InStock

US$ 20 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Hikvision

Model Number:

HFAC-2A55P(N)-IRP

Yiwu Eastage Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Hikvision

Model Number HFAC-2A55P(N)-IRP

Type Analog Camera

Style Dome Camera

Sensor Other, DIS

Technology Infrared

Special Features Waterproof / Weatherproof

Key Features

Compact design

DIS

IR cut filter with auto switch

Min. illumination: 0.1 Lux @ F1.2 (0 Lux with IR)

Auto white balance,auto gain control, electronic shutter control and backlight compensation

Smart IR mode

Internal Synchronization

Advanced Engineering Design, High Reliability

Ingress Protection: IP66

Patent universal adjustable structure provides convenient adjustment and high reliability

Specifications

Model Parameter	HFAC-2A55P(N)-IRP
Model Parameter	700 TVL DIS IR Dome Camera (ICR & Weather-proof )
Camera
Image Sensor	1/3” DIS
Signal System	PAL/NTSC
Effective Pixels	976 (H) × 496 (V)
Min. Illumination	0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.4 Lux @ (F2.5, AGC ON), 0 Lux with IR
Shutter speed	PAL: 1/50 s to 1/600,000 s NTSC: 1/60 s to 1/600,000 s
Lens	3.6 mm @ F2.5 (2.8mm,6 mm optional)
Lens	Angle of view: 73.1° (3.6 mm)
Lens Mount	M12
Angle Adjustment	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Horizontal Resolution	700 TVL
Synchronization	Internal synchronization
Video Output	1Vp-p composite output (75 Ω/BNC)
S/N Ratio	More than 62 dB
General
Working Temperature/Humidity	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply	12 V DC ± 10%
Power Consumption	Max. 1.8W (Max. 4W with IR cut filter on)
Ingress Protection	IP66
IR Range	Approx. 10 to 20 meters

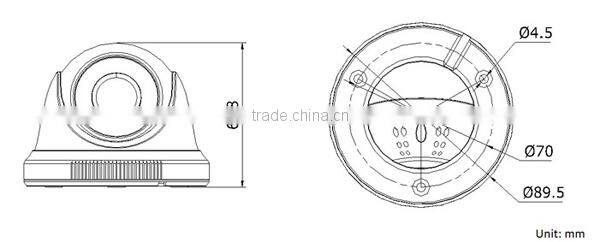

Dimensions	Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)
Weight	260 g (0.57 lbs)
