Help CenterHikvision 700TVL Sony Ccd Mini Size Analog Ptz Dome Camera
Related Products
-
Hikvison 24ch 960h Dvr, Hybrid Digital Video Recorder Support 2HDDUS$ 170 - 195MOQ: 1 Piece -
Hikvision 4ch Hybrid Dvr,original English Version DVR Can Connect With ip CameraUS$ 1 - 500MOQ: 1 Piece
-
Hikvision 4ch Standalone Dvr , Cctv Dvr DS-7304HWI-SHUS$ 260 - 300MOQ: 1 Piece
-
Hikvision 540TVL Analog PTZ Dome Camera 36X Optical ZoomUS$ 1 - 500MOQ: 1 Piece
-
HIKVISION 700TVL DIS Dome Analog Camera IP66US$ 35 - 50MOQ: 1 Piece
HOFO Will Be Your Best Partner
|
|
|
|
|
|
Model Parameter |

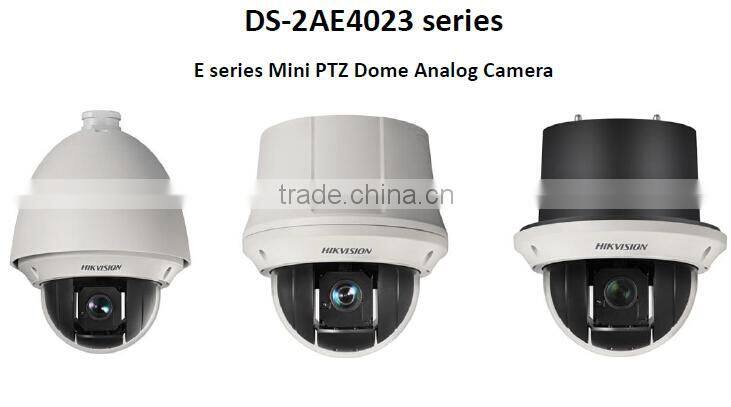

DS-2AE4023 series |
|

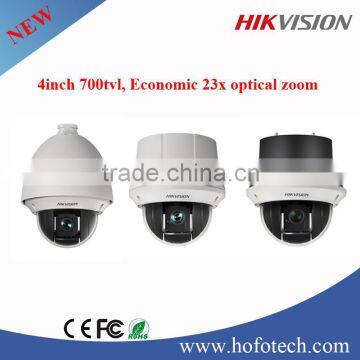

E series Mini PTZ Dome Analog Camera | ||
Camera |
Image Sensor |
1/3" CCD |
Effective Pixel |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
|
Horizontal Resolution |
700TVL |
|
Signal System |
PAL/NTSC |
|
Min. Illumination |
Color: 0.02Lux/ (F1.6 AGC ON) |
|
White Balance |
Auto/ATW/Indoor/Outdoor/One push |
|
AGC |
Auto / Manual |
|
S / N Ratio |
≥ 50dB |
|

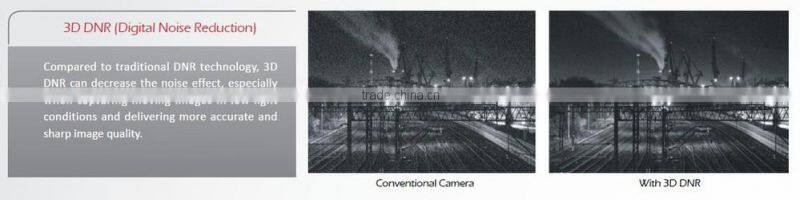

3D DNR |
Support |
|
Backlight Compensation |
Support |
|

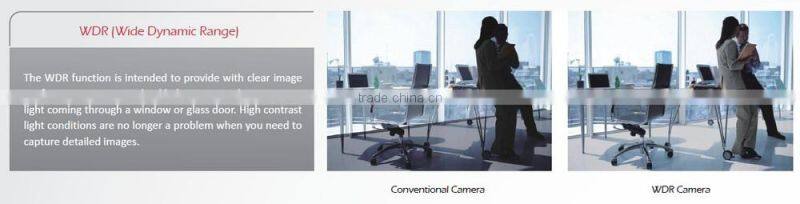

Digital WDR |
Support |
|
Shutter Time |
PAL: 1/1-1/10,000s NTSC: 1/1-1/10,000s |
|
Day & Night |
IR Cut Filter |
|
Digital Zoom |
16x |
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
Focus Model |
Auto / Semiautomatic / Manual |
|
Lens |
Focal Length |
4-92mm, 23X |
Zoom Speed |
Approx.3.0s(Optical Wide-Tele) |
|
Angle of View |
49-2.2 degree(Wide-Tele) |
|
Min. Working Distance |
10-1000mm (Wide-Tele) |
|
Aperture Range |
F1.6-F3.7 |
|
Pan and Tilt |
Pan Range |
360° endless |
Pan Speed |
Pan Manual Speed: 0.1° -160°/s, Pan Preset Speed: 160°/s |
|
Tilt Range |
0°-90°(Auto Mirror) |
|
Tilt Speed |
Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 120°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
256 |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
4 patterns, with the total recording time not less than 10 minutes |
|
Power-off Memory |
Support |
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
PTZ Position Display |
On / Off |
|
Freeze Frame |
Support |
|
Password Protection |
Support |
|
Zone Scanning/Display |
Scanning within programmed zone, display zone title |
|
Camera Title |
Programmable title display |
|
Compass |
Support , the north can be set |
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
RS-485 communication diagnosis |
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text |
|
Manchester code communication diagnosis |
Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen in special characters |
|
Input/ Output |
Monitor Output |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
General |
Menu Language |
English, Chinese |
RS-485 Protocols |
HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|
Power |
24VAC Outdoor: Max.18 W(heater: 6W) Indoor: Max.12W |
|
Working Temperature / Humidity |
-30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome ) 90% or less |
|
Protection Level |
IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|

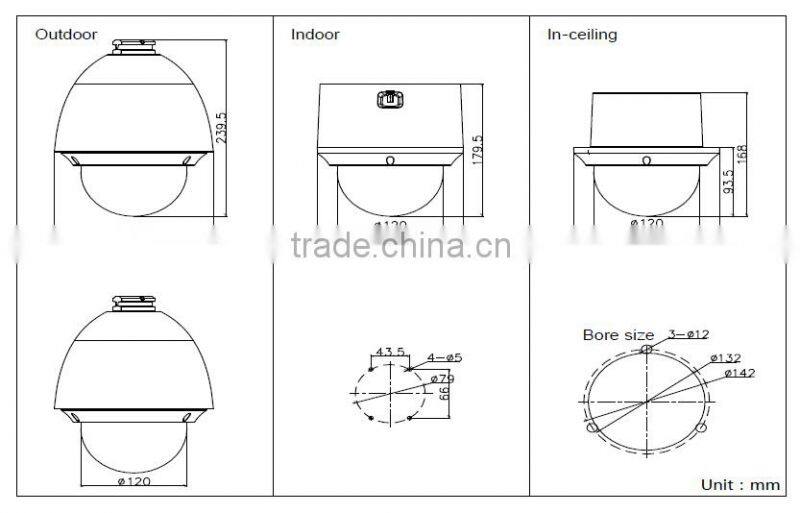

Dimension |
Φ179.4×239.5mm (Φ7.06”×9.43”)(Outdoor) Φ165×179.5mm(Φ6.50”×7.07”) (Indoor) Φ165×168mm(Φ6.50”×6.61”) (In-ceiling) |
|
Weight (approx.) |
2Kg (4.41Ibs) (Outdoor) 2Kg (4.41Ibs) (Indoor/In-ceiling) |
|
Mount Option (only suitable for outdoor dome) |
Long-arm wall mount: DS-1602ZJ; Long-arm pendant mount: DS-1662ZJ;Short-arm pendant mount: DS-1661ZJ; |
|
♦ Quality Control
1. All raw materials are carefully selected and inspected.
2. Advanced production equipment is used and routinely inspected and serviced.
3. All operators and employees are thoroughly trained.
4. All products have passed the European Union RoHS standard and are CE, FCC certified.
5. All products must pass strict inspection before delivery.
6. Professional logistics personnel are employed to control the damage during the physical distribution of products.
♦ Cost Control
1. Our factories have been accredited in terms of ISO9001, and our advanced management system increases efficiency and reduces costs.
2. Bulk purchasing has reduced our material cost, and massive production have lowed each product cost.
3. Advanced production equipment such as our SMT production line provides a highly efficient production rate.
4. Reduction of any unnecessary surplus of products by strict stock control reduces our warehousing costs.
♦ Strong Tech Support
1. Presale: product consultation and solution design can be provided.
2. Sale: spares parts can be provided at a certain discount. Delivery time is approximately two weeks. Please note that delivery times may vary depending on the destination and transportation method.
3. After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
4. We can also provide project designs, customized products, online training, in-person training, and OEM services.
