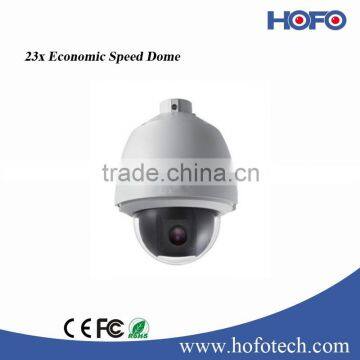

540TVL5 Inch High Speed Dome Camera,HIKVISION Analog PTZ Dome

540TVL5 Inch High Speed Dome Camera,HIKVISION Analog PTZ Dome thumbnail-1
540TVL5 Inch High Speed Dome Camera,HIKVISION Analog PTZ Dome photo-1
US$ 240 - 288 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hikvision
Model Number:
DS-2AE5154(N)-A
Contact Supplier Request Quote Chat Now
Yiwu Eastage Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Hikvision
Model Number DS-2AE5154(N)-A
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof



Product Description

 Key Features:

System function:

*1/4’’ SONY high performance CCD

*±0.1° Preset Accuracy

*Self-adaptive to HIKVISION, Pelco-P/D protocol

*3D intelligent positioning function

*Power-off memory function: restore PTZ & Lens status after reboot

*Built-in temperature sensor, with display of internal temperature

*IP66 standard (outdoor dome)

*Scheduled PTZ movement

Camera function:

*Auto focus, auto white balanceand auto/manual day & night switch

*Privacy masks programmable

PTZ function:

*360° endless pan range and -5°-90° tilt range

*300°/s Pan Preset Speed and 200°/s Tilt Preset Speed

*0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed

*255 presets programmable; preset image freezing capability

*8 patrols, up to 32 presets per patrol

*4 patterns, with the total recording time not less than 10 minutes

*Proportional zoom function

*Park action: auto call up of PTZ movement, after a defined time of inactivity



Specifications

Camera
Image Sensor: | 1/4" SONY CCD
Effective Pixels: | PAL:752(H)×582(V); NTSC:768(H)×494(V)
Horizontal Resolution: | Color: 540 TVL
B/W: 600 TVL
Signal System: | PAL/NTSC
Min.illumination: | Color: 0.1Lux@( F1.6,AGC ON)
B/W: 0.01Lux@( F1.6,AGC ON)
White Balance: | Auto / Manual / ATW / Indoor / Outdoor
AGC: | Auto/Manual
S/N Ratio: | ≥ 50dB
DNR: | 3D DNR
WDR: | 128x (on / off / auto)
Shutter time: | PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day&Night: | ICR
Digital Zoom: | 16x
Privacy Masking: | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 3.84-88.32mm, 23X
Zoom Speed: | Approx.3.0s(Optical Wide-Tele)
Angle of View: | 50.2-2.44degree(Wide-Tele)
Minimum Working Distance: | 10-1500mm (Wide-Tele)
Aperture Range: | F1.6
Pan & Tilt
Pan Range: | 360° endless
Pan Speed: | Pan Manual Speed: 0.1°-250°/s,
Pan Preset Speed: 300°/s
Tilt Range: | -5°~90° (Auto Flip )
Tilt Speed: | Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 256
Patrol: | 8 patrols, up to 32 presets per patrol
Pattern: | 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display: | ON/OFF
Compass: | Support , the north can be set
Scheduled Task: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
General
Menu Language: | English / Chinese
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply: | 24V AC
Power Consumption: | Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off)
Indoor dome: Max.12W
Working Temperature /Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
90% or less
Protection Level: | IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: | Various mounting modes option
Dimensions: | Φ220×305mm (Φ8.66”×12.00”)(Outdoor)
Φ183.4×243mm(Φ7.22”×9.56”) (Indoor)
Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)
Weight(approx.): | 5Kg (11.02Ibs)
Mount Option: | Long-arm wall mount: DS-1601ZJ;Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ







540TVL5 Inch High Speed Dome camera,HIKVISION Analog PTZ Dome540TVL5 Inch High Speed Dome camera,HIKVISION Analog PTZ Dome540TVL5 Inch High Speed Dome camera,HIKVISION Analog PTZ Dome540TVL5 Inch High Speed Dome camera,HIKVISION Analog PTZ Dome



If you are interested in our products, pls feel free to contact us.

We will do our best to service you.

Our aim: Best Quality, Superior Service!
