Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 Leds 1250 lm

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 Leds 1250 lm

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 Leds 1250 lm thumbnail-1
Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 Leds 1250 lm photo-1
US$ 10 - 20 MOQ: 50 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Starwire Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 12W
Lamp Luminous Flux(lm) 1150
Color Temperature(CCT) WW/NW/CW
Working Temperature(℃) -25, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, EMC, LVD
Emitting Color White
Place of Origin Guangdong, China
Brand Name SW
Model Number SW-F2835

Starwire LED Strip Professional Manufacture



1. OEM Strip Lights Series: SMD2835/SMD3528/SMD5050/SMD5630 high lighting output;

2. Color management: White lighting, RGB and RGBW,RGBW 4 chip in LED,WW&CW;

3. DIY Service: Aluminum profile, cotroller, driver, connector, wire and other full of parts.



Strictly color management:

1.) 2200/2500/2700/3000/4000/5000/6000K Available, 2.) keep color lighting consistence...





Product Description



1. Popular Type - SMD2835 Strip lights;



1. High lighting efficiency, 100-120lm/w.

2. More brightness than 3528, more competitive than 5050 strip.



Item No

                                    Description                Lumens



SMD2835-30leds



5m/roll / SMD2835 / 60pcs/m / 10mm PCB / 12W/m / DC12V

 1150lm
SMD2835-60leds



5m/roll / SMD2835 / 120pcs/m / 10mm PCB / 14W/m /DC12V

 1250lm
SMD2835-72leds



5m/roll / SMD2835 / 72pcs/m / 10mm PCB / 14W/m / DC12V



 1380lm



SMD2835-196leds

5m/roll / SMD2835 / 196pcs/m / 10mm PCB / 21W/m / DC12V

 2520lm
CRI/Lumen CRI>80 22-24lm; CRI>90 18-20lm
CCT 2200/2400/2500/3000/4000/5000/6000K
IP Rate IP20 Ruoban, IP65(Silicon), IP66(Silicon tube), IP68(Silicon tube with glue inside)
Operating Temperature -25ºC-60ºC
Lifetime >35,000 hours   2 years warranty
Material Double side of FPC+3OZ rolled cooper Tech+Original 3M tape+ Lead-free paste
Full solution Supply aluminum profile, controller, driver, connector, wire and other parts



Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

 2. Unique design --SMD2835 Strip;



Item No Description Solution for use

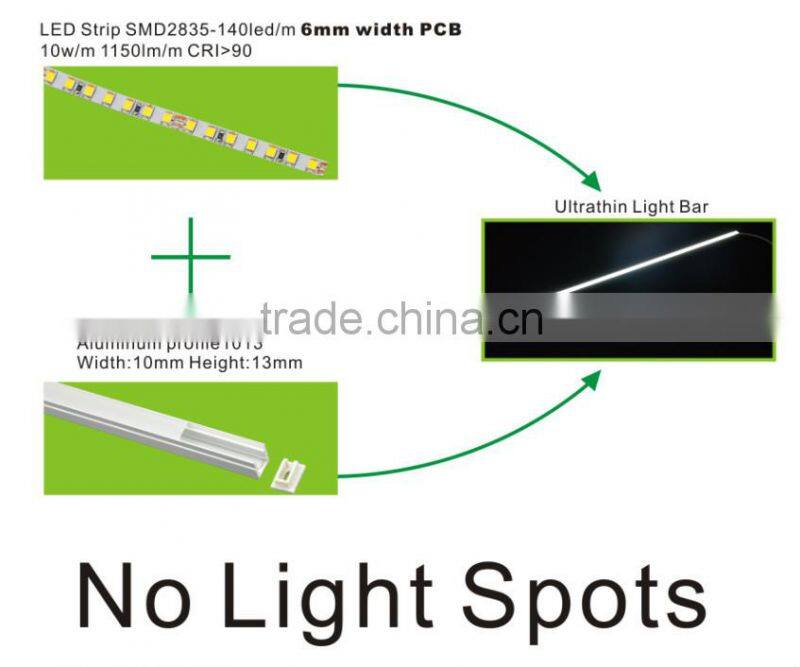

SMD2835-70

2.5m/roll / SMD2835 / 140pcs / 6mm PCB / DC24V / 10W / 1150lm / CRI>80 or >90 /  WW/NW/CW

With 1013 aluminum profile,

Lighting output more even, no spot
SMD2835-70

2.5m/roll / SMD2835 / 140pcs / 10mm PCB /  DC24V /10W / 1540lm / CRI>80 or >90  / WW/NW/CW

 With 1612 aluminum, its light output is very good
SMD2835-91

2.5m/roll / SMD2835 / 182pcs / 10mm PCB /  DC24V 15W / 1800lm / CRI>80 or >90 / WW/NW/CW

 With 1612/1919 aluminum, its light output is very good

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm





Our Services





Starwire==Your Reliable & Valuable Partner in China



1. Professional:



1) We have been working on LED Strip Lights for more than 5 years;

2) Various Design=OEM Strip VS Aluminum profile Available;

3) Supply led strip, led profile, led controller, connector wire, led driver, DMX, etc.

2. Quality:



1) All the products will go through 7 checks during production, And the finished products

with 48 hours Aging-test;

2) EU/Chinese Design Patent + CE/RoHS Approved + UL is pending;

3) Warranty: 2 years stadandrd period, 3 years for special request.

3. Service:

1) 24 Hours on-line WhatsApp:0086-13798320350/Skype:jack.liu9800/MSN/TM;

2) Reply within 6 hours;

4. Sample Required:

Available from Stock & Fast Delivery!



  SMD2835 Strip easy to cut as below;

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

SMD2835 Strip Installation;

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

Starwire Lighting provided professional  Service:

1.) Various standard wire

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

 2.) Various Standard Controller

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

3.) Various of Aluminum Profile

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm



Packaging & Shipping

 Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm





Company Information

 Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm

Led Flexible Strip Light DC12V/24V SMD2835 60leds /120 leds 1250 lm
