Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D

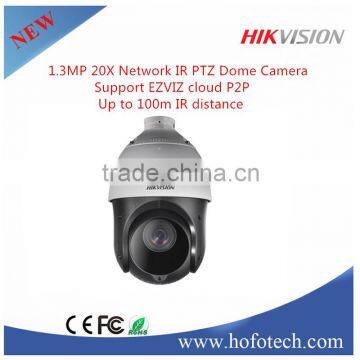

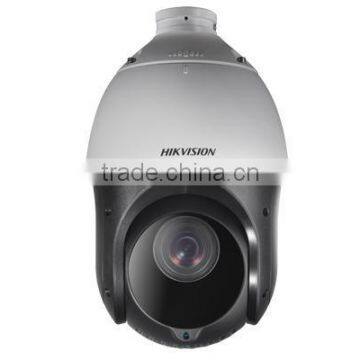

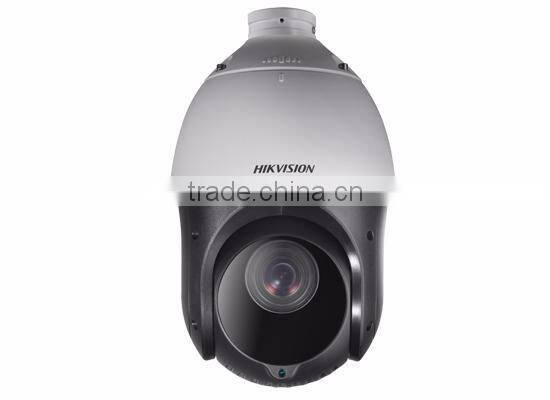

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D

Name: Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D
Brand: Hikvision
SKU: 113027201
Availability: InStock

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D thumbnail-1

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D thumbnail-2

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D thumbnail-3

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D thumbnail-4

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D photo-1

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D photo-2

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D photo-3

Hikvision 1.3MP 20X Network IR PTZ Dome IP Camera DS-2DE4120I-D photo-4

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Hikvision

Model Number:

DS-2DE4120I-D

Contact Supplier Request Quote Chat Now

Yiwu Eastage Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo/HONGKONG

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Hikvision

Model Number DS-2DE4120I-D

Type Analog Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

HOFO Will Be Your Best Partner

• 1/3’’ Progressive Scan CMOS

• 1280 x 960

• 20X Optical Zoom

• DWDR

• 3D intelligent positioning function

• Support EZVIZ cloud P2P

• Up to 100m IR distance

• 12VDC power supply

Camera
Image Sensor:	\|	1/3" Progressive Scan CMOS
Effective Pixels:	\|	1280(H)x960(V)
Signal System:	\|	PAL/NTSC
Minimum Illumination:	\|	F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 52dB
BLC:	\|	ON/OFF
HLC:	\|	Support
WDR:	\|	Support
Shutter Time:	\|	1-1/10,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16X
Privacy Masking:	\|	8 privacy masks programmable
Auto Focus:	\|	Auto / Semi-automatic / Manual
Lens
Focal Length:	\|	4.7-94.0mm, 20x
Zoom Speed:	\|	Approx.3s(Optical Wide~Tele)
Angle of View:	\|	58.3-3.2 degree (Wide~Tele)
Minimum Working Distance:	\|	10~1,000mm(Wide~Tele)
Aperture Range:	\|	F1.6~F3.5
Pan & Tilt
Pan Range:	\|	360°endless
Pan Speed:	\|	Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Range:	\|	-15°-90° (Auto Flip )
Tilt Speed:	\|	Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	300
Patrol:	\|	8 patrols, up to 32 presets per patrol
Power loss recovery:	\|	Support
Park Action:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:	\|	ON/OFF
Infrared
IR irradiation distance:	\|	100m
IR irradiation angle:	\|	Adjustable by zoom
Network
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	\|	1280×960
Frame Rate:	\|	50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
Main Stream:	\|	50Hz:25fps(1280×960), 25fps (1280×720) 60Hz:30fps(1280×960), 30fps (1280×720)
Sub Stream:	\|	50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240); 60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 4 areas with adjustable levels
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Dual Stream:	\|	Support
Mini SD Card:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
EZVIZ:	\|	Support
Client GUI
Camera Control:	\|	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language:	\|	English
Power Supply:	\|	12V DC
Power Consumption:	\|	Max.20W
Working Temperature/Humidity:	\|	-30°C ~ 65°C (-22°F ~ 149°F)
Protection Level:	\|	IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ164.5(mm)×295(mm)
Weight (approx.):	\|	2kg (4.41lbs)
Mount Option:	\|	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

♦ Quality Control

1. All raw materials are carefully selected and inspected.
2. Advanced production equipment is used and routinely inspected and serviced.
3. All operators and employees are thoroughly trained.
4. All products have passed the European Union RoHS standard and are CE, FCC certified.
5. All products must pass strict inspection before delivery.

6. Professional logistics personnel are employed to control the damage during the physical distribution of products.

♦ Cost Control

1. Our factories have been accredited in terms of ISO9001, and our advanced management system increases efficiency and reduces costs.

2. Bulk purchasing has reduced our material cost, and massive production have lowed each product cost.

3. Advanced production equipment such as our SMT production line provides a highly efficient production rate.
4. Reduction of any unnecessary surplus of products by strict stock control reduces our warehousing costs.

♦ Strong Tech Support

1. Presale: product consultation and solution design can be provided.
2. Sale: spares parts can be provided at a certain discount. Delivery time is approximately two weeks. Please note that delivery times may vary depending on the destination and transportation method.
3. After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
4. We can also provide project designs, customized products, online training, in-person training, and OEM services.
