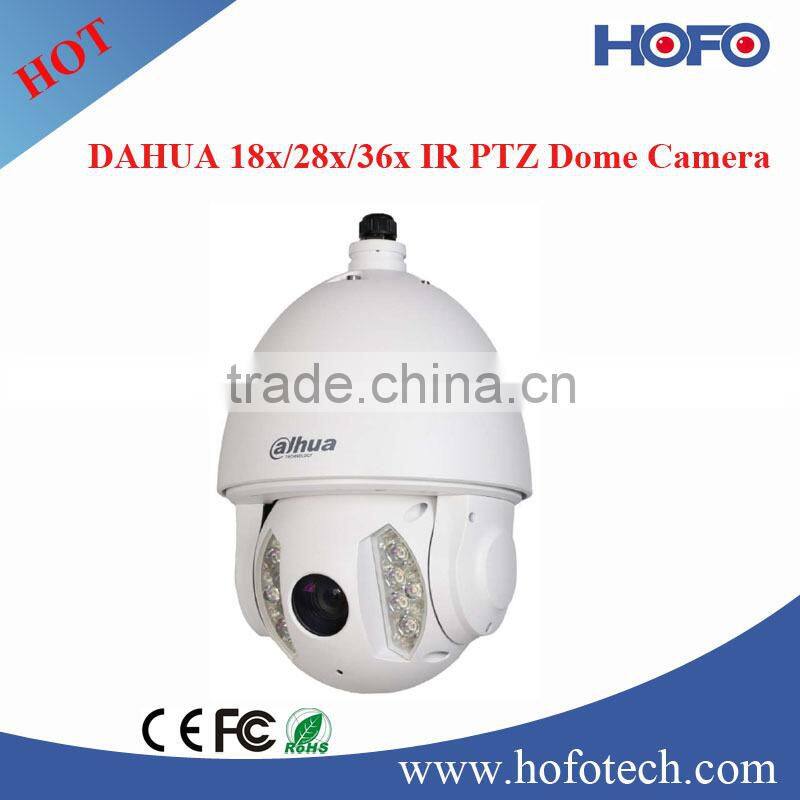

Dahua 1/4" Exview CCD Analog Ptz Dome Camera IR 150M

Name: Dahua 1/4" Exview CCD Analog Ptz Dome Camera IR 150M
Brand: dahua
Availability: InStock

FOB Price

US$ 1 - 500 / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	dahua
Model Number	SD6A63E/65E/66E-H	Type	Analog Camera
Style	Dome Camera	Sensor	CCD
Technology	Pan / Tilt / Zoom	Special Features	Waterproof / Weatherproof

Product Description

>Powerful 18x/28x/36x optical zoom

>High resolution of 600TVL(Color), 650TVL(B/W)

>WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC,EIS

>Max 240°/s pan speed, 360° continuous pan rotation

>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern

>Built-in 7/2 alarm in/out

>Support intelligent 3D positioning with DH-SD protocol

>IP66, IR LEDs up to 150m

Model	DH-SD6A63E-H	DH-SD6A65E-H	DH-SD6A66E-H
Camera
Image Sensor	1/4” EXview HAD CCD
Effective Pixels	752(H) × 582(V) / 768 (H) × 494(V)
Horizontal Resolution	Color: 600TVL; B/W: 650TVL
Scanning System	Progressive
Electronic Shutter Speed	1/3(4) ~ 1/10000 sec (20 steps)
Min. Illumination	0.7 lux (F1.4, 50IRE)	0.65 lux (F1.35, 50IRE)	1.4 lux (F1.6, 50IRE)
	0.04 lux/Color 0.01 lux/B/W, (1/3,1/4 sec)	0.04 lux/Color 0.005 lux/B/W, (1/3,1/4 sec)	0.1 lux/Color 0.01 lux/B/W, (1/3,1/4 sec)
S/N Ratio	More than 50dB
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
Privacy Masking	Up to 24 areas
Digital Zoom	12x
Image Stabilization	Electronic Image Stabilizer (EIS)
Lens
Focal Length	4.1mm ~ 73.8mm (18x optical zoom)	3.5mm ~ 98.0mm (28x optical zoom)	3.4mm~ 122.4mm (36x optical zoom)
Max Aperture	F1.4 ~ F3.0	F1.35 ~ F3.7	F1.6 ~ F4.5
Focus Control	Auto / Manual
Angle of View	H: 48°~ 2.8°	H:55.8° ~ 2.1°	H:57.8°~ 1.7°
Close Focus Distance	10mm ~ 800mm	10mm ~ 1500mm	10mm ~ 1500mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~120°/s
Preset Speed	Pan: 240°/s; Tilt: 200°/s
Preset	80(DH-SD) , 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length / speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol	DH-SD, Pelco-P/D (Auto recognition)
IR Distance	150m (2 near IR LED + 8 far IR LED)
Auxiliary Interface
RS485	1 port
Alarm	7/2 channel In/Out
General
Power Supply	AC24V/3A (±16%)
Power Consumption	20W, 43W(IR on, Heater on)
Working Environment	-40ºC ~ 70ºC / Less than 90% RH
Ingress Protection	IP66
Dimensions	Φ252(mm) x384.3(mm)
Weight	6.75kg

Dahua Specification

Model	DH-HAC-HDBW2120RP-Z	DH-HAC-HDBW2120RN-Z
Camera
Image Sensor	1/3" 1.4Megapixel CMOS
Effective Pixels	1305(H)×1049(V)
Electronic Shutter	1/3s~1/100,000s
Video Frame Rate	25/50fps@720P	30/60fps@720P
Synchronization	Internal
Min. Illumination	0.002Lux F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length	30m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D
OSD Menu	Support
Lens
Focal Length	2.7~12mm
Lens Type	Motorized / Fixed Iris
Mount Type	Φ14
General
Power Supply	DC12V±10%
Power Consumption	Max 9.6W
Working Environment	-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66 & IK10
Dimensions	Φ122mm×89mm
Weight	0.45kg
