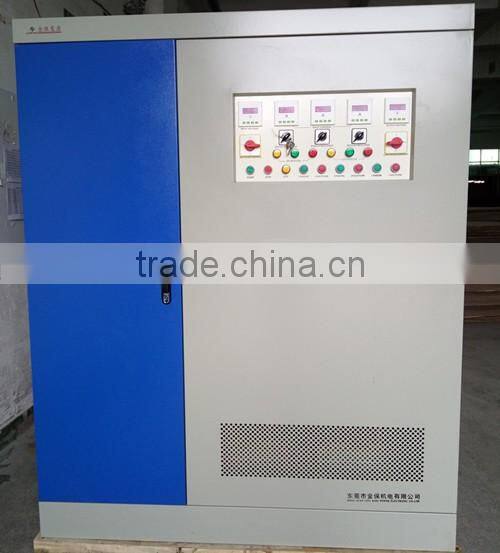

KPB Series Three Phase High Power Compersation Voltage Stabilizer 500KVA
US$ 4,556 - 8,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Usage:
DBW
Phase:
Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 New Single Phase Control Transformer 100VAUS$ 4.66 - 1,545MOQ: 20 Pieces -
TDGC2 Contact Type Voltage RegulatorUS$ 10.1 - 725.8MOQ: 5 Pieces
-
Three Phase Dry Type Machine Tool Control Transformer 30KVAUS$ 193.6 - 890MOQ: 10 Pieces
-
Special Equipment TransformerUS$ 31.33 - 1,566MOQ: 20 Pieces
-
JBK Control Transformer Single PhaseUS$ 7 - 1,645MOQ: 50 Pieces
Place of Origin
Guangdong, China
Usage
DBW
Phase
Three Phase
Current Type
AC
KPB series three phase high power voltage stabilizers are new generation energy saving power voltage regulators,Can be applied to any load, with large capacity, high efficiency, wide voltage range, high precision, strong protection function, no waveform distortion, reliable operation, easy maintenance, etc.
| Phase | Three-phase four wire system |
| Input voltage | Phase voltage:220V±20%(176-246V) |
| Line voltage:380V±20%(304-456V) | |
| Output voltage | Phase voltage:220V±2-5% adjustable; Line voltage:380V |
| Output Deviance | 380V± 1-5% adjustable |
| Frequency | 50Hz/60Hz |
| Efficiency | ≥95% |
| Response time | ≤1.5S (against 10% input voltage deviation) |
| Ambient temperature | -10°C~40°C |
| Insulation resistance | ≥5MΩ |
| Waveform distortion | Non additional waveform distortion |
| Protection functions | Overvoltage, overcurrent, phase shortage, phase-sequence and mechanical failure. |
| Over-load capacity | 1min. at the rated current of 2 times. |
| Electricity-resistance strength | Power frequency sinusoidal is 200V AC without breakdown and flash over when it lasts 1min. |
