Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 2016 Dahua IP Camera Recorder ,H.264 NVR 64ch 1080P Realtime NVR

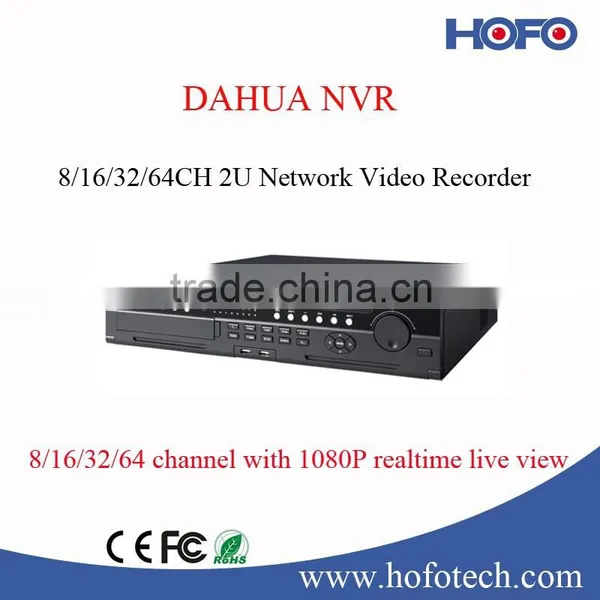

2016 Dahua IP Camera Recorder ,H.264 NVR 64ch 1080P Realtime NVR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DAHUA
Model Number:
NVR7808-RH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CCTV NVR ,5MP Resolution NVR H.264 64ch NVRUS$ 1 - 500MOQ: 1 Piece -
IP CCTV NVR 128ch Super 4K Network Video RecorderUS$ 1 - 500MOQ: 1 Piece
-
IP CCTV NVR 64ch Super 4K Network Video RecorderUS$ 1 - 500MOQ: 1 Piece
-
Dahua 700tvl Ccd Ptz Dome Camera,ir CameraUS$ 1 - 500MOQ: 1 Piece
-
Dahua 23x/36x Ultra-high Speed IR PTZ Dome CameraNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
DAHUA
Model Number
NVR7808-RH
Product Description
Key Features:
>Up to 8/16/32/64 channel with 1080P realtime live view
>H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>2HDMI/VGA simultaneous video output
>8/16/32 channel synchronous realtime preview, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,4 USB2.0
>Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
>Support HDD hot-swap
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>2HDMI/VGA simultaneous video output
>8/16/32 channel synchronous realtime preview, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,4 USB2.0
>Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
>Support HDD hot-swap
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications:
| Model | DH-NVR7808-RH | DH-NVR7816-RH | DH-NVR7832-RH | DH-NVR7864-RH | ||||||
| System | ||||||||||
| Main Processor | Dual-core embedded processor | |||||||||
| Operating System | Embedded LINUX | |||||||||
| Video & Audio | ||||||||||
| IP Camera Input | 8 channel | 16 channel | 32 channel | 64 channel | ||||||
| Two-way Talk | 1 channel Input, 1 channel Output, BNC | |||||||||
| Display | ||||||||||
| Interface | 2 HDMI, 1 VGA, 1TV | |||||||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |||||||||
| Display Split | 1/4/8/9 | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | ||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||||||||
| Recording | ||||||||||
| Compression | H.264/MJPEG | |||||||||
| Resolution | 1080p(1920×1080) / 720p(1280×720)/D1(704×576/704×480) & etc. | |||||||||
| Record Rate | Max 192Mbps | |||||||||
| Bit Rate | 48~ 8192kbps | |||||||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |||||||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||||||||
| Video Detection & Alarm | ||||||||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips | |||||||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||||||||
| Alarm Input | 8 channel | 16 channel | 16 channel | 16 channel | ||||||
| Relay Output | 3 channel | 6 channel | 6 channel | 6 channel | ||||||
| Playback & Backup | ||||||||||
| Sync Playback | 1/4/9 | 1/4/9/16 | 1/4/9/16 | 1/4/9/16 | ||||||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |||||||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||||||||
| Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | |||||||||
| Network | ||||||||||
| Ethernet | 2 RJ-45 ports (10/100/1000Mbps) | |||||||||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |||||||||
| Max. User Access | 128 users | |||||||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||||||||
| Storage | ||||||||||
| Internal HDD | 8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB | |||||||||
| External HDD | 1 eSATA port | |||||||||
| Auxiliary Interface | ||||||||||
| USB | 4 ports (2 Rear), USB2.0 | |||||||||
| RS232 | 1 port, For PC communication & Keyboard | |||||||||
| RS485 | 1 port, For PTZ control | |||||||||
| General | ||||||||||
| Power Supply | AC 100V~240V, 50/60 Hz | |||||||||
| Power Consumption | NVR: 75W (without HDD) | |||||||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | |||||||||
| Dimension (W×D×H) |
2U, 440mm×460mm×89mm | |||||||||
| Weight | 6KG (without HDD) | |||||||||
