Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 2015 HD CVI DVR 1080P H.264 CVR for Full HD CVI Camera

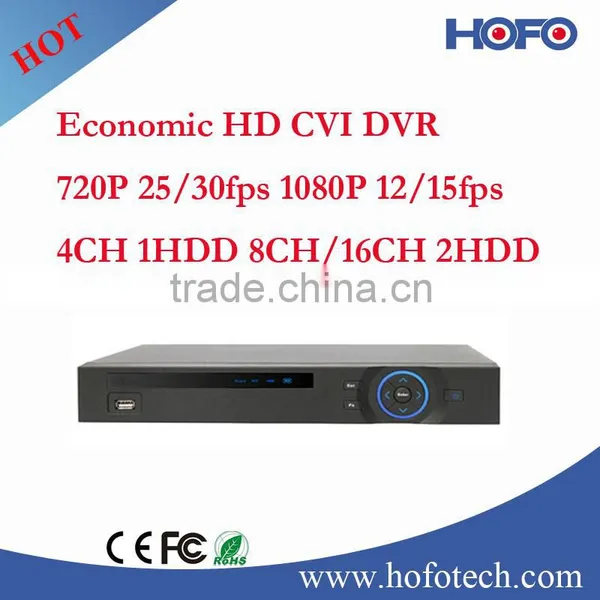

2015 HD CVI DVR 1080P H.264 CVR for Full HD CVI Camera
US$ 65 - 75
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
HFCVI-CVR5104D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hofo 16ch 720P Real Time hd Cvi Dvr,cctv Dvr ,full hd DvrUS$ 190 - 230MOQ: 1 Piece -
Hot Sell 2015 New Products 8CH 720P CCTV HD CVI DVRUS$ 110 - 130MOQ: 1 Piece
-
1Mp 720P HDCVI PTZ Dome Cctv Camera System,security Alarm System,home Cctv SystemUS$ 1 - 500MOQ: 1 Piece
-
DAHUA 720P hd OEM Analog Camera Cvi Cctv Camera SystemUS$ 1 - 500MOQ: 1 Piece
-
Dahua 720P Real Time HD CVI Camera Outdoor Bullet CameraNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Dahua
Model Number
HFCVI-CVR5104D
Specifications
4CH CVI DVR720P/960P, real-time mode
Static, Dynamic IP and DDNS, P2P
Support remote view by Mobilephone
Top selling:
Video Input/Output: BNC 4CH In/ 1CH Out/ VGA 1CH Out/ HDMI 1CH Out
Audio Input/Output: RCA 1CH In/ 1CH Out
Compression Method: H.264
720P/960P, real-time mode: PAL every channel 1fps-25fps adjustable;
NTSC every channel 1fps-30fps adjustable;
1080P, non real-time mode: PAL every channel 1fps-12fps adjustable;
NTSC every channel 1fps-15fps adjustable
Preview resolution: 720P(1280*720) /1080P(1920*1080)
Multi-channel playback: Support single channel/four channels mode.
Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating
Static, Dynamic IP and DDNS , P2P, Support IE and special client software 1 SATA Hard Disk Interface (Up to 4TB); 2×USB (1 Rear) ; 1xRJ45;
Backup: USB2.0 (such as U disk, mobile hard disk, USB Drive) and network
Support remote view by Mobilephone (iPhone, iPad, Android, Windows Phone)
DC 12V ≤15W(with adaptor, without hard disk)
Dimensions (L×W×H): 335*270*55(mm) Weight: 2.5kg
4CH CVI DVR Specification:
HOFO HD 4CH CVI DVR work with CVI camera Static, Dynamic IP and DDNS , P2P, Support IE and special client software
| Model | HFCVI-CVR5104D |
| System | |
| Main Processor | ARM® CPU Core (GM8287) |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4 Channel, CVI |
| Output | 1 VGA, 1 HDMI |
| Audio | |
| Input | 1 Channel, RCA |
| Two-way Audio | Yes |
| Output | 1 Channel, RCA |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 4 Channel |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, Screen tips |
| Email Alarm | Send Pieces to The Designated E-mail |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P, Sony, Sharp, Panasonic, Samsung and Other Protocols |
| Baud Rate | 1200~115200 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080 |
| HDMI | Resolution: 1080P(1920×1080), 720P( 1280×720) |
| Display Split | 4 Channel / 1Channel |
| Privacy Masking | 4 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G711A,G711U,PCM |
| Resolution | 1080P(1920*1080), 960P(1280*960), 720P(1280×720), D1(P:704×576/N:704×480), HD1(P:352×576/N:352×480), CIF(352×288/ 352×240), QCIF(P:176×144/N:176×120) |
| Video Quality | Best/Fine/Normal |
| Record Rate | PAL: 1080P@48fps, 960P@100fps, 720P@100fps, D1@100fps, HD1@100fps, CIF@100fps, QCIF@100fps NTSC: 1080P@60fps, 960P@120fps, 720P@120fps, D1@120fps, HD1@120fps, CIF@120fps, QCIF@120fps |
| Record Mode | ManualTimerMotion Detection |
| Playback & Backup | |
| Sync Playback | 4 Channel / 1Channel |
| Remote Playback | 4 Channel/ 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play |
| Smart Phone Playback | Support |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST |
| DDNS | Quick DDNS(free of charge), 3322, Dyndns |
| Web Browser | IE6-11, Google Chrom , Firefox |
| CMS Software | Support Windows XP /Windows Vista/Windows 7/Windows 8 |
| Extra Stream | D1/CIF/QCIF(1~25fps) |
| Smart Phone | iPhone, ipad, Android |
| Hard Disk Driver | |
| Interface Type | 2 SATA Interface |
| Capacity | Up to 8TB Capacity |
| General | |
| Language | Simplified Chinese, Traditional Chinese, English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkey, Poland, Romania, Hungary, Finnish, Hebrew, Brazil, Persian, Arabian, Czech,Bulgaria, Slovak, Dutch, Greece, Indonesia, Switzerland, Vietnamese, Thai |
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC12V/3A |
| Working Environment | -10℃~55℃/10%~90% |
| Dimension (W×D×H) | 335mm×270mm×55mm |
| Weight | 2.5kg (Without HDD) |
