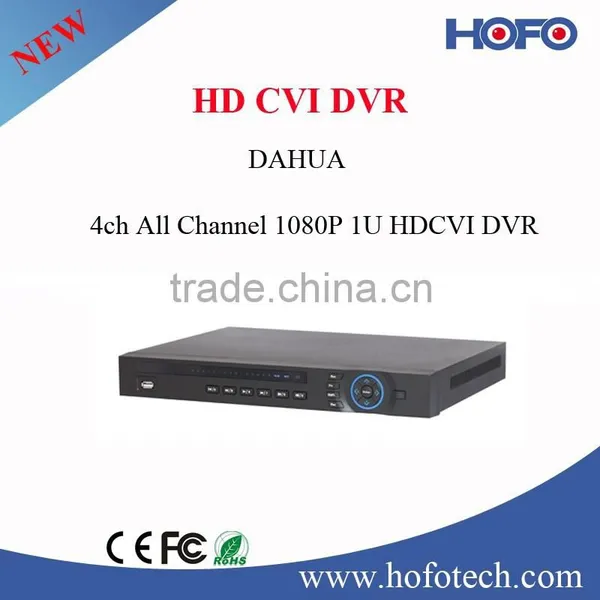

Help Center1080P IR Hdcvi Cctv DVR 4CH ,Tribrid HDCVI & Analog & IP 1U DVR
Related Products
-
8ch 720P HDCVI DVR 3 in 1 HD MINI DVRUS$ 144 - 150MOQ: 1 Piece -
8CH Tribrid HDCVI&Analog&IP 1U DVR H.264 720P DvrUS$ 306 - 318MOQ: 1 Piece
-
1080P IR Hdcvi Cctv DVR 8CH ,Tribrid HDCVI & Analog & IP 1U DVRUS$ 372 - 384MOQ: 1 Piece
-
4ch 720P HDCVI DVR 3 in 1 HD MINI DVRUS$ 96 - 105MOQ: 1 Piece
-
16CH Tribrid HDCVI&Analog&IP 1U DVR H.264 720P DvrUS$ 414 - 426MOQ: 1 Piece
Key Features:
>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>All channel 720P
>HDMI / VGA/BNC simultaneous video output
>4/8 channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 2 SATA HDD up to 8TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications:
Model |
HFCVI-HCVR7204A |
HFCVI-HCVR7208A |
||
System | ||||
Main Processor |
Embedded processor |
|||
Operating System |
Embedded LINUX |
|||
Video | ||||
Input |
4 channel, BNC |
8 channel, BNC |
||
Standard |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|||
Audio | ||||
Input |
4 channel, BNC |
|||
Output |
1 channel,BNC |
|||
Two-way Talk |
Reuse audio input/output channel 1 |
|||
Display | ||||
Interface |
1 HDMI, 1 VGA, 1BNC |
|||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
|||
Display Split |
1/4 |
1/4/8/9 |
||
Privacy Masking |
4 rectangular zones (each camera) |
|||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|||
Recording | ||||
Video/Audio Compression |
H.264 / G.711 |
|||
Resolution |
1080P(1920×1080/1920×900)/(720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120) |
|||
Record Rate |
Main Stream: |
1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
||
Extra Stream |
CIF/QCIF(1~25/30fps) |
|||
Bit Rate |
48~8192Kb/s |
|||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|||
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|||
Video Detection&Alarm | ||||
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
|||
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|||
Alarm Input |
4 channel |
8 channel |
||
Alarm Output |
3 channel |
|||
Playback & Backup | ||||
Sync Playback |
1/4 |
1/4/8 |
||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|||
Backup Mode |
USB Device / Network |
|||
Network | ||||
Ethernet |
RJ-45 port (10/100M/1000M) |
|||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|||
Max. User Access |
128 users |
|||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||
Storage | ||||
Internal HDD |
2 SATA port, up to 8TB |
|||
Auxiliary Interface | ||||
USB Interface |
2 ports (1 Rear), USB2.0 |
|||
RS232 |
1 port, For PC communication & Keyboard |
|||
RS485 |
1 port, For PTZ control |
|||
General | ||||
Power Supply |
DC12V/5A |
|||
Power Consumption |
15W(without HDD) |
|||
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|||
Dimension(W×D×H) |
1U, 375mm×285mm×45mm |
|||
Weight |
2.35KG(without HDD) |
|||
