Place of Origin Zhejiang, China
Brand Name dahua
Model Number CA-FW181I
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

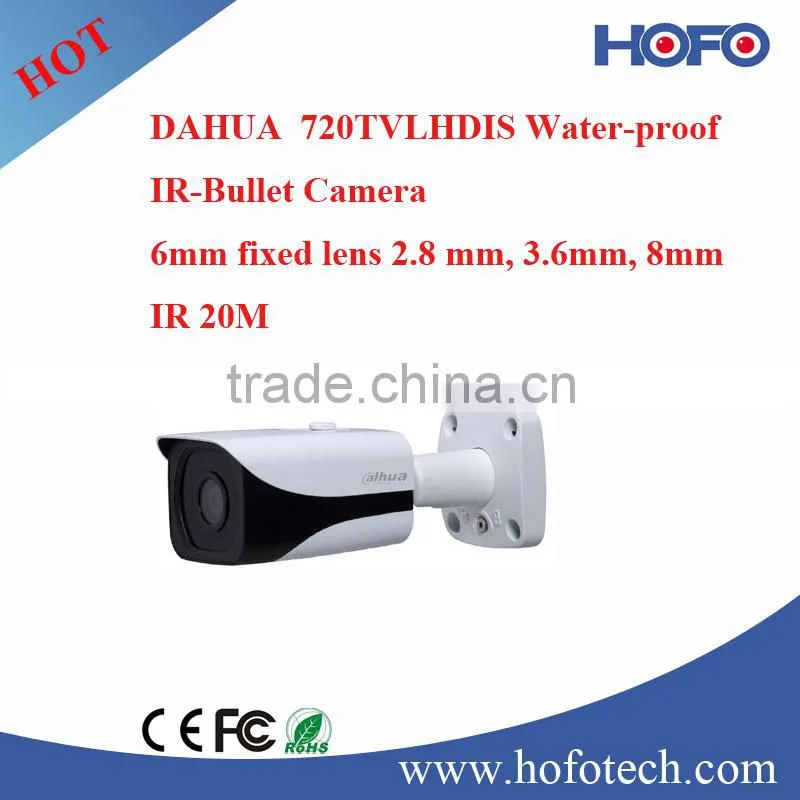

security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)

>1/3" HDIS
>High resolution of 720TVL(Color)
>Day/Night(ICR), DNR, AWB, AGC,BLC
>6mm fixed lens (2.8mm, 3.6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V



Specification:

Model DH-CA-FW181IP DH-CA-FW181IN
Camera
Image Sensor 1/3" HDIS
Effective Pixels 960(H)×480(V)
Horizontal Resolution 720TVL
Electronic Shutter 1/50s~1/100,000s 1/60s~1/100,000s
Synchronization Internal
Mini. Illumination 0.01Lux F1.2(AGC ON), 0Lux IR on
S/N Ratio More than 65dB (AGC OFF)
Video Output 1Vp-p Composite Output (75Ω/BNC)
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto
Noise Reduction 2D
Lens
Focal Length 6mm fixed lens (2.8mm, 3.6mm, 8mm optional)
Mount Type M12
General
Power Supply DC12V±10%
Power Consumption Max 3W
Working Environment -40°C~+60°C / Less than 95%RH
Ingress Protection IP66
Dimensions(W×D×H) 178.4mm × 69.9mm× 70.0mm
Weight 400g

Show Room:

 security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)security camera outdoor ip66 720TVL HDIS ir ip66 CCTV Camera (CA-FW181I)

Dahua Specification



Model DH-HAC-HDBW2120RP-Z DH-HAC-HDBW2120RN-Z
Camera
Image Sensor 1/3" 1.4Megapixel CMOS
Effective Pixels 1305(H)×1049(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 25/50fps@720P 30/60fps@720P
Synchronization Internal
Min. Illumination 0.002Lux F1.2(AGC ON), 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 30m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Lens Type Motorized / Fixed Iris
Mount Type Φ14
General
Power Supply DC12V±10%
Power Consumption Max 9.6W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP66 & IK10
Dimensions Φ122mm×89mm
Weight 0.45kg
