Specifications
1.Wireless led DMX Controller2.Working Temperature:0-70 Celsius degree
3.Voltage: DC 5V /12V-24V
4.Output: 3 channels

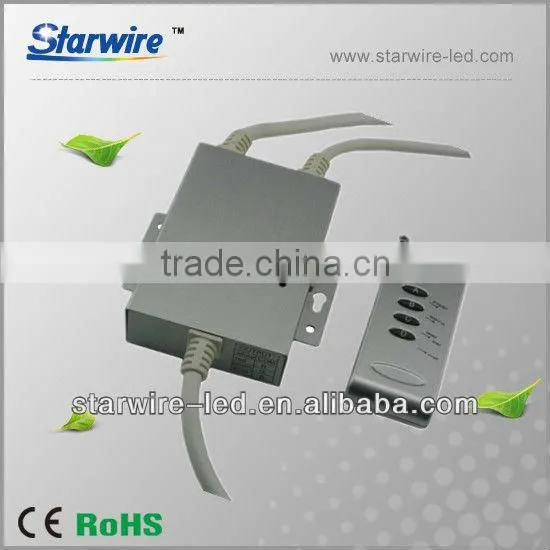

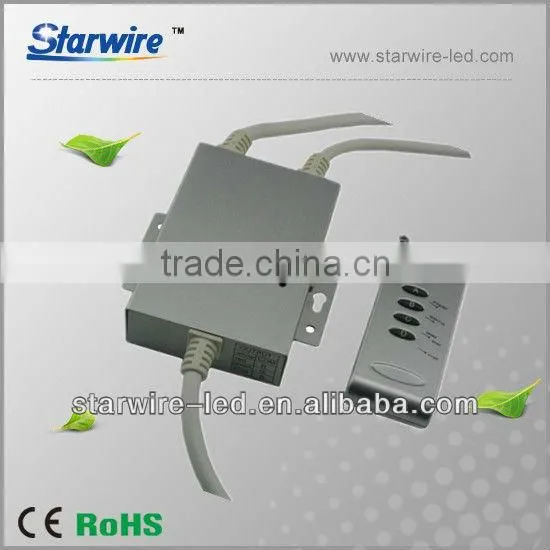

Wireless led DMX ControllerDescription(SW-DMX-C1)
Name: LED DMX Controller
No.: SW-DMX-C1
Description
Wireless DMX Controller adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Output: 3 channels
Connecting mode: Common anode
External dimension: L95 x W67 x H26 mm
Package Size: L145x W95 x H50 mm
Net weight: 265g
Gross weight: 295g
Output current: <4 A (each channel )
Output power: 5 V: <60W, 12V: <144W, 24V: <288W
WorkingTemperature: |
-20-60 °C |
Voltage: |
DC5V, 12-24V |
Output: |
3 channels |
Grayscale |
256 |
The number of occupied channel: |
3 channels |
Connecting mode |
common anode |
External dimension: |
L95 Χ W67 Χ H26 mm |
Packing size: |
L145Χ W95 Χ H50 mm |
Net weight: |
265g |
Gross weight: |
295g |
Static power consumption: |
<1W |
Output current |
<4A per channel |
Output power |
5 V: <60W, 12V: <144W, 24V: <288W |
