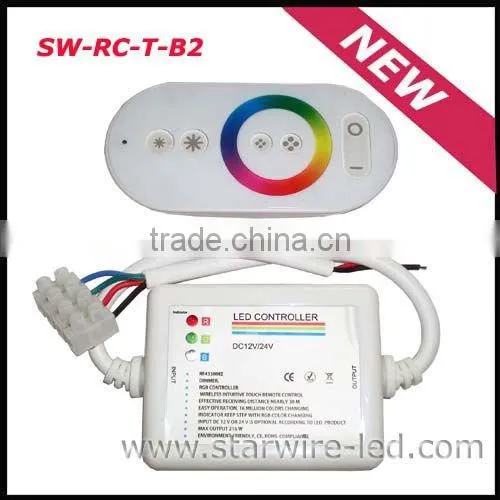

Help Center12V/24V Rainbow Touch RGB Led Controller(white Remote)
Related Products
Specifications
1,Rainbow indication for level adjusting, up to 640000 color.2, Default 15 lighting effects
3, Ideal for led strip, module.
12V RGB Touch dimmer,led RGB touch dimmer,rainbow touch dimmer,LED RGB controller
Touch ring is high sensitive touch sensor,work with finger touch
1.on/off:turn on and off the led lights.
2.change color
Technical Parameters :
1.Working temperature: -20-60 °C
2 Supply voltage: DC12V, 24V <optional> (for orders specify voltage)
3.Output: 3 channels
4.Connectiing mode: common anode
5.Transmission/Receiving frequency: 433.92 Mhz
6.External dimension: L86.5*W55.6 * H22.8 mm
7.Packing size: L88* W88 *H156mm Net weight: 170g
8.Gross weight: 215g
9.Output current: <6 A (each channel)
10.Output power: 12V: <216W, 24V: <432W
Direction for use:
1. Switch on controller by pushing NO.2
2. Switch on Controller by Pushing NO 1
3. Touching No.5, you can move your finger over the color ring, to
select the colors
4. Touching No 3 and 4, change the color saturation. Push on NO 3 to 5.
increase, No.4 to decrease the color. Push on No 4 button for seconds,
the light gradually change to white balance (normal light)
6. Touching No 6 to bright light
7. Touching No 7 to dim the light
8. No 8 is the indicator. It will twinkle when operate the lamp, which
means effective operation.
Note:
1.Input voltage of remote control must be the same as RGB strip's
2.Match the color of output wiring when connecting
3.When the color doesn't match ,for example ,it displays blue when touch green, or displays
green
4.when touching blue ,please check whether the wiring is correct ,in this case ,exchange each
other
5.when touching blue ,please check whether the wiring is correct ,in this case ,exchange each o
.
