Specifications
1, Elegant Design: Aluminum extrusion with black plastic end caps, PMMA lens.2. With IR Sensor in the middle of the light.
Productivity: |
10000 Set/Month |
| Shipment Terms: | EXW Shenzhen |
| Certification: | CE & ROHS |
| Minimum Order: | 2pcs |
| Voltage: | DC12V |
| Payment Terms: | T/T,Western Union,Paypal |

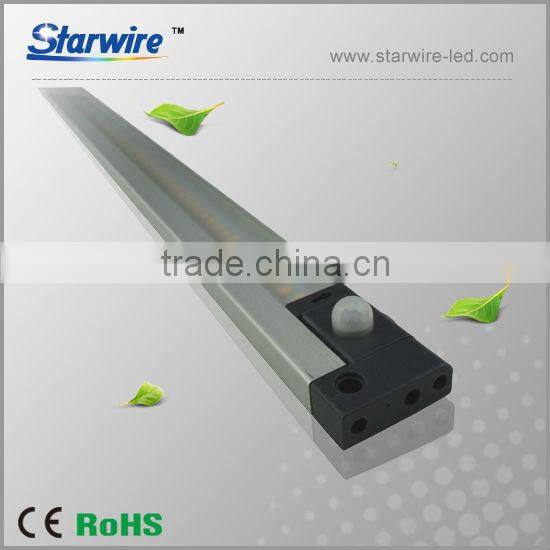

LED Light Bar off road with PIR sensor
Detailed Product Description
1. led light bar off road
2 modes can be chosen by a mode switch.
3. act as PIR sensor led light bar, Sensing distance 1~5m
Features:
Lengths available 500mm
Dimension L500xW28.5xH9.6mm
Material aluminum + PMMA +sensor Material: aluminum + PMMA +sensor
Rated Power 5W
LED qty 72 LEDs SMD 3528
Voltage 12v DC
Luminous Flux 330-450lm
Color Temp. WW(2800-3500K), W(6000-6500K).
Components can be choose freely

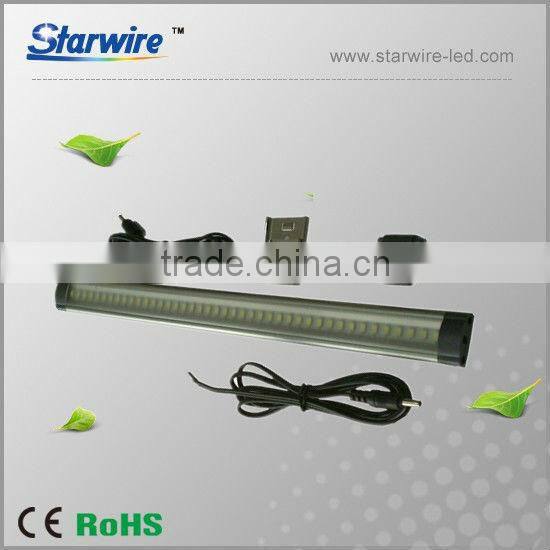

DC converter, connector wire, 1:8 splitter box
Function:
2 modes can be chosen by a mode switch.
1), Mode A, Normal type
The bar act as a normal type
2), Mode B, PIR Sensor mode.
The light act as PIR sensor led light bar,Sensing distance,1~5 M
Connection:
Way 1: Light Bar + Driver with 3.5 DC connector
Way 2: Light Bar + 3.5 - to – 5.5 DC converter + Driver with 5.5 DC connector
Way 3: Light Bar + 1m connect wire(3.5DC male connectors at both ends) + splitter
box+ driver with 5.5 DC connector
Way 4: Light Bar + 1m connect wire ( 3.5DC male connector at one end, bare wire at
the other end) + driver with bare wires.
Operating Environment:
Operating Temperature: -25°C - 60°C
Storage Temperature: -40°C - 80°C
Waterproof Rate: IP20
