1~30 Channels FXO/FXS Voice Mux to Transmit Phone Over E1 16 Channel Desk-Top PCM

1~30 Channels FXO/FXS Voice Mux to Transmit Phone Over E1 16 Channel Desk-Top PCM photo-1
US$ 32 - 80 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-16E1 PDH
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-16E1 PDH
Product Description

1~30 channels FXO/FXS Voice Mux to Transmit Phone over E1 16 Channel Desk-Top PCM

This device is desktop type, there 4U rack card type, which provides telephone outputs 16, Equipment electrical part for the whole digital circuits, machine reliability, stability, low power consumption, high integration, small size, easy installation and maintenance. Many customers are telecommunications operators E1 leased lines used in computer networking, this equipment can be rented at the E1 line opened a few road phone, you can make free calls between headquarters and branch offices of this.

Model
FCC-E1O16/FCC-E1S16
Functional Description
16*POTS(FXO/FXS/2 wire Vioce)E1 MUX,19 inch 1U Type
Port Description
One E1 interface;16*POTS;
Power
 Power supply: AC180V ~ 260V;DC –48V;DC +24V
 Power consumption: ≤10W
Dimension
Product Size:  216*138*42mm (WXDXH)
Weight

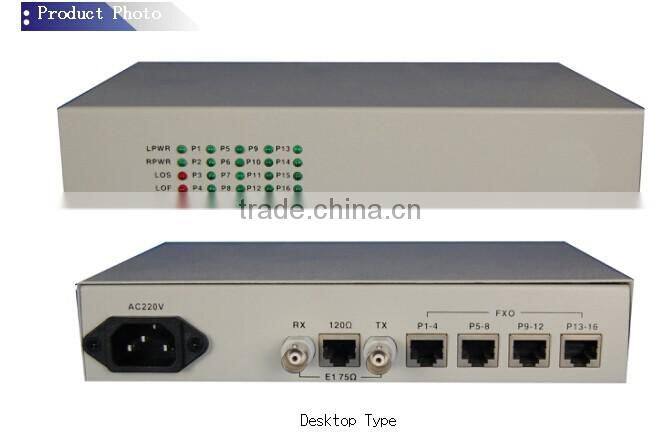

Desktop Type  1.0KG
Detailed Images

E1 Interface

 Interface Standard: comply with protocol G.703;

  Interface Rate: n*64Kbps±50ppm;
  Interface Code: HDB3;
  E1 Impedance: 75Ω (unbalance), 120Ω (balance);
  Jitter tolerance: In accord with protocol G.742 and G.823
  Allowed Attenuation: 0~6dBm

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W
