Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 10/100M 2Fiber Port With 1RJ45 Fiber to Copper Media Converter

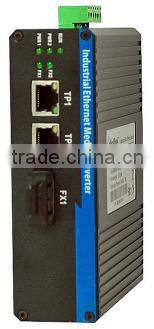

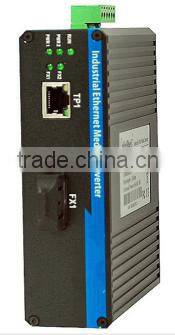

10/100M 2Fiber Port With 1RJ45 Fiber to Copper Media Converter

Name: 10/100M 2Fiber Port With 1RJ45 Fiber to Copper Media Converter
Brand: B&TON/OEM
SKU: 113005575
Availability: InStock

Shenzhen Bton Weiye Technology Co., Ltd.

10/100M 2Fiber Port With 1RJ45 Fiber to Copper Media Converter thumbnail-1

10/100M 2Fiber Port With 1RJ45 Fiber to Copper Media Converter photo-1

US$ 30 - 500 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

B&TON/OEM

Model Number:

HD1V1DF-T/R

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name B&TON/OEM

Model Number HD1V1DF-T/R

Product Description

industrial fiber switch

Unmanaged Industrial Gigabit Fiber Media Converter

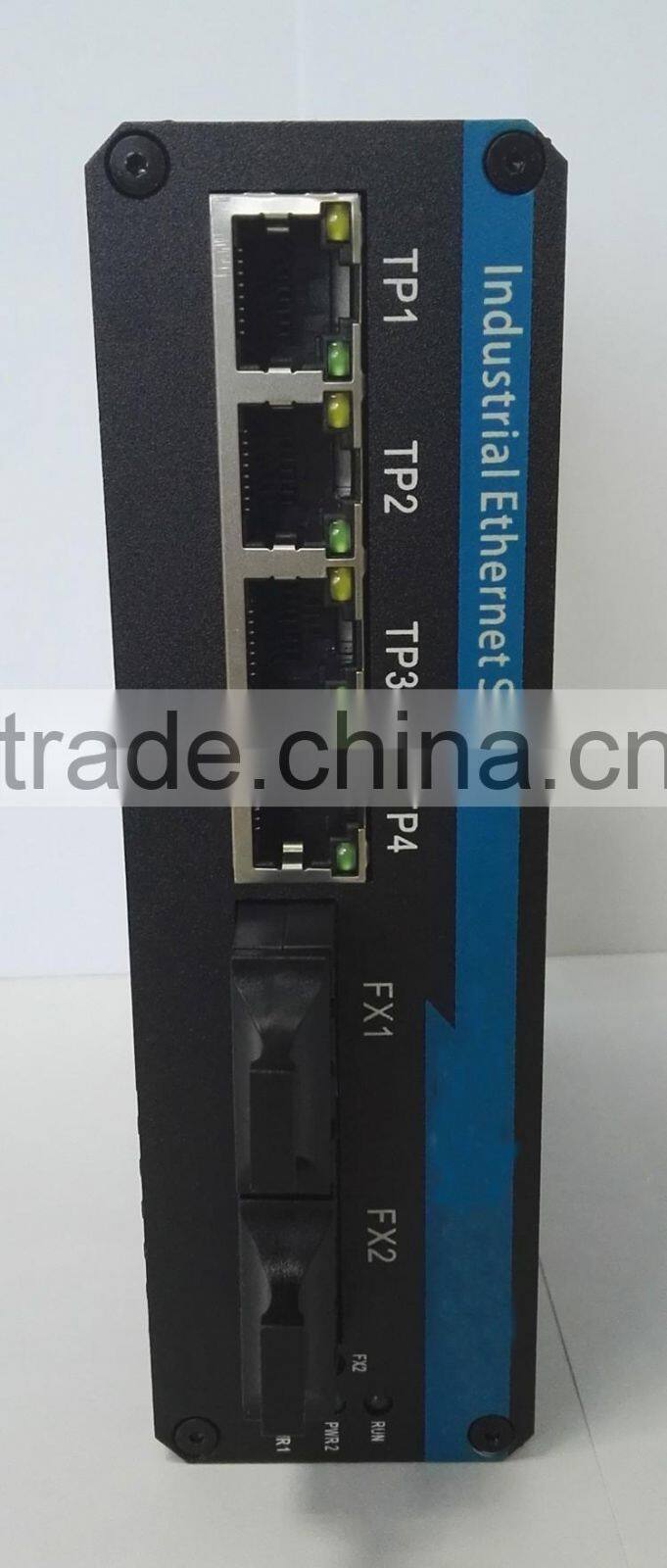

10/100M 2Fiber Port （SC/UPC）+4RJ45

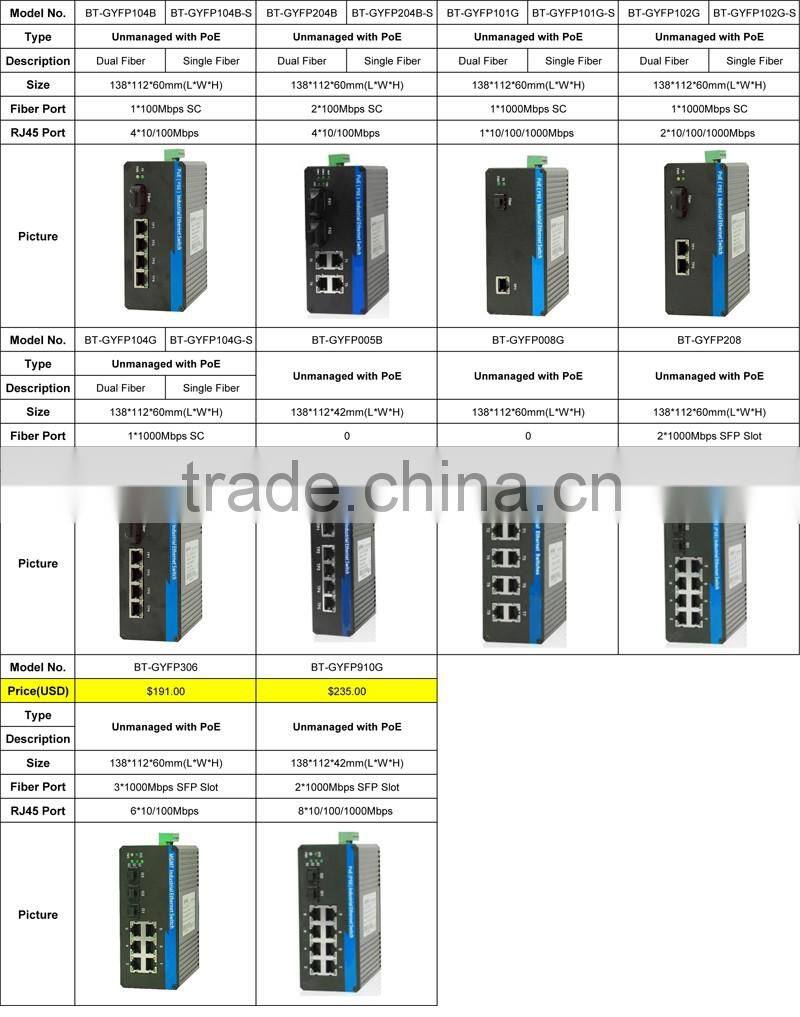

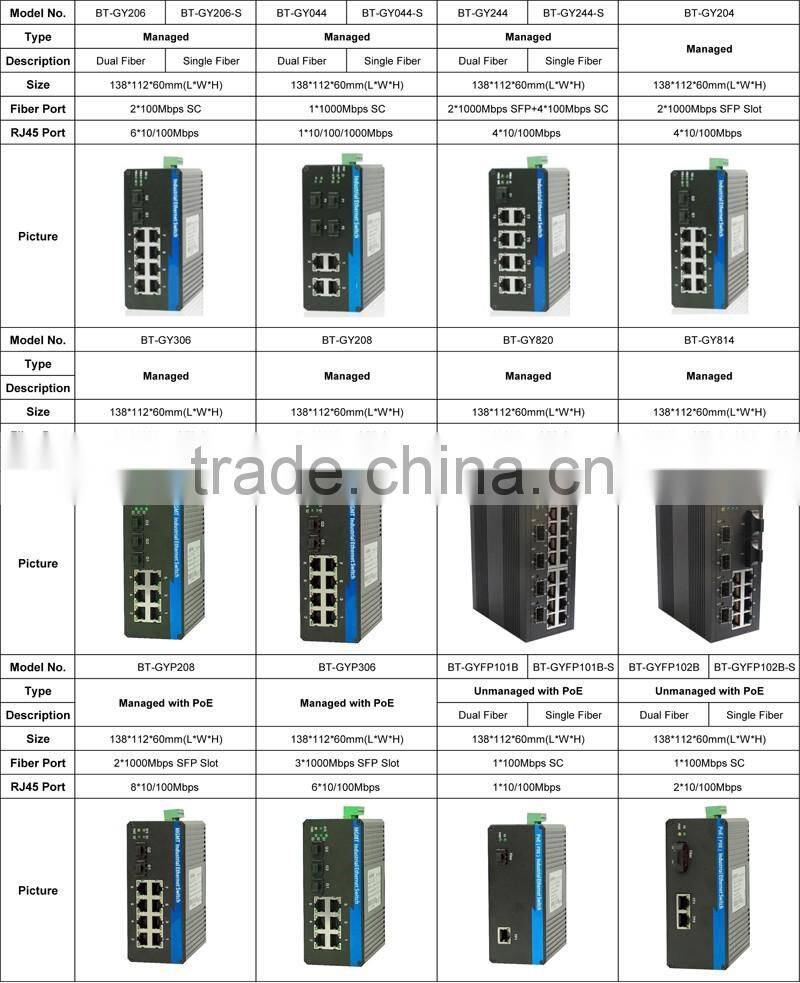

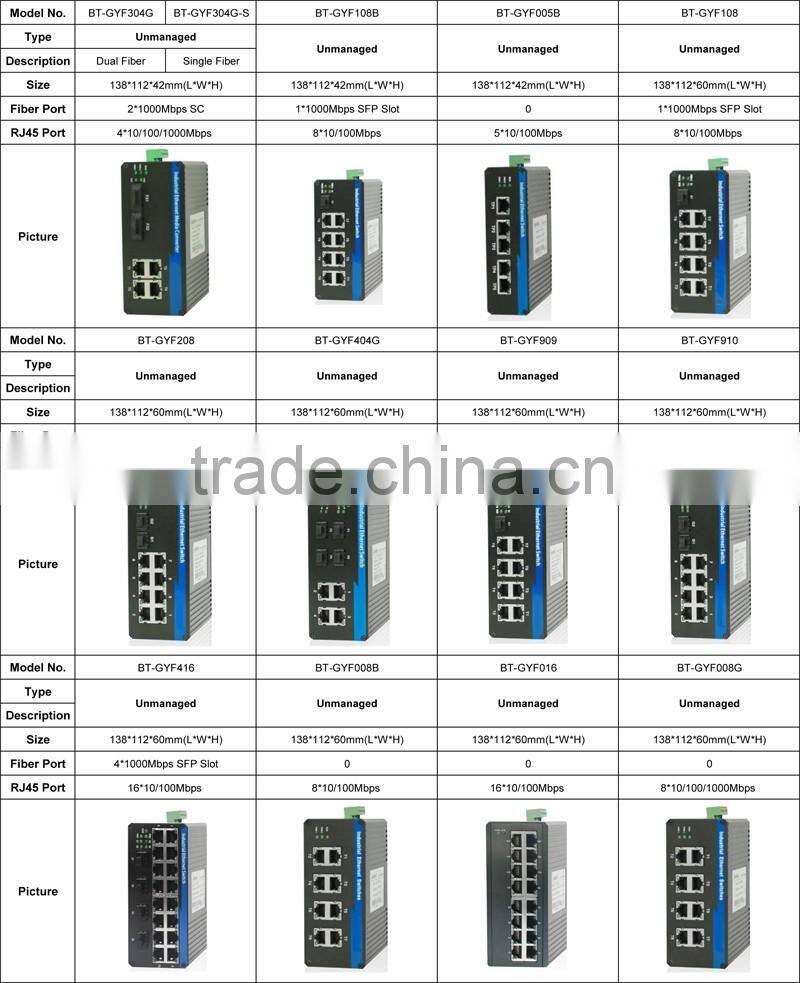

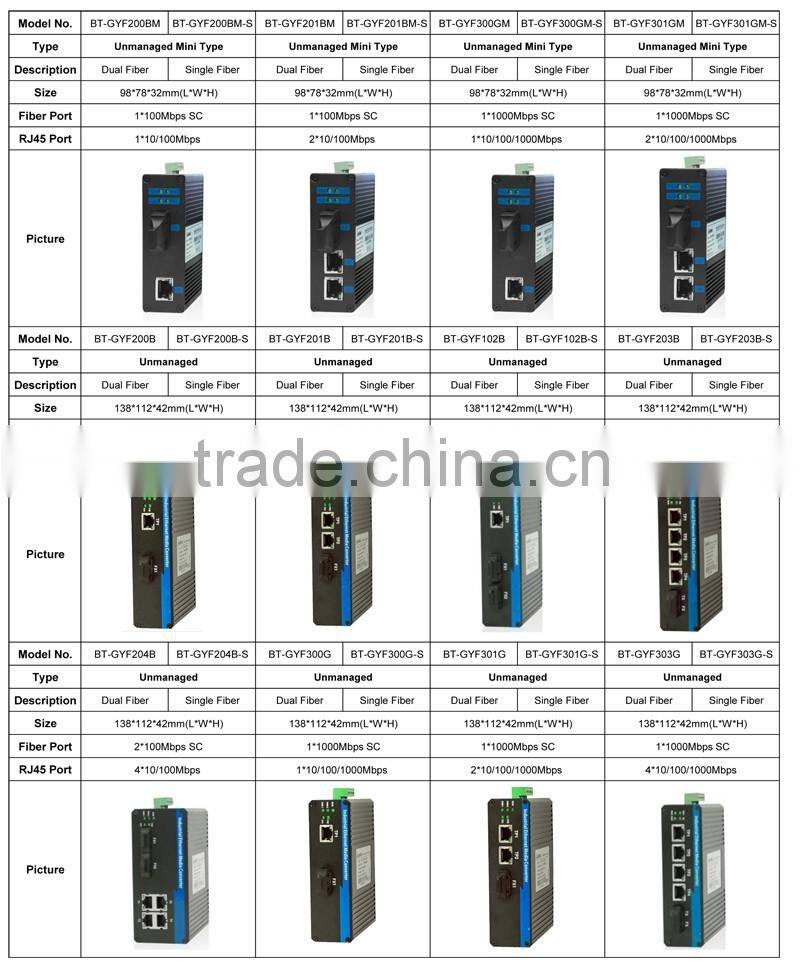

Order Information：

BT-GY204BM:10/100M Multimode dual fiber 2km

BT-GYF204B:10/100M Singmode dual fiber 20km

BT-GYF204B-S:10/100/1000M Singmode Single fiber 20km

BT-GY204GM:10/100/1000M Multimode dual fiber 2km
BT-GYF204G:10/100/1000M Singmode dual fiber 20km
BT-GYF204G-S:10/100/1000M Singmode Single fiber 20km

This industrial media converter is specially designed for industrial application, which provides fast and stable media conversion . It also meets the requirements of long distance, high speed, and wide broadcast.

With wide range operation temperature, alloy aluminum shell and other excellent industrial-grade design against vibration and shock, it could keep your industrial automation applications running continuously in different harsh environments.

Feature

1.1 10/100/1000Base-T(X) port and 1 1000Base-SX/LX/LH/ZX/SFP fiber port
2.10/100/1000M auto-negotiation , Full/Half duplex mode, auto-MDI-MDI-X
3.Super lightening protection, IP40 protection
4.Excellent heat elimination without cooling fan
5.Redundant dual DC power inputs
6.-40℃-85℃ operating temperature range

Application
> City traffic monitoring system
> Public security, safe city monitoring system
> Highway security protection, charging system
> Building, campus monitoring net
> Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
> Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
> electric power, oilfield, television program transmission system
> Gymnasium (live video, audio transmission)

Switch Properties	MAC Table Size: 1K Packet Buffer Size: 1Mbit Processing Type: Store and Forward Exchange Properties: 1488000pps (1000M)

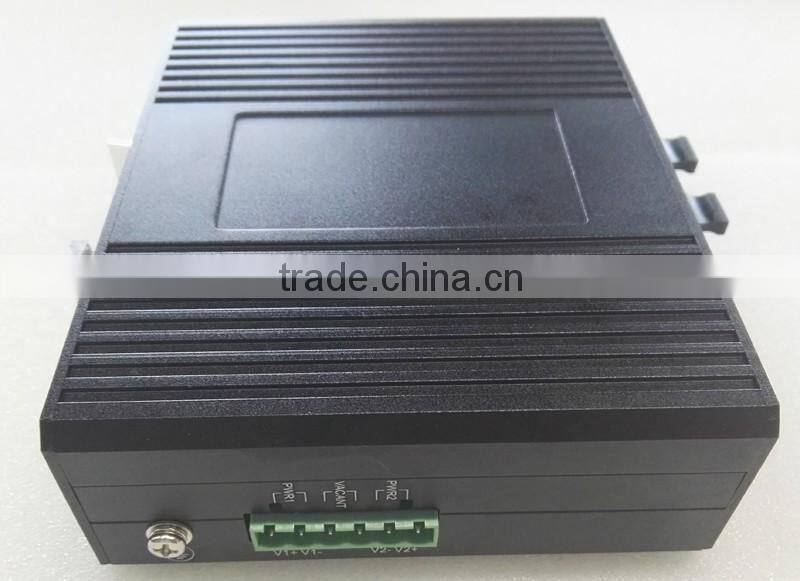

Physical Characteristics	Housing: Aluminum Alloy material with IP40 Protection
	Dimension: 98mm(L) X 80mm(W) X 32mm(H)
	Weight: 270g

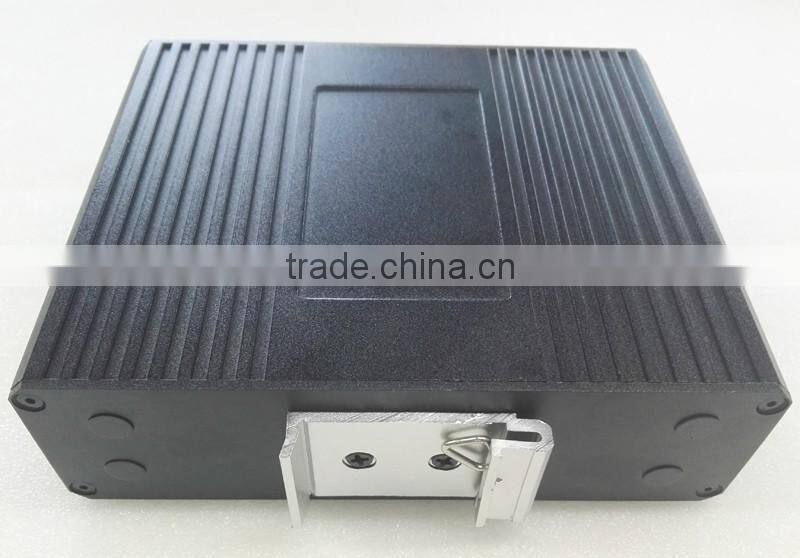

	Installation: Din-Rail mounting, Wall mounting
Interfaces	1 RJ45 Port Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, 10/100/1000Base-T(X) 10/100/1000Base-T(X) auto negotiation speed Full/Half duplex mode Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance 1 Fiber Port Comply with IEEE802.3z Rate: 1000Mbps Wavelength: 850/nm1310nm/1550nm Up to 550M transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/LC interfaces optional

Power	Input Voltage: 24V DC(6-36VDC), Redundant dual inputs
	Input Current: <0.5A @24VDC
	Overload Current Protection: Present
	Reverse Polarity Protection: Present
	Redundant Protection: Present
	Connection: 1 removable 6-pin terminal blocks

Environmental Limits	EMS: EN61000-4-2 (ESD)，Level 3 EN61000-4-3 (RS)，Level 3 EN61000-4-4 (EFT)，Level 3 EN61000-4-5 (Surge)，Level 3 EN61000-4-6 (CS)，Level 3
	Shock: IEC 60068-2-27
	Free Fall: IEC 60068-2-32
	Vibration: IEC 60068-2-6
	EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
	Industry: IEC61000-6-2
	Rail: EN50155, EN50121-4
	Traffic: NEMA TS-2
Warranty	5 years

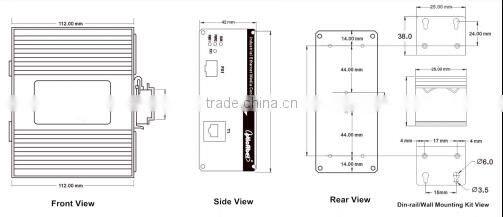

Dimension

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
