1fiber to 2RJ45 10M/100M Unmanaged Industrial PoE Optical Fiber Switch

Shenzhen Bton Weiye Technology Co., Ltd.
1fiber to 2RJ45 10M/100M Unmanaged Industrial PoE Optical Fiber Switch thumbnail-1
1fiber to 2RJ45 10M/100M Unmanaged Industrial PoE Optical Fiber Switch photo-1
US$ 32 - 80 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-F102b
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-F102b
Product Description

1fiber to 2RJ45 10M/100M Unmanaged Industrial PoE Optical Fiber Switch

This unmanaged Ethernet PoE switch is specialized for harsh industrial environment. It is classified as power resource equipment, which can be used to power IEEE 802.3af/at compliant powered devices, eliminates the need of additional wiring.

With simple operation, excellent quality and competitive price, it provides an economical solution for your industrial Ethernet network, which is also specially designed for the needs of multiplex broadband access with limited optical fibers.


Features & Benefits
2 IEEE 802.3af/at PoE compliance 10/100Base-T(X) ports and 1 100Base-FX port
Up to 30W at 48V DC power output on each PoE port
Super lightening protection, IP40 protection
Excellent heat elimination without cooling fan
Switch Properties
MAC Table Size: 2K
Packet Buffer Size: 6KX64bits
Processing Type: Store and Forward
Exchange Properties: 148800pps (100M)
Physical Characteristics
Housing: Aluminum Alloy material with IP40 Protection
Dimension: 138mm(L) X 112mm(W) X 60mm(H)
Weight: 640g
Installation: Din-Rail mounting, Wall mounting
Interfaces
2 RJ45 Ports
Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X), IEEE802.3af/at PoE,
10/100Base-T(X) auto negotiation speed
Full/Half duplex mode
Auto MDI-MDI-X connection
Up to 100M Cat-5 transmission distance
1 Fiber Port
Comply with IEEE802.3u, 100Base-FX
Rate: 100Mbps
Wavelength: 1310nm/1550nm
Up to 2Km transmission distance with multi-mode
Up to 20km,40km,60km,80km transmission distance with single-mode
Power
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Environmental Limits
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
Standards
EMS:
EN61000-4-2 (ESD)，Level 3
EN61000-4-3 (RS)，Level 3
EN61000-4-4 (EFT)，Level 3
EN61000-4-5 (Surge)，Level 3
IEC61000-4-8(100A/m), Level 3
IEC61000-4-11, Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2
Warranty
5 years
Models Available
Model No
Description
Dual Fiber
BT-GYFP102BM
multi-mode; 2Km; SC/ST/FC interfaces optional
BT-GYFP102BS20
Single-mode; 20Km; SC/ST/FC interfaces optional
BT-GYFP102BS40
Single-mode; 40Km; SC/ST/FC interfaces optional
BT-GYFP102BS60
Single-mode; 60Km; SC/ST/FC interfaces optional
BT-GYFP102BS80
Single-mode; 80Km; SC/ST/FC interfaces optional
Single Fiber
BT-GYFP102BSF/20
Single-mode; 20Km; SC/ST/FC interfaces optional
BT-GYFP102BSF/40
Single-mode; 40Km; SC/ST/FC interfaces optional
BT-GYFP102BSF/60
Single-mode; 60Km; SC/ST/FC interfaces optional
BT-GYFP102BSF/80
Single-mode; 80Km; SC/ST/FC interfaces optional

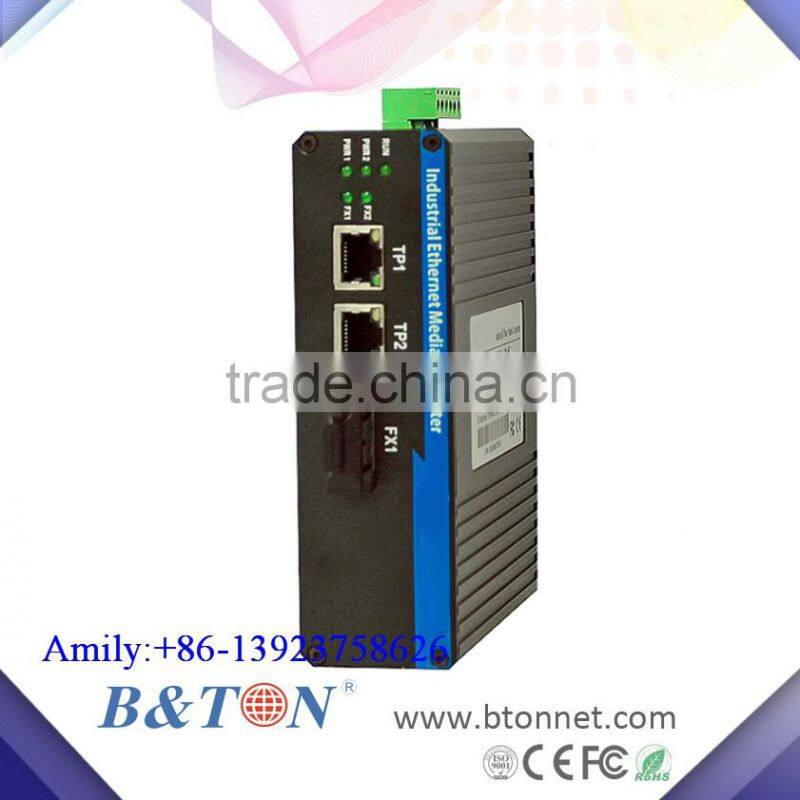

Detailed Images

Features

Interfaces
2 RJ45 Ports: 10/100Base-T(X) auto negotiation
1 100Base-FX port (SC/ST/FC connectors optional)

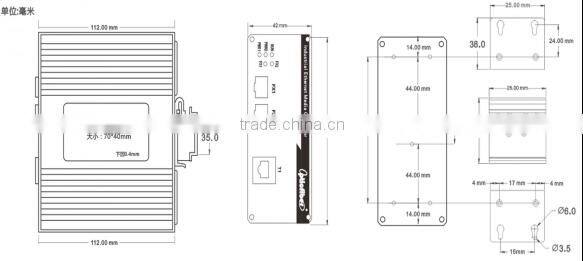

5.Dimension


Power Charger type

British type,Amercian type,European type,Austrilia Type

Dimension

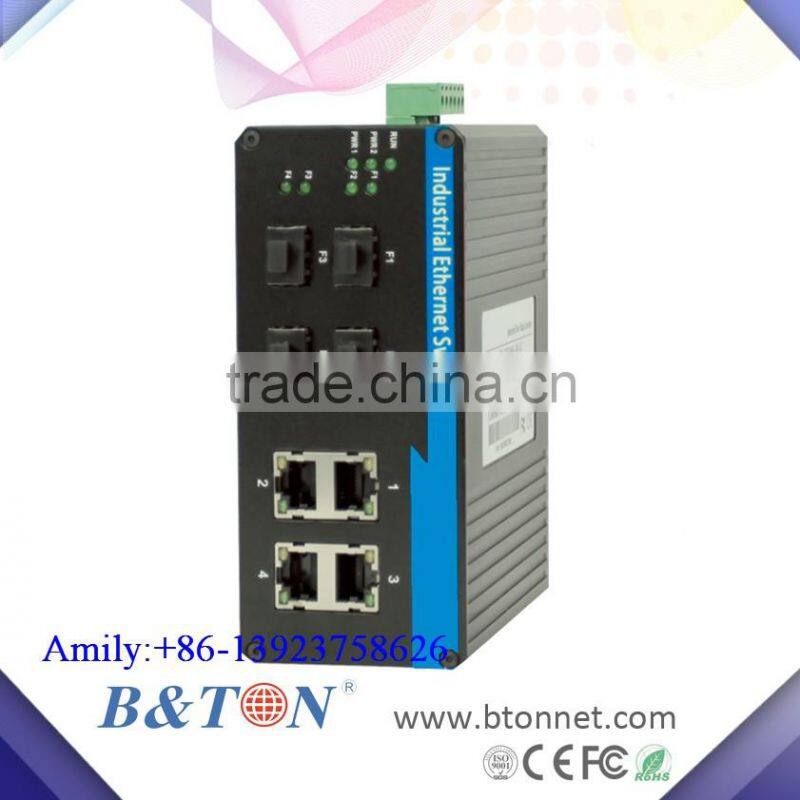

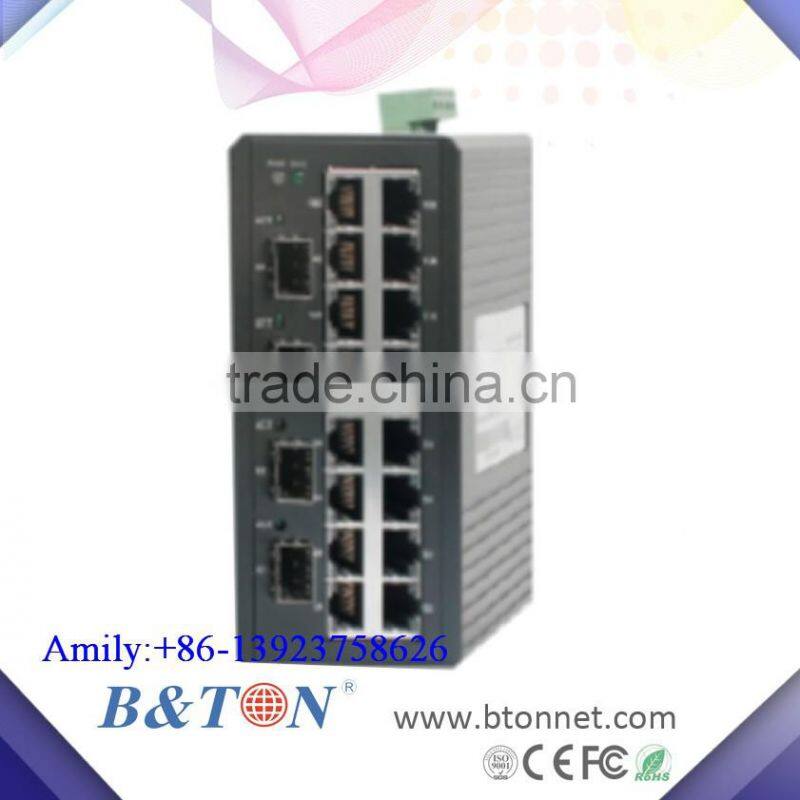

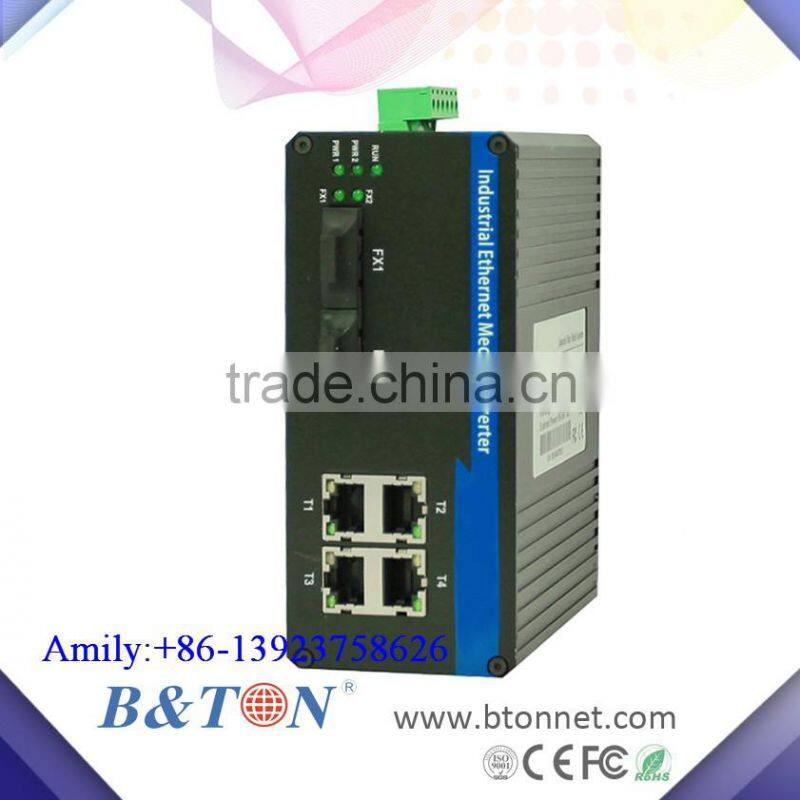

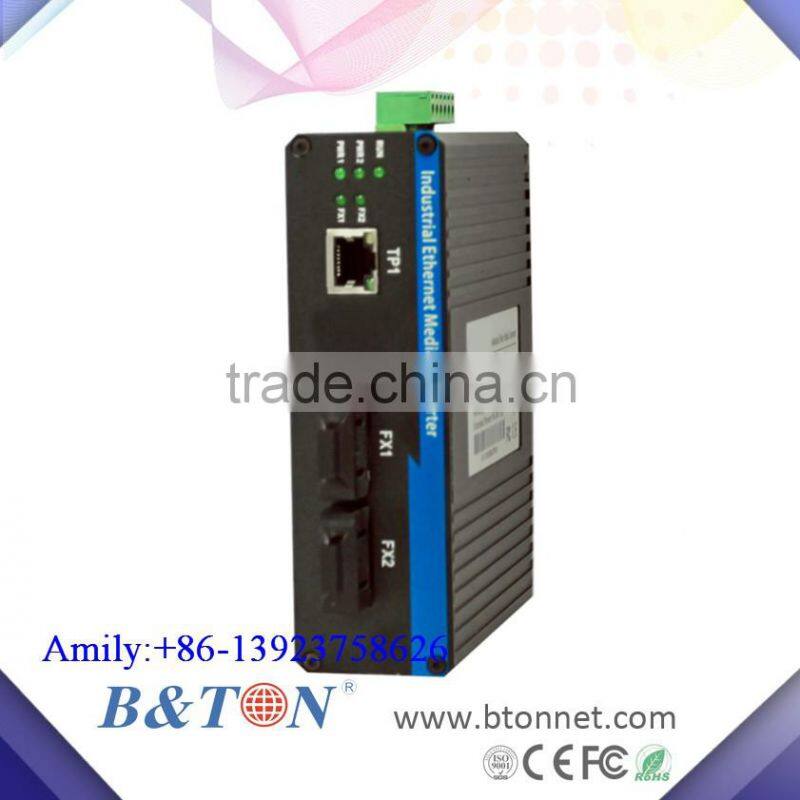

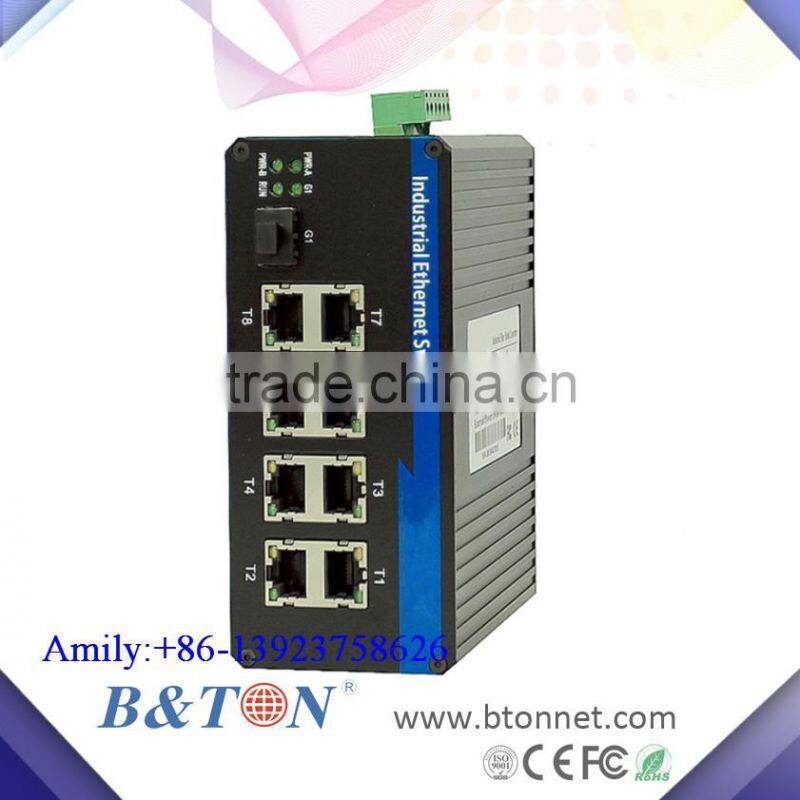

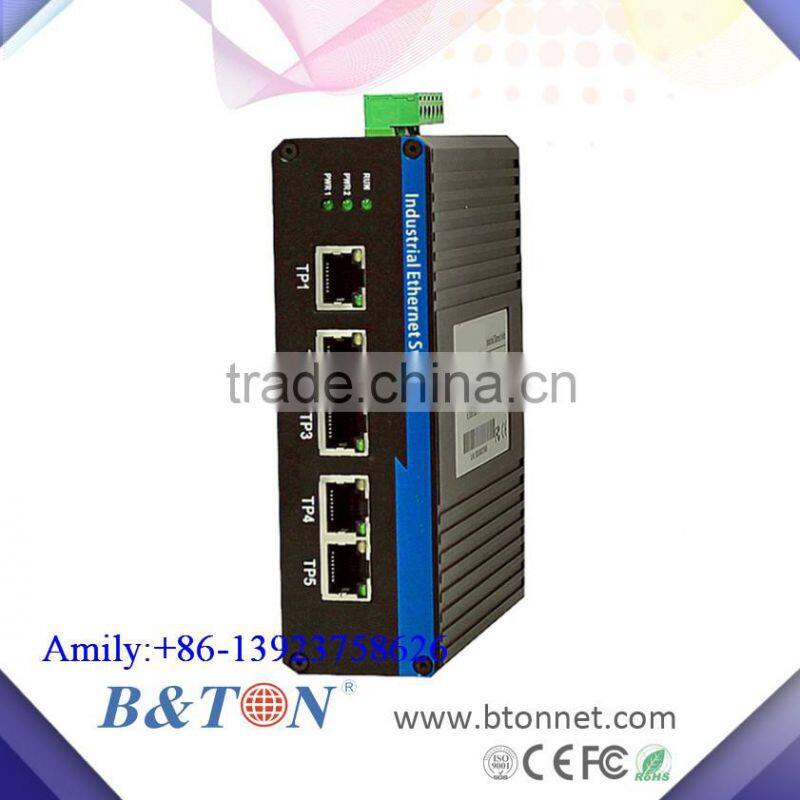

Related Products
Packing & Delivery
Our Company

Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
