Specifications
1.4 RJ45 with 1 SFP
2.manufacturer,customized
3.three years warranty free
4.in stock,quick delivery
5.good after sail service
Introduction

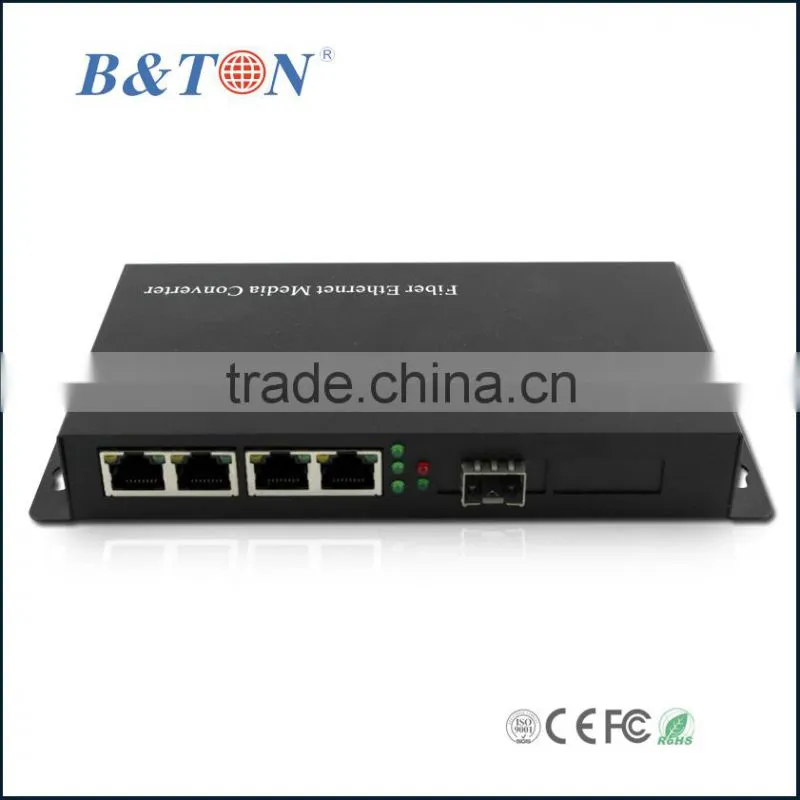

1000M 1SFP Slot and 4 RJ45 Port SFP Fiber Media Converter
Multistage Cascade Ethernet Media Converter
Features
* Often used in series or cascade network
* Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks
* Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism
* Cache size for 512KB, address table size is 4KB
* Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition
* Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
* Supporting full duplex flow control or half duplex back-pressure flow control, with auto negotiation function
* Electricity support 1000Mbps,100Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)
* Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
* Provide double RJ-45 electrical automatic cross connection, connect switchboard, concentrator
* Optical fiber interface properties is good, good compatibility and high reliability
* Provide complete after-sales service and five years for maintenance services
Situations
* Intelligent transportation supervisory system(ITS)
* High-speed Way supervisory/Tele-Communication System)
* Large corporations, network security monitoring system, multifunction system
* Long-distance Muti-media Schooling, Campus monitoring, long-distance broadcast television transmission system
Technical parameter
|
Network Media |
10Base-T or 100Base-TX or 1000Base-TX to 1000Base-FX |
Forwarding Mode |
Store-And-Forward Architecture |
Ethernet Rate |
10/100M or 10/100/1000M |
Network Protocol |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Optical Fiber |
Dual fiber or Single fiber |
Optical Distance |
0~120km |
Power Supply |
DC5V1A or 5V2A |
Power Consumption |
3.5 w (Input:DC5V 1000mA) |
Lightning Protection |
Multi-level protection (3000V) |
Working Environment |
0~70℃ |
Certification |
CE,FCC,RoHS, ISO9001 |
Order Information
| Part Number | Description |
| BT-950SFP-4FE | 1SFP+4RJ45,10/100Mbps |
| BT-950SFP-4GE | 1SFP+4RJ45,10/100/1000Mbps |
Warranty
B&TON Products are with good quality, all materials are new provided, 3 years warranty with good after-sale service.We promise all B&TON products can do good jobs to you and your customers!
Packaging & Shipping
* Standard anti-static packaging, One box for 1 piece media converter, 1 piece power adapter, 1 piece brochure.
* 1~3 working days for production, Shipped by DHL/Fedex/TNT/UPS/EMS/Bangda,etc
Our Services
3 years warranty for B&TON converters
Direct technical support from B&TON Factory
Company Information
B&TON designs and manufactures fiber media converters, digital video converters and optical transceiver modules in fiber-optic communication field. All of these products are widely applied in industries like Telecom. traffic, government organization, campus Network , oil industry, electric power system, and public security. etc. B&TON's high-reliability fiber connectivity products can make secure and reliable connectivity solutions across multiple locations; securely transmit critical and sensitive information; remotely monitor and control networked devices and appliances, and more. With many years extensive experience of highly skilled individuals, combined with B&TON's customer-centric focus, that enables the company to establish some of the best design and development practices in the industry, driving innovation and unprecedented quality. B&TON is based in Shenzhen, and has twelve offices in domestic China, such as Beijing, Shanghai, Changsha, Wuhan, Chengdu, Xi'an, etc. All products are manufactured in Shenzhen. B&TON has built a reputation of reliable products for Network and CCTV business. Every employee at B&TON is involved in delivering high-quality, user-oriented fiber access solutions. By building strong relationships with our end-users and understanding the challenges they face, B&TON engineers design products and features that provide value to our customers.
