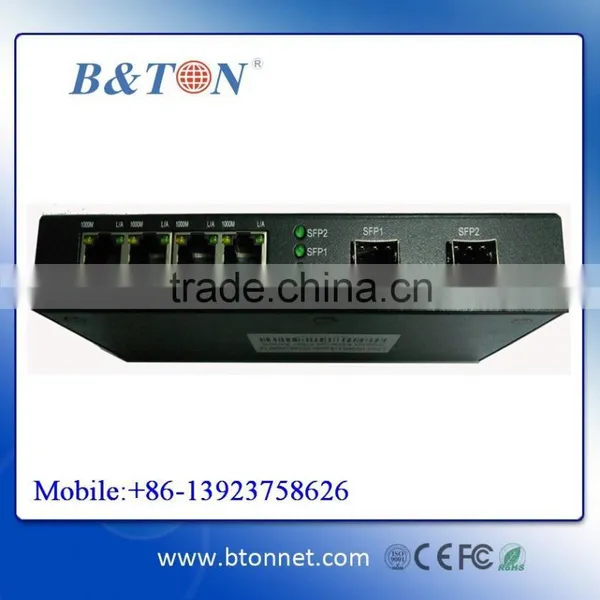

SFP RJ45 to Fiber ethernet media converter  Fiber switch makes full use of advanced optic transmission technology to convert Ethernet signal to optic type and transmit signal over long distance. This kind of media converter can extend the transmission distance to 2 kilometers (multimode) or 120 kilometers(single mode), also achieves the function of Ethernet switches. It is an economical solution to employ this kind of media converter on networking transmission .

1. In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX and IEEE802.3z 1000Base-LX standard.

2. Support 1k MAC address.

3. Power and link LED indicators.

4. Back pressure flow control for full duplex IEEE 802.3X and half duplex.

5. Automatic identification of MDI/MDI-X cross line.

6. Support max forwarding packet length 1552/ 1536 bytes option.

7. Can be rack mounted in 2U 14 slots rack.

8. In conformity to safety code of FCC and 15 CLASS A and CE MARK.

Technical Parameters

1. Standard Protocol: IEEE802.3 10 Base-T standard

    IEEE 802.3u 100Base-TX/FX standard

2. Connector:Two UTP RJ-45 connector, one SC/ST connector

3. Operation mode: full duplex mode or half duplex mode

4. Power supply parameter: outside: 5V DC 1A

5. Environmental temperature: 0°C-70 °C

6. Relative humidity: 5%-90%

7. UTP cable: Cat5 UTP cable

8. Transfer fiber:

     multimode: 50/125, 62.5/125 or 100/140μm

     single mode:8.3/125, 8.7/125, 9/125 or 10/125μ

    Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.

Dimentions:

229x122x50mm for packing, 94x70.6x26.5mm for device

Power Supply: American Standard, British Standard, European Standard can be offered.

Shippment:International Express: UPS,TNT,DHL,FEDEX, EMS. It takes 2~7 days!

Our advantage:

1. Best Solution with good chipset;
2. Good material;
3. Good quality of power supply ( working more than 3-4 years);
4. No data package loss;
5. 3 years warranty;
6. Customization;
7. OEM Service;
8. Best aftersale service;
9. Offer the whole technical support;
10. Prompt online Response.

OEM and ODM

OEM/ODM order is available.

Warranty:

All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
