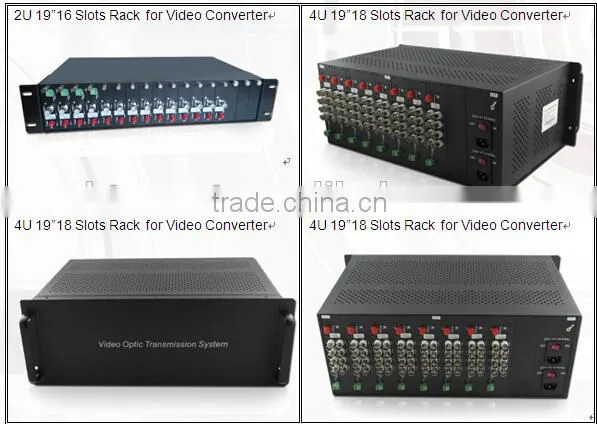

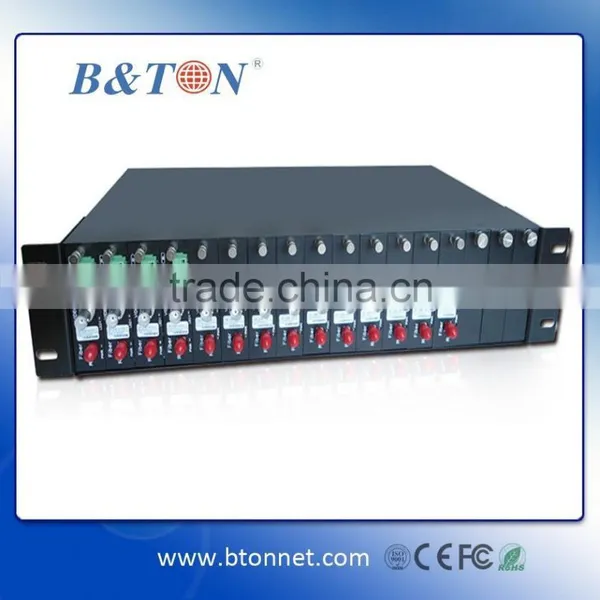

2U Rack Mount Chassis 19" for Video Fiber Transmitter and Receiver
1.19inch 2U rack-mount chassis
2.manufacture
3.three years replacement and lifetime maintain free
4.good after sale-service
Descriptions:
Rack-mounted chassis is a centralized and economical equipment of gather Ethernet media converter together. It covers two styles, 16 slots and 18 slots, mostly used in plant room with centralized dual power supply and automatic switch. Normal size are 2U and 4U, 2U is for 16 slots, 4U for 18 slots
Features:
1.Main and vice power equipment ensure system work smoothly.
2.Function cards supports hot-plugging and each card realizes its corresponding function independently.
3. Double power panel slot supports two power supply units backup for each other.
4. It would enhance the reliability of the rack.
5.Supports 220V/110V AC switch mode power supply (SMPS) design.
6. Power supply and other parameter state indicator LED can monitor the operation condition of system.
7.Up to 16 or 18 available card type video converter module slots, 16 or 18 slots.
8.With stable performance, large capacity of power supply, and easy for management and maintenance.
9. All of the modules installed in the chassis are hot-swap, which makes it unnecessary to power-down the chassis when replacing modules.
10.Support telecommunication operation requirement completely
11.Structure : 2U and 4U Rack
12.Ripple wave : ≤20mv
13.Power input : AC85~265V 50/60HZ or 48V
14.Power output : DC5V
15.Power adapter: single power supply or dual power supply
16.Power: 95W
17.Operating Temperature : -10~55℃
18.Operating Humidity : 5%~95%
19.Storage Temperature : -40~70℃
20.Storage Humidity : 5%~95% no condensing
21.Dimension: 490mm x 230mm x 90mm for 2U Rack
22.430mm x 260mm x 180mm for 4U Rack

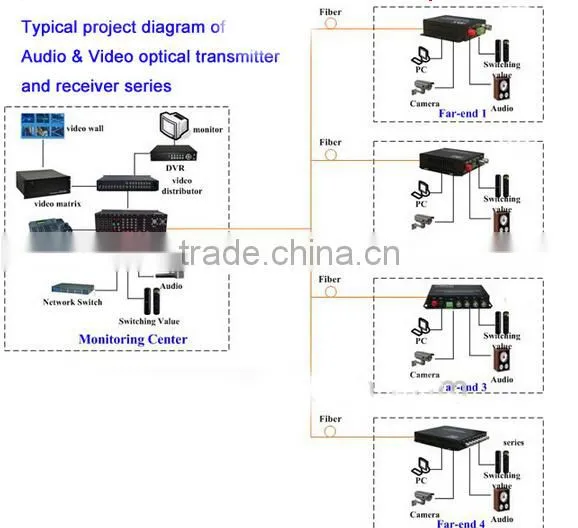

Application&solution:
Our workshop& Quality Control System:
Certificates:
Hot-selling:
Standard Package:
Shipping & Payment:
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
