Factory price 5V1A universal power adapter
- 20000 Piece / Pieces per Month
- Shekou Port Yantian Port
- Credit Card
-
ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
-
MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
-
Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
-
Power Supplies TVD1.3-15-03 Original Stock
-
10W 2.5KV Isolation Wide Input AC/DC Converters
-
30W Wide Voltage Input DC/DC Converters power supply
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SX | Model Number: | SX05-MiUL/SX05-MiVDE |
| Output Power: | 1 - 50W | Output Type: | Other, Single, DC | Input Voltage: | 110V |
| Output Voltage: | 5V | Output Frequency: | 50/60Hz | Output Current: | 0A-1A |
Product Description
product Description
Specification
Unleaded environmental protection
Fire rating :94V-1
Lightning:2-4KV
Energy Star:Level V
Over voltage , over current, over- load ,Short Circuit Protection
Factory price 5V1A universal power adapter
5W series power supply | |
Model: SX05A-MiUL SX05A-MiVDE | |
Input Characteristic | |
Input Voltage | 100V-240VAC |
Input Frequency | 50-60HZ |
Input Frequency Range | 47Hz- 63Hz |
Input Efficiency | >68.2% |
Input AC Plug | US/EU/Japan/korea/China |
Output Characteristic | |
Output Voltage | 5V±0.3V |
Total Output Power | 5W |
Output Current | 1A |
Output ripple /Noise(MV) | <80MV |
HI-Pot test | 3000 VAC 10mA(max) |
Insulation Resistance | 500Vdc/20MΩMin/1S |
Mechanical Characteristics | |
Dimension | 60.5*63.68*39mm |
AC type | Wall mounted, 2 pin |
Case material | PPO,PC, PC+ABS, or equivalent |
Connector DC | 5.5*2.5*10mm |
Drop Test | Drop each side from 1M height to the hardwood which at least 13mm thick,total 6 times. |
Environment | |
Storage Temperature Range | -20 to +60℃ |
Operating Temperature Range | 0 to +35℃ |
Storage RH Range | 5 to 95% |
Operating RH Range | 20 to 90% |
Burn-in | 48 hours |
M.T.B.F(hrs) | 2000 |
Others | |
Protection | Over Current Protection |
Over-load Protection | |
Short Circuit Protection | |
Application | Mobile phone, MP3/MP4 players, toy, router laptop computer, CCTV or digital camera, cameras, LED and light bar power supplies ,Networking Modem Tablet,Bluetooth headset, Water purifier, DVR Set-top box, Router, Power Bank ,Electronic cigarette &more |
EMC Standards | EN55022 EN55024 FCC Part 15 |
Packing list | 500*345*290mm 210pcs/carton |
OEM&ODM | Yes |

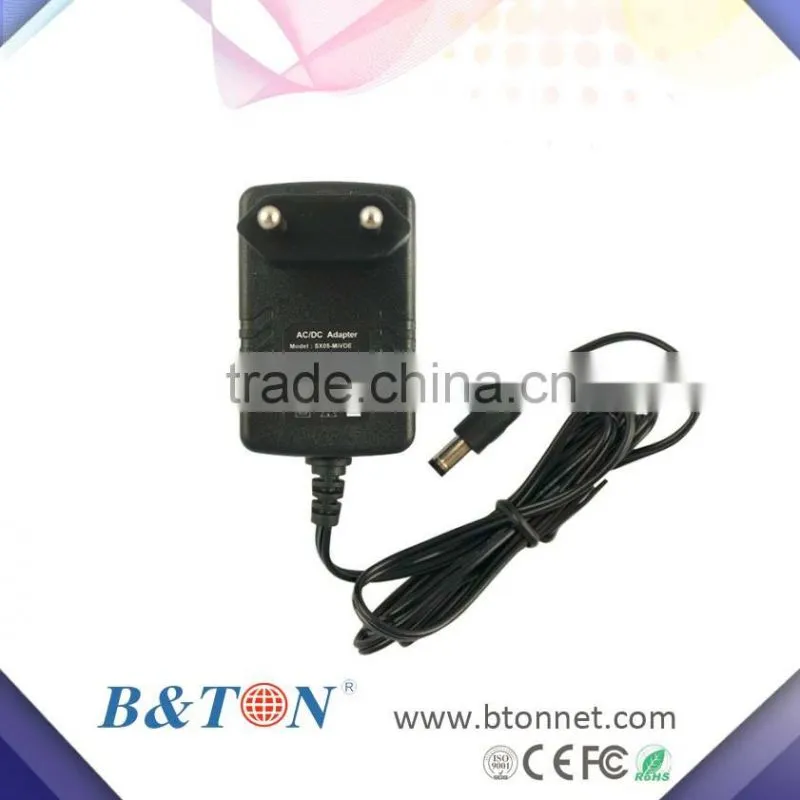

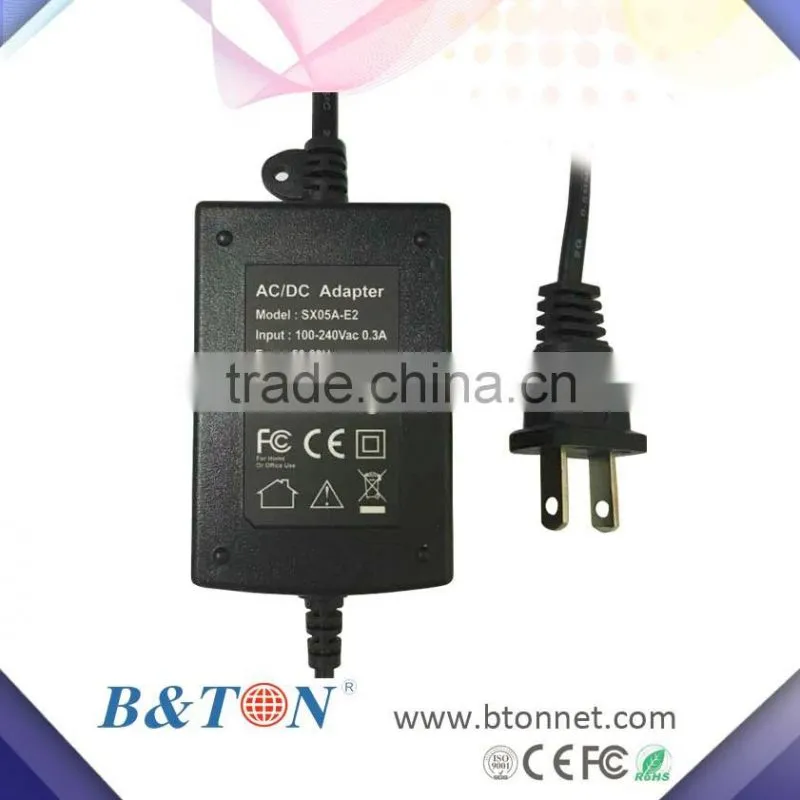

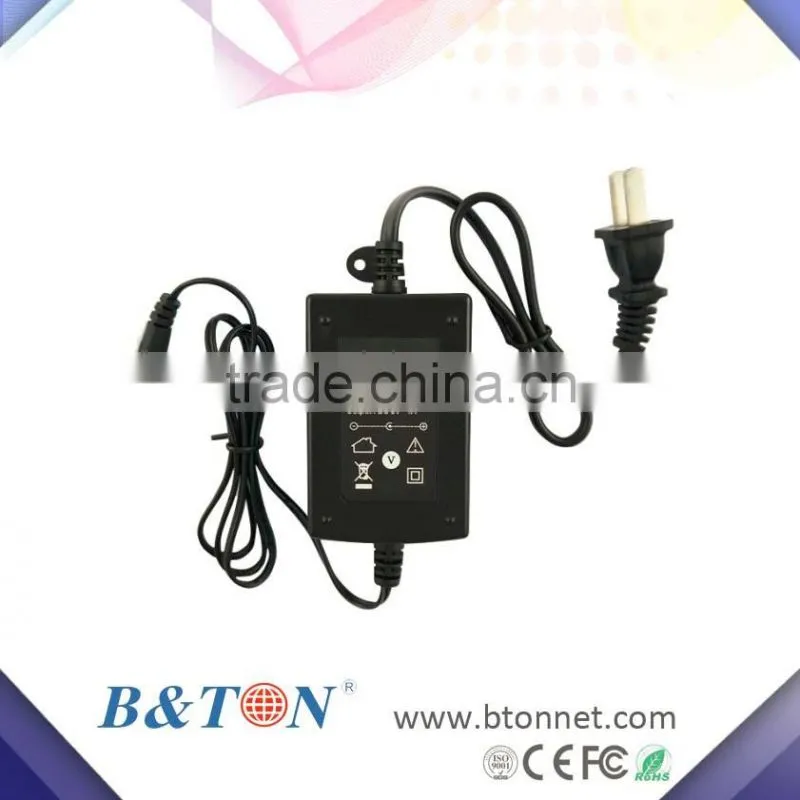

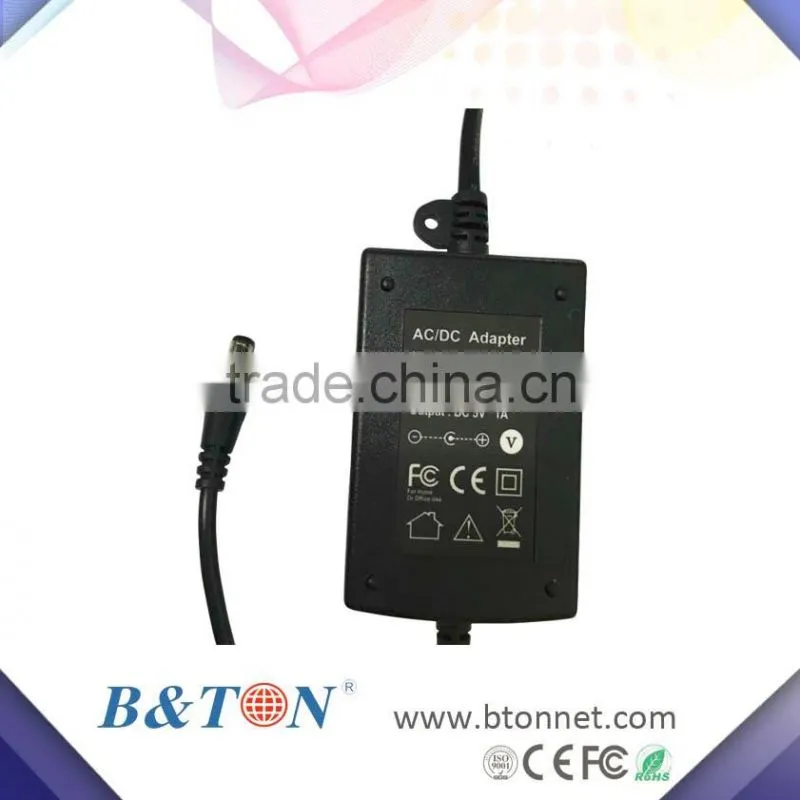

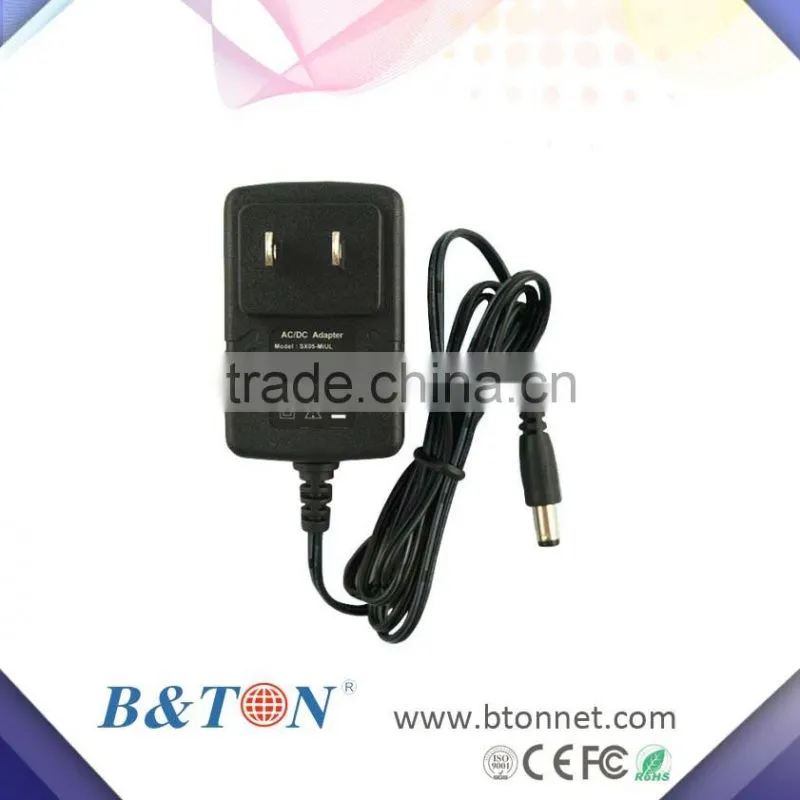

Product pictures
Packaging & Shipping
* PE/polybag/box/customized, accept packing service
* 7-15 working days for production, Shipped by DHL/Fedex/TNT/UPS/EMS/Bangda,etc
Our Services
Warranty
Our Products are with good quality, all materials are new provided, 1 years warranty with good after-sale service.
Company Information
BTON is one of high- tech companies specialized in reasearching ,manufacturing and marketing of optical and fiber communication technologies. Dong Guan Doublex Electronics Industronics Co., LTD is BTON sister company . Doublex company is an experieced manufacturer of power adapters striving for a stable and energy efficient poduct . We have a professional R&D team and can customize products according to our customer's requirements .all power adapter have own certification.Find us, find a trustworthy supplier!
Factory review
Part of our professional Certificate
FAQ:
1. OEM&ODM
2. Medium-sized enterprises, more cost-efficient and less administration fee
3. After-sales service 24/7
4. Offer customized service&production packing service
7. Are you a manufacture?
Yes ,100%.
8.what is MOQ?
100PCS.
9.What is the production lead time?
3-15 working days due to the production schedule.
10.The defective products rate is lower than 3‰
11.Free Samples For DC 5V Power Supply 1A 2A 3A With UL CE FCC , Are Available for Quality Evaluation
