Specifications
1. 5v2A switching power adapter
2.manufacturer,customized
3.1 years warranty free
4.in stock,quick delivery
5.OEM and ODM service
5v 2a ac dc power adapter
product Description
10W series power supply | |
Model: SX10A-E2 | |
Input Characteristic | |
Input Voltage | 100V-240VAC |
Input Frequency | 50-60HZ |
Input Frequency Range | 47Hz- 63Hz |
Input Efficiency | >71% |
Input AC Plug | US/EU/Japan/korea/China |
Output Characteristic | |
Output Voltage | 5V±0.3V |
Total Output Power | 10W |
Output Current | 2A |
Output ripple /Noise(MV) | <80MA |
HI-Pot test | 3000VAC 10mA(max) |
Insulation Resistance | 500Vdc/20MΩMin/1S |
Mechanical Characteristics | |
Dimension | 74.5*49.0*28mm |
AC type | desk-top , 2 pin |
Case material | PPO,PC, PC+ABS, or equivalent |
Connector DC | 5.5*2.5*10mm |
Drop Test | Drop each side from 1M height to the hardwood which at least 13mm thick,total 6 times. |
Environment | |
Storage Temperature Range | -20 to +60℃ |
Operating Temperature Range | 0 to +35℃ |
Storage RH Range | 5 to 95% |
Operating RH Range | 20 to 90% |
Burn-in | 48 hours |
M.T.B.F(hrs) | 2000 |
Others | |
Protection | Over Current Protection |
Over-load Protection | |
Short Circuit Protection | |
Application | Mobile phone, MP3/MP4 players, toy, router laptop computer, CCTV or digital camera, cameras, LED and light bar power supplies ,Networking Modem Tablet,Bluetooth headset, Water purifier, DVR Set-top box, Power Bank ,Electronic cigarette &more |
EMC Standards | EN55022 EN55024 FCC Part 15 |
Packing list | 500*345*290mm 150pcs/carton |
OEM&ODM | Yes |

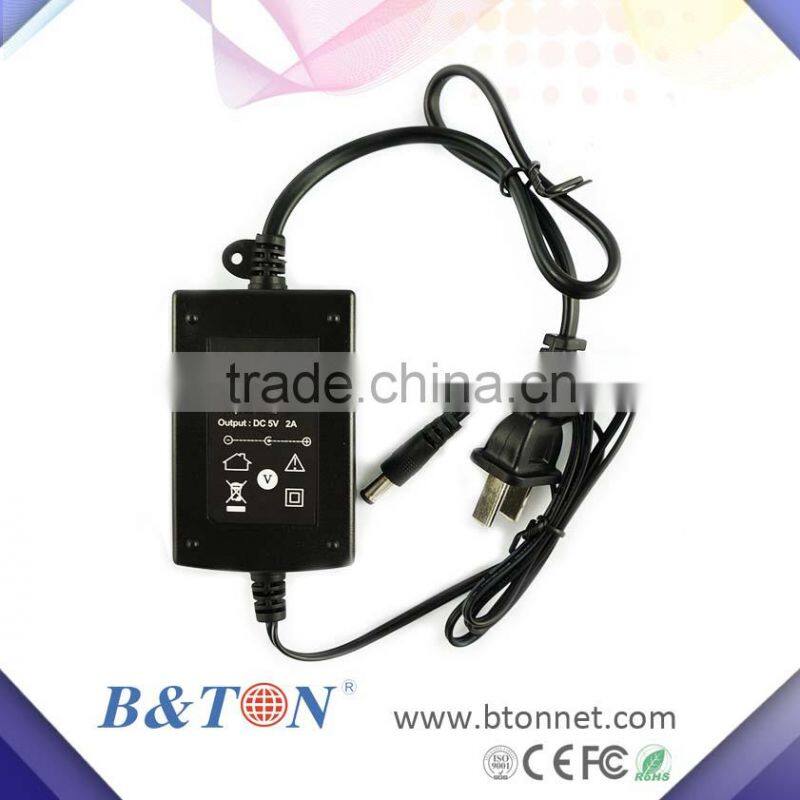

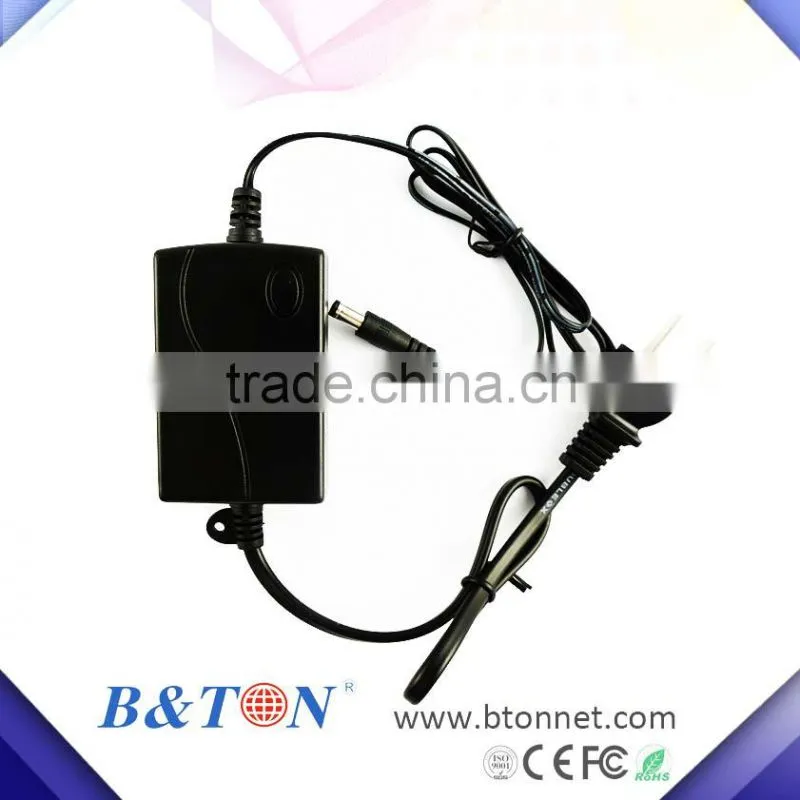

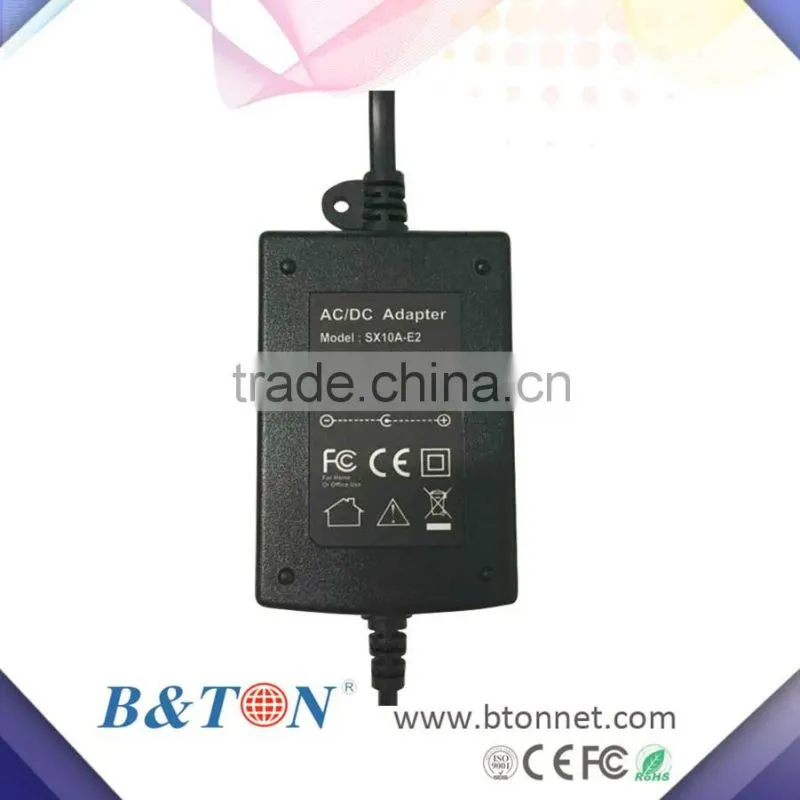

Product pictures

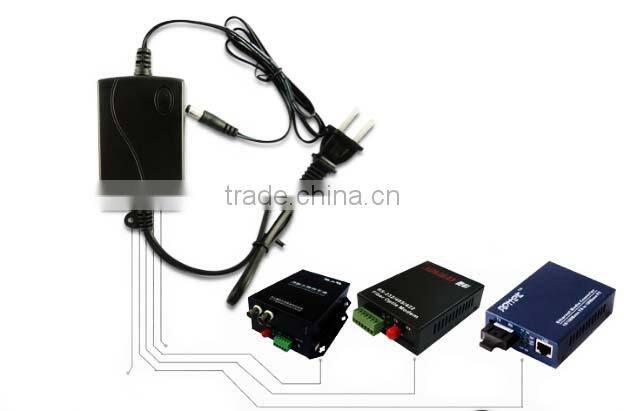

Application
To Power Digital Products
To Power Networking Modem, Hub
To Power CCTV camera , DVR, LED Display, Set-top Box, Speaker, Scanner etc.
Packaging & Shipping
* PE/polybag/box/customized, accept packing service
* 7-15 working days for production, Shipped by DHL/Fedex/TNT/UPS/EMS/Bangda,etc
Our Services
Warranty
Our Products are with good quality, all materials are new provided, 1 years warranty with good after-sale service.
Company Information
BTON is one of high- tech companies specialized in reasearching ,manufacturing and marketing of optical and fiber communication technologies. Dong Guan Doublex Electronics Industronics Co., LTD is BTON sister company . Doublex company is an experieced manufacturer of power adapter and switching power adapter and LED power supply driver etc,striving for a stable and energy efficient poduct .all power adapter have own certification.

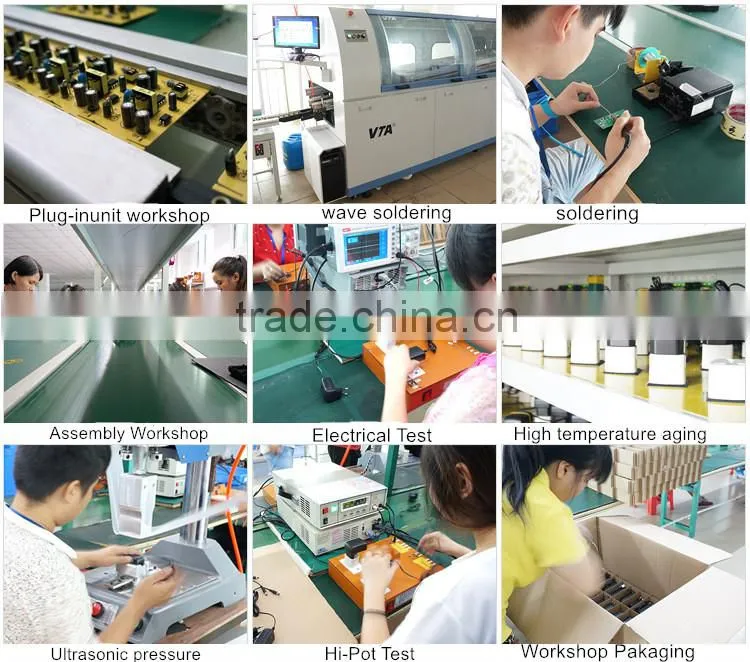

Factory review

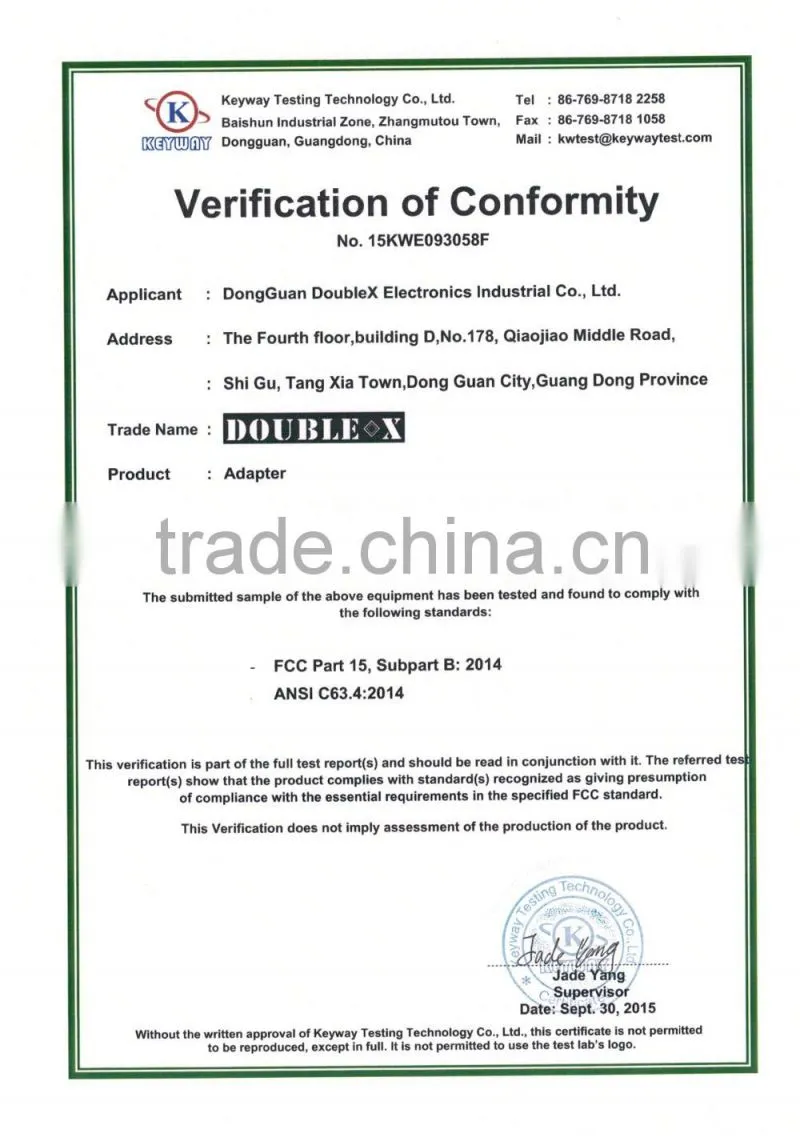

Part of our professional Certificate
FAQ:
1. OEM&ODM
2. Medium-sized enterprises, more cost-efficient and less administration fee
3. After-sales service 24/7
4. Offer customized service&production packing service
7. Are you a manufacture?
Yes ,100%.
8.what is MOQ?
1PCS.
9.What is the production lead time?
3-15 working days due to the production schedule.
Payment
1.We accept paypal ,West Union, TT ,Money Gram.
2.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
Please contact us if our Trademanager is not online.
Skype: cocowei98
Trade manager:cn100226835
Cell Phone Number: +86-18617118649
