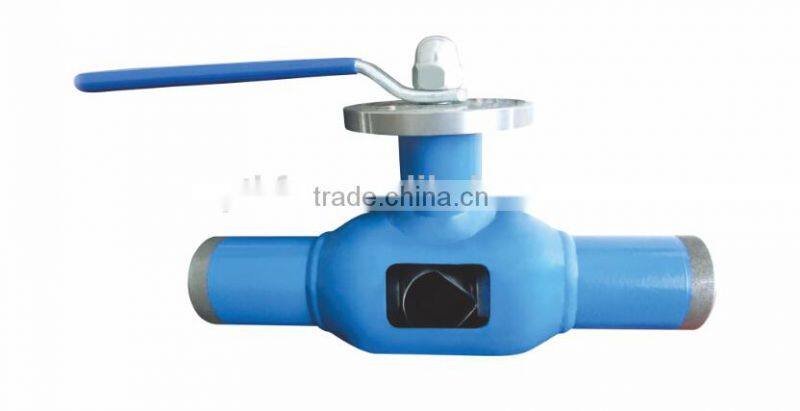

Help CenterTKFM Hot Sale Water Industry Use Flow Balance Fully Welded Ball Valve
Related Products
-
2015 TKFM Hot Sale Weld Connection Handle Lever Fully Welded Ball Valve for Heat SupplyUS$ 13 - 380MOQ: 10 Sets -
TKFM Factory Directly Sale City Gas Oil Station Use Pneumatic Fully Welded Ball ValveUS$ 27 - 1,938MOQ: 10 Sets
-
2015 TKFM Natural Gas Pipeline Use 6 Inch Gas Ball ValveUS$ 300 - 3,000MOQ: 1 Set
-
TKFM Hot Sale City Gas,oil, Heating Used Low Pressure Trunion Mounted Ball ValveUS$ 3,015.87 - 14,825.4MOQ: 1 Set
-
2015 Hot Sale City Heat and City Gas Supply Use 4 Inch Flange Ball ValveUS$ 210 - 68,900MOQ: 1 Set

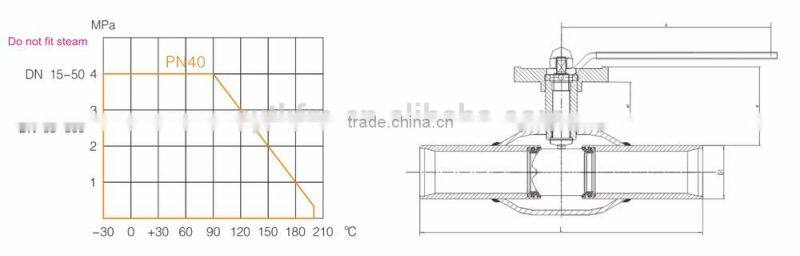

| DN | NPS | PN | D1 | S | H | H1 | A | L | Weight/kg | |
| CN | EN | |||||||||
| 15 | 3/8 | 40 | 18 | 21.3 | 2 | 100 | 18 | 140 | 230 | 0.9 |
| 20 | 3/4 | 40 | 25 | 26.9 | 2.3 | 100 | 18 | 140 | 230 | 0.9 |
| 25 | 1 | 40 | 32 | 33.7 | 2.6 | 105 | 36 | 150 | 230 | 1.2 |
| 32 | 2001/1/4 | 40 | 38 | 42.4 | 2.6 | 105 | 37 | 150 | 260 | 1.5 |
| 40 | 2001/1/2 | 40 | 45 | 48.3 | 2.6 | 125 | 56 | 190 | 260 | 2.4 |
| 50 | 2 | 40 | 57 | 60.3 | 2.9 | 130 | 56 | 190 | 300 | 3.1 |
| 65 | 2002/1/2 | 25 | 76 | 76.1 | 2.9 | 180 | 72 | 280 | 300 | 4.7 |
| 80 | 3 | 25 | 89 | 88.9 | 3.2 | 190 | 78 | 280 | 300 | 5.9 |
| 100 | 4 | 25 | 108 | 114.3 | 3.6 | 220 | 95 | 280 | 325 | 9 |
| 125 | 5 | 25 | 133 | 139.7 | 4 | 245 | 98 | 420 | 325 | 13.5 |
| 150 | 6 | 25 | 159 | 168.3 | 4.5 | 265 | 104 | 600 | 350 | 18.8 |
| 200 | 8 | 25 | 219 | 219.1 | 4.5 | - | 74 | - | 400 | 45 |
| 250 | 10 | 25 | 273 | 273 | 5 | - | 90 | - | 530 | 89 |
| 300 | 12 | 25 | 325 | 323.9 | 5.6 | - | 115 | - | 550 | 140 |
| No. | Part name | Material | |||
| 1 | Body | Carbon steel St37.8 | |||
| 2 | Neck | PTFE+SPCB | |||
| 3 | Ball | 304 stainless steel | |||
| 4 | Stem | 2Cr13 | |||
| 5 | Seat | 25%C+PTFE | |||
| 6 | Metal washer | 60Si2Mn | |||
| 7 | Spring | 60Si2Mn | |||
| 8 | "O" Ring | FPM | |||
| 9 | End piece | Carbon steel St37.8 | |||
| 10 | Handle | Carbon steel +HCr | |||
| 11 | "O" Ring | FPM | |||
| 12 | Gland | 304 stainless steel |
Five Advantages:
1. integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. can be directly buried without need of a high ground well,saving the engineering cost.
4. both valve and pipeling are made of the same material, without the condition of uneven sterss.
5. in multiple connection combination, for use with special working conditions
This series of products are reliable sealing performance, maintenance-free for 20 years.Sphere unique V-shaped spherical mouth to have good performance over the entire range of adjustment, the full realization of equal percentage adjustment. HVAC systems is to solve the problem of water balance of new products. The main use of natural gas mains, branch pipelines, city gas compressor stations, gas pipelines, gas equipment for urban heat main branch pipelines.
(1) Shell Hydrostatic Test
| ANSI B 16.34 Section 7.1 | |||||||
| Valve Size NPS | Test pressure | Test Time. Sce | |||||
| Below DN50 | 1:5 times the 100°F | 15 Sce | |||||
| DN65~DN200 | Rating of ANSI Class | 60 Sce | |||||
| Up DN250 | Max. Operating Pressure | 180 Sce | |||||
| Test pressure should be above 1.5 times than the valve's Max work pressure (100F) | |||||||
(2) Seal Hydrostatic Test
The pressure should be more 1.1 times than working pressure by seal hydrastatic test
| ANSI B 16.34 Section 7.2 | |||||||
| Valve Size NPS | Test pressure | Test Time. Sce | |||||
| below DN50 | 1:1 times the 100°F | 15 Sce | |||||
| DN65~DN200 | Rating of ANSI Class | 30 Sce | |||||
| above DN250 | Max. Operating Pressure | 60 Sce | |||||
| Test pressure should be more 1.5 times than the valve's Max work pressure (100F) | 180Sce | ||||||
(3) Seal Air Test
Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.
1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.
2.Market, technical support and after-sale service within 24 hours.
3. You can order your own configuration.
A: Manual B: pneumatic C: electric D: bare shaft E: disc with pin F: disc without pin G: double half shaft H: one piece body I: two pieces body J: logo
Fully welded ball valve - Company advantages:
1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
1.What's payment terms?
30% down payment, 70% balance paid before shipment.
2.What's MOQ?
One set.
3.How control the quality of ball valve?
Select high quality raw material
Strict required during machining
Seat material comply with food grade
Tested twice to insure zero leakage
4.Delivery time?
15-25 days after received the advance payment.
