handle standardwater treatment supplier water on off fully welded ball valve
- 5000 Set / Sets per Month
- DALIAN
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Medium Pressure |
Power: | Manual | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | DN20-150(3/4"-6") | Place of Origin: | Liaoning, China |
Model Number: | HQG61FC-25 | Brand Name: | TKFM |
Product Description

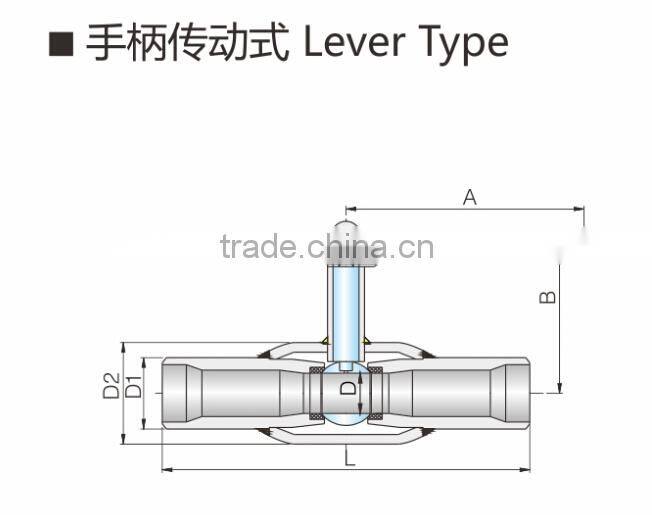

unit:millimetre(mm) | ||||||||
Size | NPS | A | b | L | D | D1 | D2 | |
CN | EU | |||||||
DN15 | 3/8 | 129 | 64 | 210 | 15 | 18 | 21.3 | 42 |
DN20 | 3/4 | 129 | 64 | 230 | 15 | 25 | 26.7 | 42 |
DN25 | 1 | 159 | 76 | 230 | 20 | 32 | 33.4 | 48 |
DN32 | 1-1/4 | 159 | 85 | 260 | 25 | 42 | 42.2 | 60 |
DN40 | 1-1/2 | 230 | 95 | 300 | 32 | 48 | 48.3 | 76 |
DN50 | 2 | 230 | 100 | 300 | 40 | 57 | 60.3 | 89 |
DN65 | 2-1/2 | 300 | 159 | 300 | 50 | 76 | 76.1 | 114 |
DN80 | 3 | 300 | 170 | 300 | 65 | 89 | 88.9 | 140 |
DN100 | 4 | 450 | 192 | 325 | 80 | 108 | 114.3 | 185 |
DN125 | 5 | 450 | 208 | 325 | 100 | 133 | 141.3 | 216 |
DN150 | 6 | 450 | 241 | 350 | 125 | 159 | 168.3 | 219 |

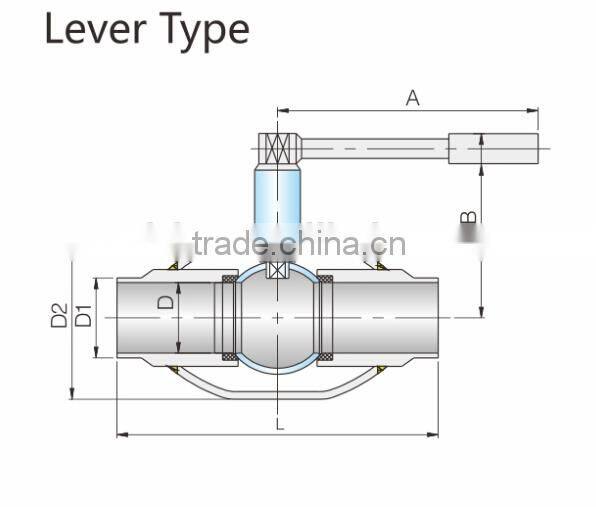

unit:millimetre(mm) | ||||||||
Size | NPS | A | b | L | D | D1 | D2 | |
CN | EU | |||||||
DN15 | 3/8 | 129 | 90 | 210 | 15 | 18 | 21.3 | 42.7 |
DN20 | 3/4 | 159 | 103 | 230 | 20 | 25 | 26.7 | 48 |
DN25 | 1 | 159 | 107 | 260 | 25 | 32 | 33.4 | 60 |
DN32 | 1-1/4 | 230 | 120 | 260 | 32 | 42 | 42.2 | 76 |
DN40 | 1-1/2 | 230 | 126 | 300 | 40 | 48 | 48.3 | 89 |
DN50 | 2 | 300 | 177 | 300 | 50 | 57 | 60.3 | 114 |
DN65 | 2-1/2 | 300 | 186 | 300 | 65 | 76 | 76.1 | 140 |
DN80 | 3 | 400 | 210 | 300 | 80 | 89 | 88.9 | 165 |
DN100 | 4 | 400 | 214 | 325 | 100 | 108 | 114.3 | 216 |
DN125 | 5 | 450 | 220 | 350 | 125 | 133 | 141.3 | 219 |
DN150 | 6 | 450 | 280 | 490 | 150 | 159 | 168.3 | 355 |
Five Advantages:
1. integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. can be directly buried without need of a high ground well,saving the engineering cost.
4. both valve and pipeling are made of the same material, without the condition of uneven sterss.
5. in multiple connection combination, for use with special working conditions
Taike full-welded flow adjustment balancing valve is designed speciallly for balancing the flow in the adjustment of the whole system of a thermo-power pipe-net and every barnch pipeline and the sphere uses an unique V type spherical mouth so as to offer a good adjustability within the integral range and completely realize the ISO -percentage adjustment, a new product to settle the problem of waterpower balance in the heating-ventilating system.
(1) Shell Hydrostatic Test
ANSI B 16.34 Section 7.1 | |||||||
Valve Size NPS | Test pressure | Test Time. Sce | |||||
Below DN50 | 1:5 times the 100°F | 15 Sce | |||||
DN65~DN200 | Rating of ANSI Class | 60 Sce | |||||
Up DN250 | Max. Operating Pressure | 180 Sce | |||||
Test pressure should be above 1.5 times than the valve's Max work pressure (100F) | |||||||
(2) Seal Hydrostatic Test
The pressure should be more 1.1 times than working pressure by seal hydrastatic test
ANSI B 16.34 Section 7.2 | |||||||
Valve Size NPS | Test pressure | Test Time. Sce | |||||
below DN50 | 1:1 times the 100°F | 15 Sce | |||||
DN65~DN200 | Rating of ANSI Class | 30 Sce | |||||
above DN250 | Max. Operating Pressure | 60 Sce | |||||
Test pressure should be more 1.5 times than the valve's Max work pressure (100F) | 180Sce | ||||||
(3) Seal Air Test
Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.
1.100% factory price, because we are direct producer of butterfly valves, check/non-return valves, gate valves and so on.
2.Market, technical support and after-sale service within 24 hours.
3. You can order your own configuration.
A: Manual B: pneumatic C: electric D: bare shaft E: disc with pin F: disc without pin G: double half shaft H: one piece body I: two pieces body J: logo
Fully welded ball valve - Company advantages:
1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
1.What's payment terms?
30% down payment, 70% balance paid before shipment.
2.What's MOQ?
One set.
3.Delivery time?
15-25 days after received the advance payment.
Welcome to visit our factory and negotiate
Come on! Don't hesitate and send your requirements to us. Thanks for your time
OEM is accepted, we have enough self-confidence in our full welded ball vavle
Email me your inquiry, will response within 24 hours
