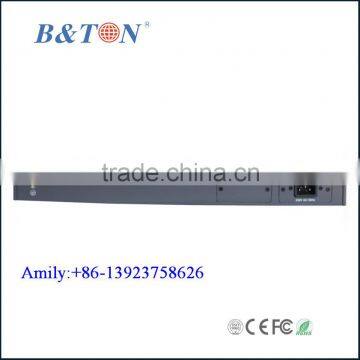

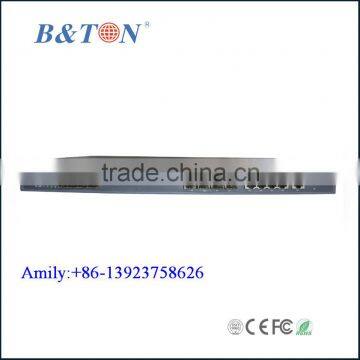

Optic PON Device FTTO EPON OLT 4 Port 1U OLT Optic GEPON OLT FTTH 4 EPON Port for PON+LAN
1.4PON ports (1.25G)
2.8 GE Combo port (electronic ports and optical ports options)
3.1 console port
BT-M604T-D is a miniaturization and modularization GEPON OLT, broadband fiber access system platform, developed by GL. It is fully compliant to IEEE802.3-2005 and Chinese technical requirements of Ethernet Passive Optical Network (EPON). This product supports integrated access service, such as broadband surf-netting, IP voice, IPTV, CATV and etc.
2,Equipment Components
Index |
Component name |
Full capacity |
Specification |
1 |
subrack |
1 |
OLT equipment chassis |
2 |
SWA card |
1 |
1 FE port,1 debug serial port, hot-swappable cards,10Gigabit non-blocking switching. |
3 |
EP4 cards |
3 |
Hot-swappable 4-port PON cards, conformance with IEEE802.3 2005 EPON standard, support up to 20 km transmission distance. |
4 |
HUP card |
1 |
Hot-swappable uplink card, 4-port SFP and 1-port XFP , support 4GE+1XG |
5 |
FAN card |
1 |
FAN card |
6 |
PWR card |
1 |
Power card, support 220V AC power supply/48V DC power supply dual input. |
3,Hardware features
Hardware characteristics | ||
Devices parameter |
Dimensions (mm) |
482 * 43.6* 385 (W*H*D) |
Weight |
3.2Kg |
|
Rating Power consumption |
≤80W |
|
working environment |
Environment temperature:0℃~+45℃;Environment humidity:10%-90%,no condensation |
|
Storage environment |
Environment temperature:-25℃~+70℃;Environment humidity:10%-90%,no condensation |
|
Power |
DC |
-46~-50.4V DC |
AC |
90~264V AC |
|
4,Advanced features
Character |
Indicator |
Switch functions |
10Gigabit switch backplanes(the bandwidth of switch backplane is 60Gbps); non-locking wire speed switch ability; 8K MAC address table; 2K multicast table; 4K VLAN(802.1Q); Support link aggregation of 4 GE port and 1 10GE port(IEEE502.ad). Support 3 trunk groups; Support port-based mirror. |
VLAN |
Support 4K IEEE802.1Q VLAN,VLAN Stacking/Trunk /Translation,QINQ and etc. |
RSTP |
Support RSTP |
IGMP |
Support IGMPv1 V2 protocol and IGMP snooping/proxy |
QoS and ACL |
Support CAR(Committed Access Rate).The granularity of traffic speed limit is 64Kbps; Support tagging priorities based on port ID, MAC address, VLAN , 802.1p.,diffserve and IP TOS remark. Support flexible queue scheduling algorithms, user can set algorithms based on port and queue. Support four queue scheduling strategies: strict , weight ,rotate, and strict+weight. Provide filter function based on source MAC address , source IP address, destination IP address, source port and destination port etc. Support QoS Profile management, Users can define their own QoS service plan. |
Storm inhibit |
Support broadcast, multicast and DLF broadcast storm inhibition. Broadcast storm inhibition is according to the number of packets per second (PPS). |
Flow control |
Support IEEE802.3X flow control under the full-duplex. Support back pressure type flow control under half-duplex mode. |
Encryption and safety |
Support LLID MAC address binding, control ONU register. To prevent illegal ONU accessing. Support segregation of control under the same EPON ONU network. Support encryption startup control configuration |
Line diagnosis |
Support PON line diagnosis by ping and link test. |
Configuration recovery |
Support ONU offline configuration, configure automatic issued when register |
Management mode |
Telnet,Console; Support in-band and out-band management, SNMP V1/V2 and OAM; |
Management function |
Support device configuration management, performance management, fault management, resource management, safety management etc. Support remote management ONU, remote batch download configuration and Remote automatic software upgrade. Support ONU offline configuration, configure automatic issued when register. Support ONU line diagnosis and distance measurement function. |
Redundant backup |
Support AC/DC double power supply protection. |
Product name |
Product description |

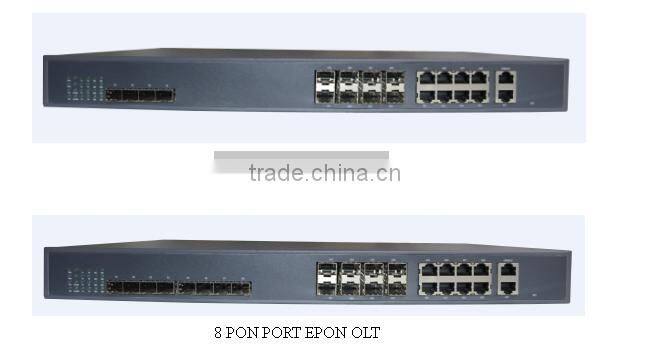

BT-M604T-D |
Cassette OLT (4 downlink 1000M PON ports, 8 uplink GE Combo ports) |
BT-M608T-D |
Cassette OLT (8 downlink 1000M PON ports, 8 uplink GE Combo ports) |
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords
1. Do you accept OEM, such as: print our LOGO?
Yes, OEM order is welcome, Customized Logo is available.
2. What's the method of Payment?
TT, Western Union, Paypal, LC, Escrew.
100% TT in advance.
30% TT Deposit, 70% balance before shipment.
3. What is the delivery time?
Sample: 2 days
Order: Normal 3~7 days
Mass production: It depends on the quantity and the season when you order. Please contact Jessica to ask the lead time.
4. What's the method of shipment?
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days
5. How Can I get a sample to check your quality?
After confirm the price, Please contact the sales(Jessica), she will arrange it for you.
6. How to order?
1) First Please contact the Sales(Jessica) to inquiry the exactly product you need;
2) After confirm the price and quantity, Then Jessica will send you Proforma Invoice(PI);
3) When you receive the PI, please make the payment by TT/Paypal;
4) After we confirm the payment, Jessica will arrange the production;
5) When the goods prepared, Jessica will send it by DHL and send you a tracking No.;
6) Last, you can track the goods on website and receive when it arrived.
7. What's the Warranty?
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
