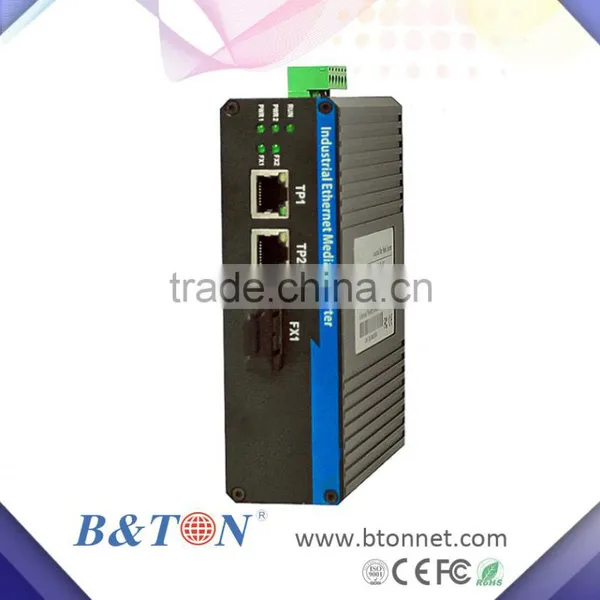

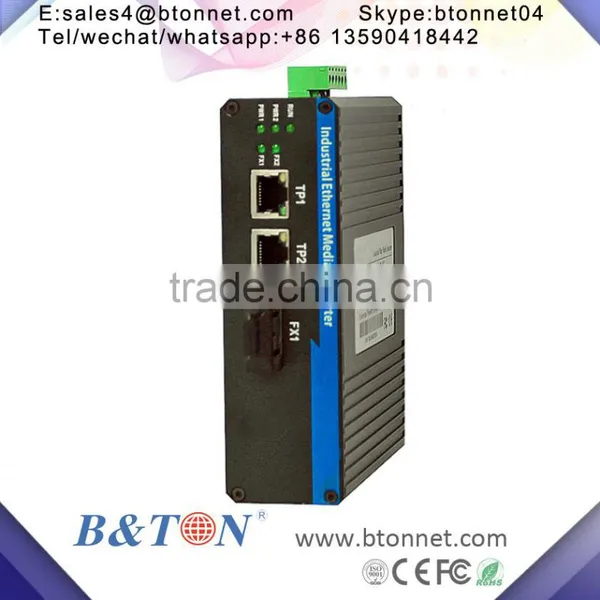

Fast Gigabit 1 SFP + 2 Port POE Layer 2 Managed Industrial Ethernet Switch

Features & Benefits

1 IEEE 802.3af/at PoE compliance 10/100/1000Base-T(X) port and 1 1000Base-SFP port

Up to 30W at 48V DC power output on each PoE port

Super lightening protection, IP40 protection

Excellent heat elimination without cooling fan

Redundant dual DC power inputs

-40-85 operating temperature range

Switch Properties

MAC Table Size: 1K

Packet Buffer Size: 1Mbit

Processing Type: Store and Forward

Exchange Properties: 1488000pps (1000M)

Physical Characteristics

Housing: Aluminum Alloy material with IP40 Protection

Dimension: 138mm(L) X 112mm(W) X 60mm(H)

Weight: 640g

Installation: Din-Rail mounting, Wall mounting

Interfaces

1 RJ45 Port

Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at PoE,

10/100/1000Base-T(X) auto negotiation speed

Full/Half duplex mode

Auto MDI-MDI-X connection

Up to 100M Cat-5 transmission distance

1 Fiber Port

Comply with IEEE802.3u, 100Base-FX

Rate: 1000Mbps

Wavelength: 850nm/1310nm/1550nm

Up to 550M transmission distance with multi-mode

Up to 20Km,40Km,60Km,80Km transmission distance with single-mode

SC/LC interfaces optional

Power

Input Voltage: 48V DC(44-57VDC), Redundant dual inputs

Input Current: <0.5A @48VDC

Overload Current Protection: Present

Reverse Polarity Protection: Present

Redundant Protection: Present

Connection: 1 removable 6-pin terminal blocks

Environmental Limits

Operating Temperature: -40-85

Storage Temperature: -40-85

Ambient Relative Humidity: 5%-95% (non-condensing)

Standard

Safety: UL 60950-1

EMS:

 EN61000-4-2 (ESD),Level 3

 EN61000-4-3 (RS),Level 3

 EN61000-4-4 (EFT),Level 3

 EN61000-4-5 (Surge),Level 3

 EN61000-4-6 (CS),Level 3

 EN61000-4-8,Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

Industry: IEC61000-6-2

Rail: EN50155, EN50121-4

Traffic: NEMA TS-2

Warranty

 5 years
