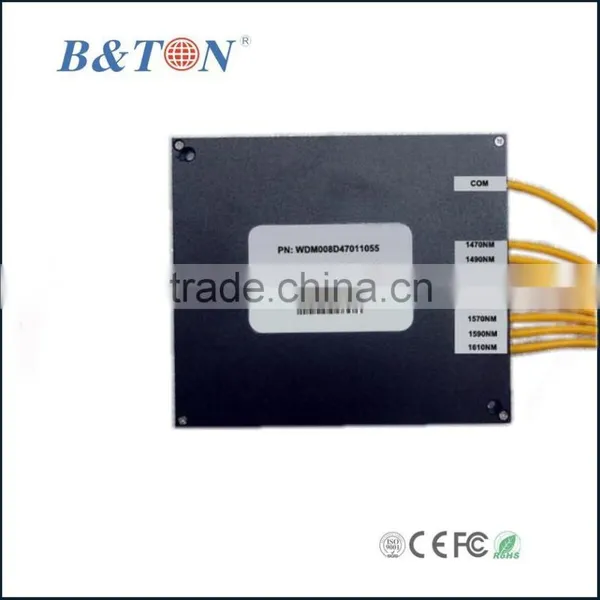

WDM Module CWDM Mux-Demux

WDM Module CWDM Mux-Demux thumbnail-1
WDM Module CWDM Mux-Demux photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BTON
Model Number:
BT-PC
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BTON
Model Number BT-PC

WDM Module CWDM Mux-Demux

Product Description

WDM Module CWDM Mux-Demux



Features:

Low Insertion Loss
Wide Pass Band
High Channel Isolation
Epoxy Free Design
High reliability

Application:
WDM Network
Line Monitoring
Telecommunication
Local Area Networks
Testing instruments

Specifications:
Parameter
4 Channel
8 Channel
16 Channel
Mux
Demux
Mux
Demux
Mux
Demux
Central Wavelength (nm)
1270,1290,…1610
Operating Bandwidth(nm)
CW+/-6.5
Channel Spacing(GHz)
20
Insertion Loss(dB)
2.0
2.8
3.6
Uniformity(dB)
1.0
1.0
1.6
Channel Ripple(dB)
0.3
0.3
0.3
Adjacent Channel Isolation(dB)
N/A
30
N/A
30
N/A
30
Non-adjacent Channel Isolation(dB)
N/A
40
N/A
40
N/A
40
PDL(dB)
0.10
PMD(ps/nm)
0.1
Return Loss(dB)
45
Directivity (dB)
50
Power Handling(mW)
300
Operating Temperature (° C)
-5 ~ +70
Storage Temperature (° C)
-40 ~ +85
Package Dimensions(mm)
L120 x W80 xH11.6
L142 x W102 x H14.5
Note: 1.Insertion Loss does not include connector; each connector will add 0.2dB loss.
          2. Other specifications can be made upon customer’s request.
