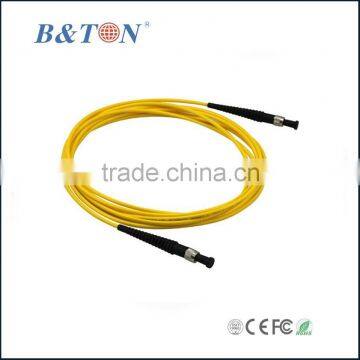

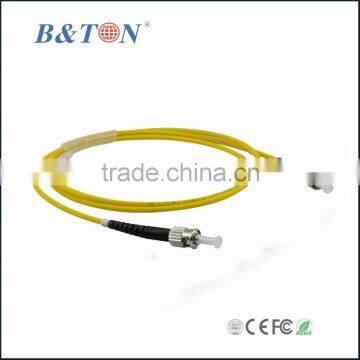

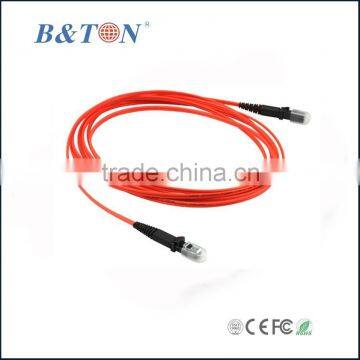

6 core single mode fiber optic cable
Specifications
0.6mm, 0.9mm tight buffer/loose buffer fiber; Aramid yarn for strength member; UL 94V0 flame retardant cable jacket material.
Applications
1, Used in pigtails and patch cords;
2, Used in optical connections in optical communication equipment rooms and optical distribution frames;
3, Used in optical connections in optical apparatus and equipments.
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meets the requirements of relevant standards;
3, The mechanical characteristics meet the requirements of relevant standards;
4, Soft, flexible, easy to splice, and with big capacity data transmission;
5, Meet various requirements of market and clients.
Cable Parameters
Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
Long Term |
Short Term |
Long Term |
Short Term |
Dynamic |
Static |
||||
1 |
1.6 |
2.0 |
30 |
60 |
|
|
50 |
30 |
-20-+60 |
1 |
1.8 |
2.8 |
40 |
80 |
|
|
50 |
30 |
|
1 |
2.0 |
3.5 |
60 |
100 |
100 |
500 |
50 |
30 |
|
1 |
2.4 |
4.5 |
60 |
100 |
100 |
500 |
50 |
30 |
|
1 |
2.8 |
5.8 |
80 |
150 |
100 |
500 |
60 |
30 |
|
1 |
3.0 |
6.5 |
80 |
150 |
100 |
500 |
60 |
30 |
|
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2..The minimum bend radius (static) is 15mm when G.657 fiber is used. | |||||||||
Options
1, Fiber Type: single-mode fiber,multi mode cable, or other types of fiber;
2, Jacket Material: Enviromental flame-retardant polyvinyl chloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromentalthermoplatic polyurethane (TPU), or other contracted material;
3, Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
4, Cable Dimension: The nominal cable dimension, or other contracted dimension;

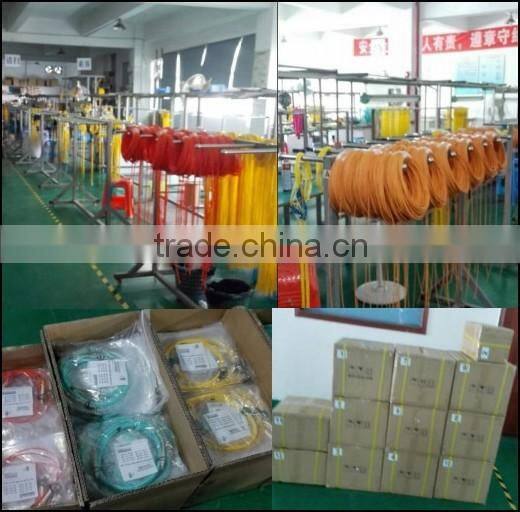

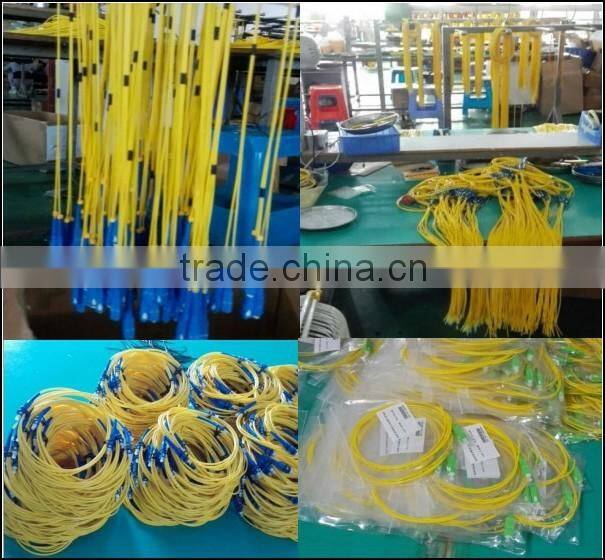

Factory View:

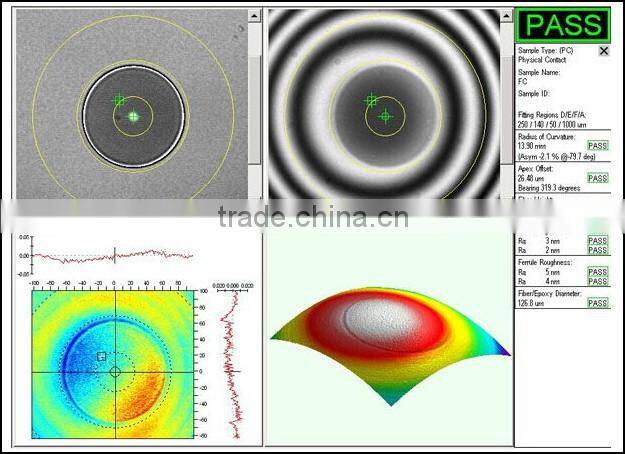

Test Procedure:

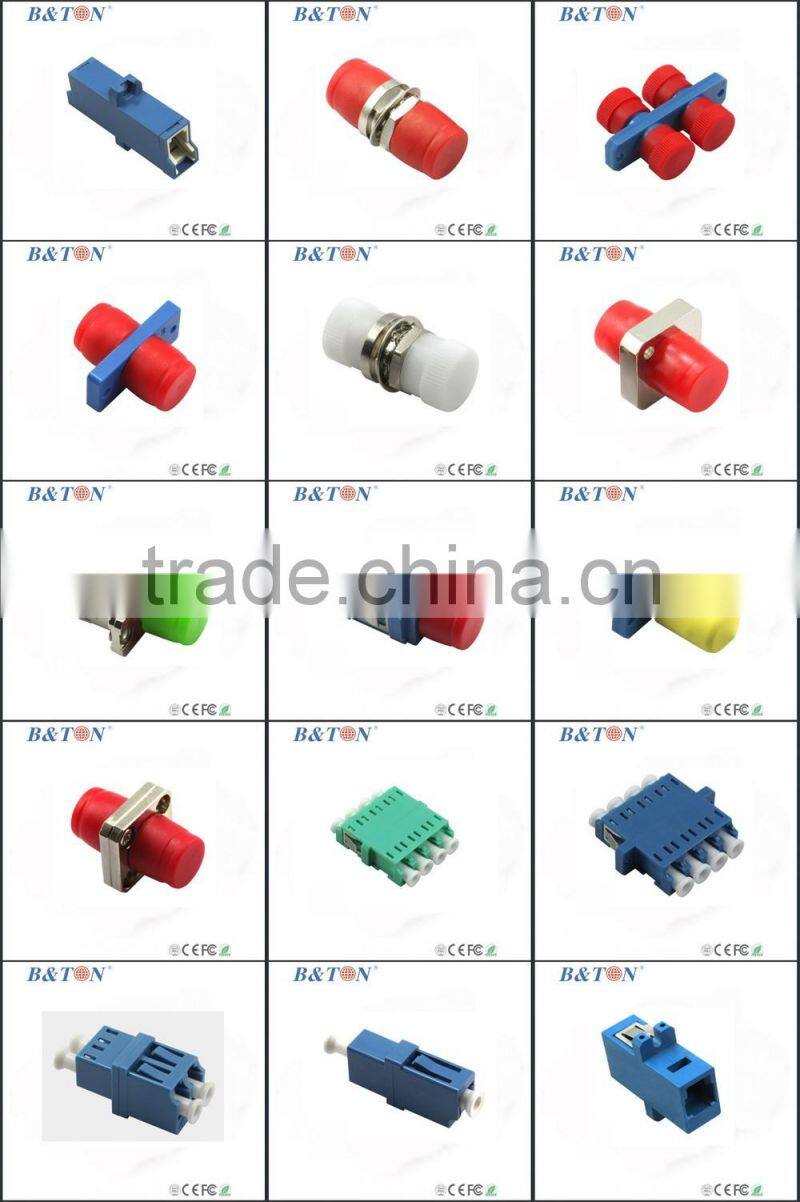

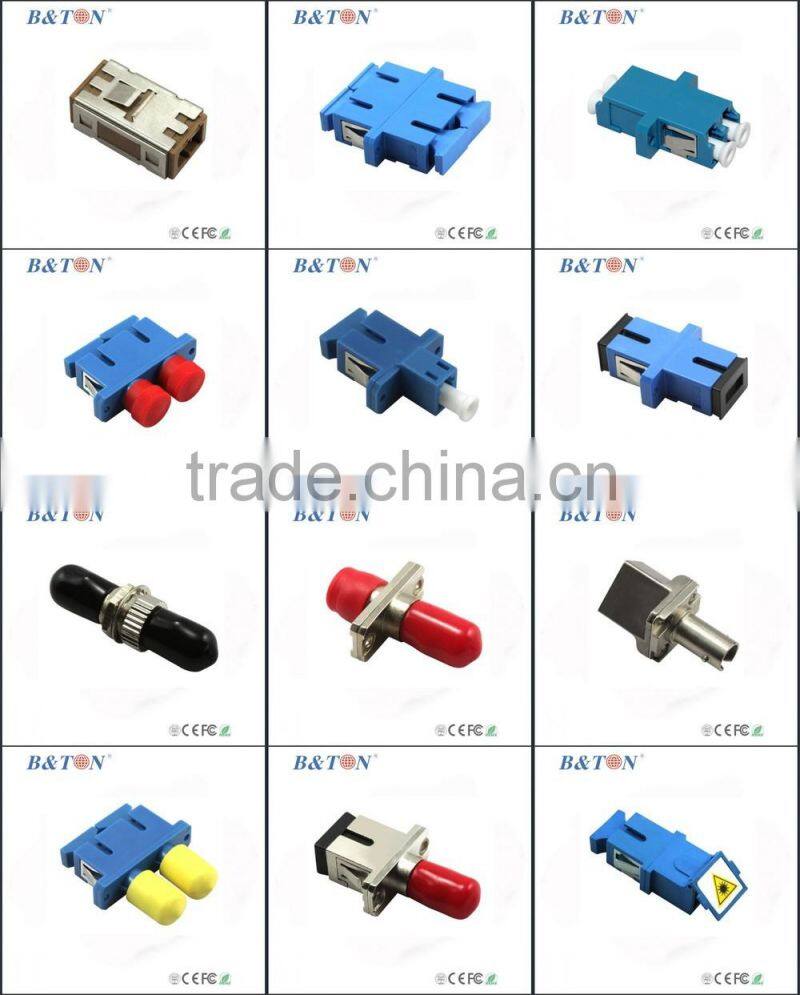

Related Products:
