2015 TKFM Hot Sale City Water Supply Pipeline Use Hot Water Check Valve 10 Inch

2015 TKFM Hot Sale City Water Supply Pipeline Use Hot Water Check Valve 10 Inch thumbnail-1
2015 TKFM Hot Sale City Water Supply Pipeline Use Hot Water Check Valve 10 Inch thumbnail-2
2015 TKFM Hot Sale City Water Supply Pipeline Use Hot Water Check Valve 10 Inch photo-1
2015 TKFM Hot Sale City Water Supply Pipeline Use Hot Water Check Valve 10 Inch photo-2
US$ 30.16 - 1,397.62 MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media High Temperature
Media Water
Port Size DN15(1/2'')~DN300(12'')
Place of Origin Liaoning, China
Model Number H41H-16
Brand Name TKFM, TKFM
Application General
Product Description

 2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

Application

Petroleum, chemical industry, pharmacy, fertilizer, power industry etc.



Advantage

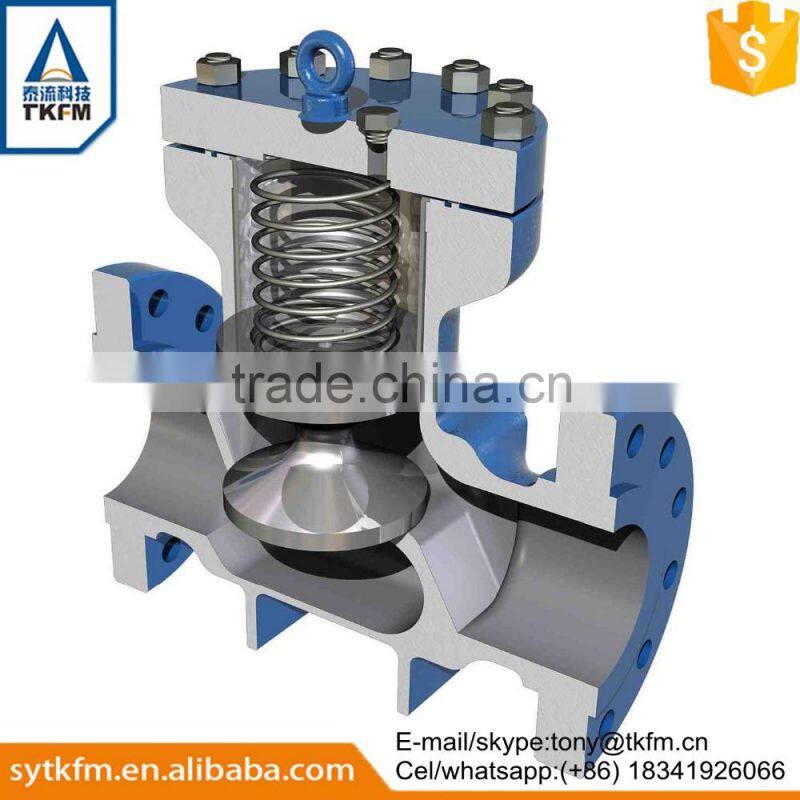

1.GB lift check valve is self-sealing valve. The disc can be acted by the flow which can protect against the media flow back.

2.The disc with spring can keep the valve work in any direction.

3.Reasonable structure, reliable sealing, excellent performance and attractive appearance make a TKFM valve.

2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

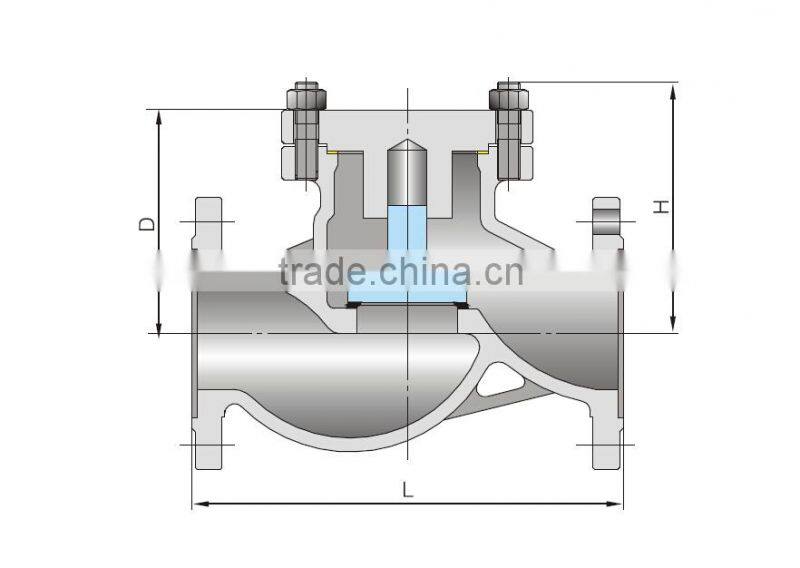

Dimension and Weight

Pressure Specification mm 32 40 50 65 80 100 125 150 200
PN16 Dimension LRF 180 200 230 290 310 350 400 480 600
D 130 150 160 175 200 235 285 300 400
H 120 140 115 140 170 200 230 255 285
Weight(kg)     19 24 29 40 58 83 100
Cv         105 189 381 428 798
PN25 Dimension LRF 180 200 230 290 310 350 400 480 600
D 130 150 160 175 200 235 285 320 400
H 120 140 115 140 170 200 232 262 285
Weight(kg)     19 24 29 40 72 104 145
Cv         105 189 381 428 798
PN40 Dimension LRF 180 200 230160 290 310 350 400 480 600
D 130 150 150 180 200 235 265 320 400
H 120 140 15 160 175 200 225 262 315
Weight(kg) 9 12   20 33 41 73 104 147
Cv         105 189 381 428 798
PN64 Dimension LRF 230 260 300 340 380 430 500 550 600
D 140 160 175 200 230 250 300 340 410
H 162 168 170 188 205 230 265 310 350
Weight(kg) 12 20 29 35 47 68 100 142 195
Cv         105 189 381 428 798
PN100 Dimension LRF 230 260 300 340 380 430 500 550 600
D 140 160 175 200 230 250 300 350 430
H 162 168 170 190 235 265 310 350 400
Weight(kg) 12 20 29 42 63 88 100 120 145
Cv         105 189 381 428 798

Material list(CN standard):

NO. Part Name Carbon Steel Series Stainless Steel Series Alloy Steel Series Low-temperature Steel Series
1 Body WCB CF8 WC6 LCB
2 DISC WCB CF8 WC6 LCB
3 Washer  Flexible graphite+ss304  Flexible graphite+ss304  Flexible graphite+ss304  Flexible graphite+ss304
4 Bonnet WCB CF8 WC6 LCB
5 Studs 35CrMoA 0Cr18Ni9(304) 35CrMoA 0Cr18Ni9(304)
6 Nut 35# 0Cr18Ni9(304) 35CrMoA 0Cr18Ni9(304)
7 Spring 60Si2Mn 0Cr18Ni9(304) 0Cr18Ni9(304) 0Cr18Ni9(304)

Technical Specification:

Design Standard GB/T 12235
Temperature Pressure Rating GB/T 12224
Structural Length Factory Standard
 Flange Dimensions GB/T 9113,GB/T 79
Inspection and Test JB/T 9092,GB/T 13927
nominal pressure PN1.6 PN2.5 PN4.0 PN6.4 PN10.0 PN16.0
Test Pressure(Mpa) Body Test 2.4 3.75 6.0  9.6 15.0  24.0
High Pressure Seal 1.76 2.75 4.4 7.04 11.0  17.6
Low Pressure Seal 0.6 0.6 0.6 0.6 0.6 0.6
Applicable temperature -196°C~550°C(Differeent temperature use different material)
Applicable Medium water,gas,oil and corrosive media(different media use different material)
Packaging & Shipping

 2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

Our Services



1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo

2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

Company Information

 2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

Company advantages:

1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169

2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.

3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.

7. Quick Delivery: We have the large stock for some hot products.

8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

2015 TKFM hot sale city water supply pipeline use hot water check valve 10 inch

FAQ



What is the payment terms and transportation?

-T/T and L/C are the regular payment terms. Mostly we transport products by sea. You can contact us for the details about the payment terms and transportation.



What is the trading area and certification?

-Our main trading area are Asia, Middle East and Africa. We have certification of API, TUV, CE, TS, ISO etc.



What is the after service?

-We have excellent after service. If there are any problem about installation and technology, our engineer can give you best solution in 5 working day.

What is the quality warranty?

-We have a quality warranty time, 18 months after shipment and 12 months after use.
