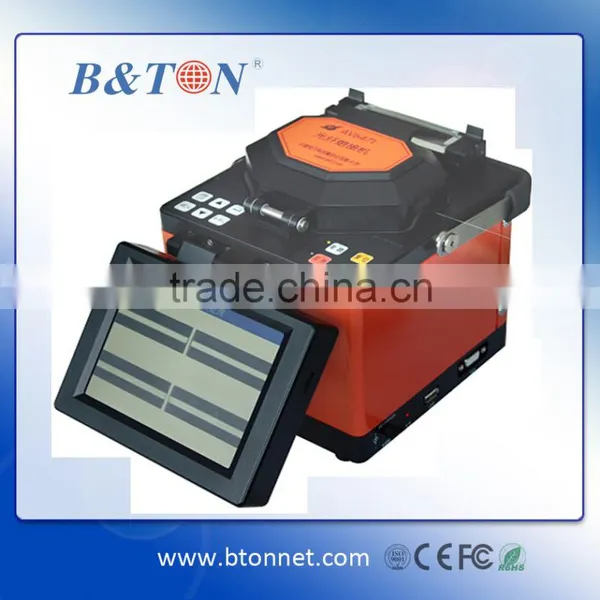

Single Mode Fiber Optic Fusion Splicer AV6471/Optical Fiber Fusion Splicing Machine
1.Core to Core Alignment (PAS)
2.8s splice time
3.256X magnification
4.Machine
Fiber Optic Splicing Machine
NV6471 is a new designed fiber splicing equipment.The powerful funtcion and super low splicing loss make it be competent for construction of trunk line and FTTX :Because of the compact configuration and precise mechanism,it can adapt to execrable enviroment; The novel fiber imaging system make the image clearer and exquisiter;The real-time embeded OS provide friendly man-machine interface and abundant functions. The bulit-in large capacity Li-Ion battery can support long-time fieldwork.The embeded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.
1. New fully-digitalized design;
2. Small volume, light weight, only 2.8kg include battery;
3.8 seconds splicing, 25 seconds Heat-Shrinking;
4. Close shield splice automatically; Close heater, heat automatically;
5. X/Y axes were displayed meanwhile, Magnification up to 304 times;
6. Real time calibrating system for discharging, parameter needn’t be adjusted;
7. Long Electrode Lifetime, up to 4000 times;
8. USB and VGA ports;
9.5.7 Inch digital high distinguish LCD;
10. Battery capacity was display in real time. Precisely;
11. Built-in high capacity battery, 220 times splicing and heating can be accomplished
| Applicable Fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ-DS(ITU-T G.655),EDF |
| Cladding Diameter | 100 to 150μm |
| Coating Diameter | 100 to 1000μm |
| Fiber Cleaved Length | 8~22mm (standard) |
| Splicing Mode | Auto & Manual |
| Average fusion loss | 0.02dB(SM), 0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | ≥60dB |
| Interface | RS232 |
| Record Capacity | 8000 results |
| Working environment | -25 ~ +50(Temperature), 0 ~95%RH(no condensation) |
| Altitude | 0~5000m(altitude) |
| Storing environment | -40 ~ +80(Temperature), 0 ~ 95%RH(no condensation) |
| Protection sleeve length | 20mm,40mm,60mm |
| Tension test | 2.0N(standard) |
| Language | English,Chinese |
| Power Supply | Built in 11.1V Lithium Ion Battery.AC adopter(input AC100~240,output DC13.5V/4.5A) |
| Dimensions | LxWxH=160x150x140(mm) |
| Weight | 2.3kg(no battery ),2.8kg(include battery) |
NV6471 Fiber Splicer+ AC power adopter+ Fiber Cleaver+ Li-Ion battery+ Standby electrode+ Blower brush+ Bottle with siphon+ Fiber bracket+ User’s manual+ Luxury tote kit
1. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2. Item shipped by sea and air or UPS, FedEX, DHL and others, depending on size and weight of total order.
3. We accept T/T, L/C, Western Union, Money Gram and PayPal, just choose what you like
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
