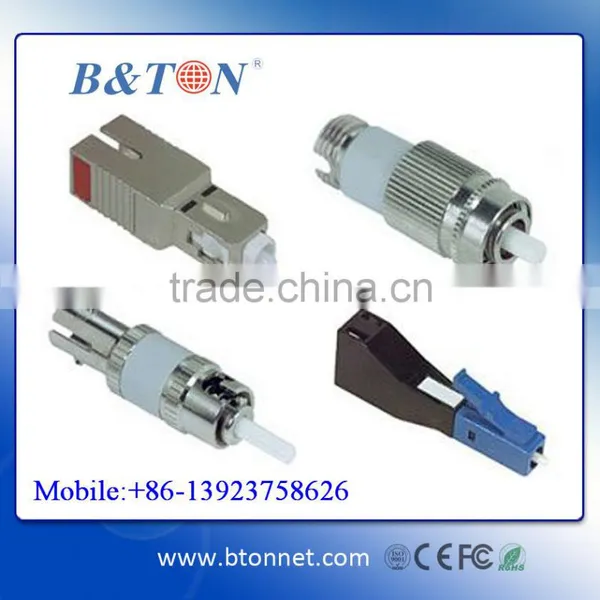

Male to Female Fixed LC ST SC FC Fiber Optic Attenuator
1,Low insertion loss
2,High Return loss
3,Adaptor
4.UL
Fiber Optic Attenuator
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed
Features
1.Fixed Attenuator(Fixed Type FC, SC, ST, LC)
2.Female to male type ( FC, SC, ST, LC)
3.In-Line Attenuator(Fused and Fiber Jumpers Type)
4.High Return Loss(In-Line and High RL Type)
5.Exact and Stable Attenuation(Variable Type)
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
1.Testing equipment
2.Fiber optical CATV
3.Fiber optical sensor
4.Fiber optical telecommunication system
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
