Help CenterBTON Factory RJ45 to Fiber Converter
Related Products
Specifications
Ethernet Media Converter1. 3 years warranty
2. Quick delivery
3. Manufacturer
4. CCTV Security Surveillance and Networking
Ethernet Media Converter
10/100M Ethernet Media Converter
For Networking and CCTV Security Surveillance ( IP Camera )
Features
In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3Z 1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
Automatic-compatible with 10Mbps, 100Mbps and 1000Mbps, easy for upgrading network
Unique IC solution applied
Supports 10/100Mbps and 10/100/1000M full/half duplex and auto-negotiations ,easy upgrades
Supports VLAN transmission
Stable performance more than 50 thousands hours with fault-free
Different power supply to meet customers’ requirement
The largest transmission distance reach 120 kilometers
Dual or single fiber, multimode or single mode, for customers’ choice
All interface with thunder and lightning protection
In conformity with safety code of FCC, CE and RoHS.
Introduction
10/100M Ethernet Media Converter is a kind of intelligent, adaptive and fast Ethernet converter devices.
It can implement data transmission between twisted pair electrical signals and optical signals which are the
two types of network connection media.This kind of media converter can extend the transmission distance to
2 kilometers(multimode) or 120 kilometers(single mode). Using media converter is an economical solution to
achieve long distance transmission base on current status.
Specification
Rate: self-adaptive 10/100M
Protocol supported: IEEE802.3/IEEE802.3U etc.
Cable type: single / dual fiber
Optic mode: single / multimode
Transmission mode: half / full duplex
Ethernet interface: RJ-45
Optic interface: SC/FC/ST
Optic wavelength: 850nm, 1310nm, 1550nm, 1310/1550nm
BER: less than 1/1000000000
MTBF: 3 years
Power: 2.5W
Power supply: AC220V/0.5A, DC-48 V /0.5A,
DC5V/1A
Working temperature: 0~50°C
Working humidity: 5%-95%
Storage temperature: -40°C~70°C
Storage humidity: 5%~95%(no-condensing)

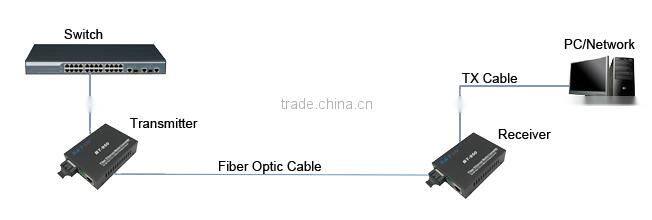

Application Diagram
Workshop View
