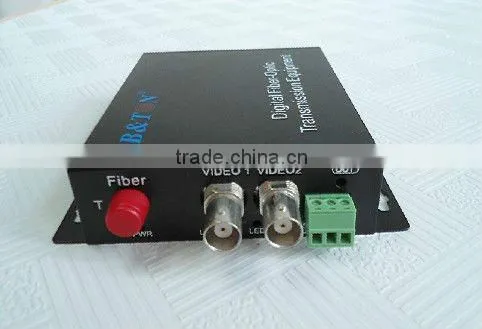

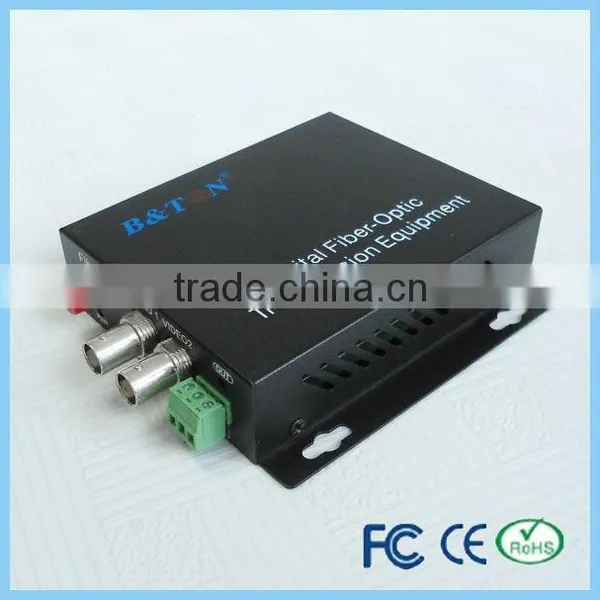

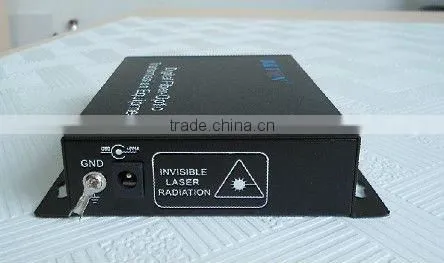

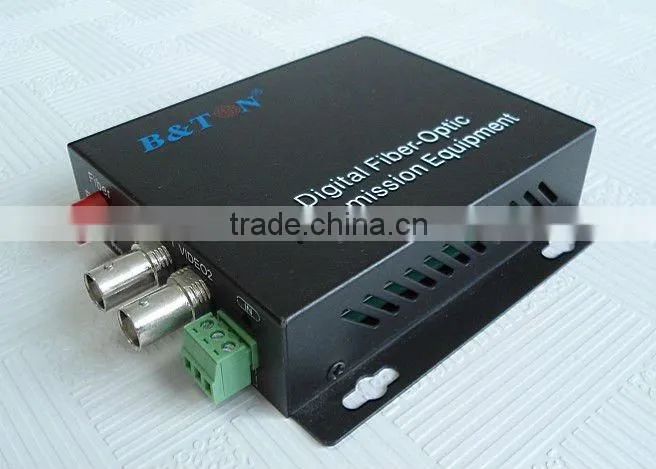

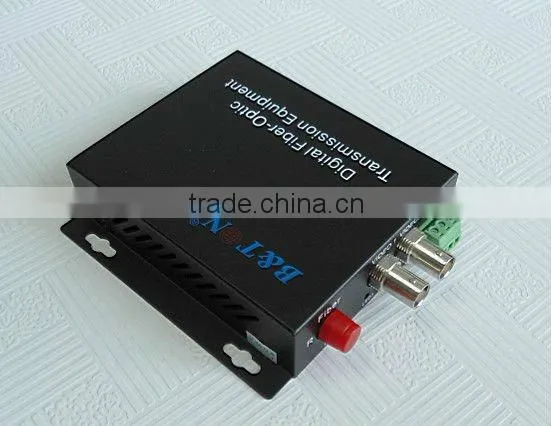

Digital 2 Channel Fiber Optic Video Transceivers

Name: Digital 2 Channel Fiber Optic Video Transceivers
Brand: Bton
SKU: 112992857
Availability: InStock

US$ 1 - 100 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Bton

Model Number:

BT-2V1DF-T/RS-23

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Bton

Model Number BT-2V1DF-T/RS-23

Specifications

1.manufacturer
2.best material,quick delivery
3.dimension:105x104x28mm
4.3-year warranty
5.fiber optic video transceivers

Fiber Optical video converter 2 channels

Mini digital optic video transceiver

Features

> With audio, data and contact closure channel can be added, mini structure video transceiver has good performance and saves cost

> 10-bit digital encoded technology and lossless broadcast quality transmission

> Automatic compatible with PAL/NTSC/SECAM video formats

> Protocols of RS-232, RS422, RS-485 are applied.

> Non-compression and non-distortion signal and real-time transmission to achieve high quality signal transmission solution

> Modularization structure, industrial-grade design, SMT craft and good power supply ensure stable performance for 105 hours with fault-free

> No adjustment and easy management due to plug-and-play design, as well as feature of hot-swap

> LED status indicators offer right diagnostics of the system operating condition.

> All interface with excellent thunder and lightning protection

> Stand-alone type and card-type installed in 19’’ 2U or 4U rack-mount chassis for centralized management.

Model	Description	Optical interface	Transmission distance(km)	Fiber Type
BT-1VF-T/RS	1-channel video	FC/SC/ST	20 to 80	Single/ multimode
BT-1V1DF-T/RS	1-channel video and 1-channel data
BT-1V1D↑↓F-T/RS	1-channel video and 1 channel bidirectional data
BT-1V1A↑↓F-T/RS	1-channel video and 1-channel bidirectional audio
BT-1V↑↓1D↑↓F-T/RS	1-channel bidirectional video and 1-channel bidirectional data
BT-1V↑↓1A↑↓F-T/RS	1-channel bidirectional video and 1-channel bidirectional audio
BT-2VF-T/RS	2-channel video	FC/SC/ST	20 to 80	Single/ multimode
BT-2V1DF-T/RS	2-channel video and 1 channel data
BT-2V1D↑↓F-T/RS	2-channel video and 1-channel bidirectional data
BT-2V1A↑↓F-T/RS	2-channel video and 1-channel bidirectional audio
BT-2V1CF-T/RS	2-channel video and 1-channel contact closure
BT-4VF-T/RS	Mini 4-channel video	FC/SC/ST	20 to 80	Single/ multimode
BT-4V1DF-T/RS	Mini 4-channel video and 1-channel data
BT-4V1D↑↓F-T/RS	Mini 4-channel video,1-channel data and 1-channel Ethernet
BT-4V1A↑↓F-T/RS	Mini 4-channel video and 1-channel telephone
BT-4V1CF-T/RS	Mini 4-channel video,1-channel return data and 1-channel contact closure
