VGA KVM Over Fiber Extender
The VGA KVM Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
l Transmits VGA video signals up to 10km over one fiber optic cable;
l Support video resolution up to 1920*1080P@60Hz;
l Support keyboard and mouse signal transmission;
l Support external stereo audio unidirectional transmission;
l Support transmitter one channel signal output;
l Support RS232 signal unidirectional transmission, baud rate self-adaptive;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
Specification:
Parameter |
Description |
|
video |
Standards |
VGA |
Maximum pixel clock |
380MHz |
|
Resolution |
1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz |
|
Impedance |
75Ω |
|
Audio |
Interface |
3.5mm earphone seat |
Format |
44.1K,48K,96K,176K,192K |
|
Signal type |
Stereo |
|
K/M |
Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
RS232 |
Interface |
Industrial terminal |
Signal direction |
Bidirectional |
|
Baud rate |
Self-adaptive, Max:115200bps |
|
Data bits |
8 |
|
Optical fiber |
Interface |
LC connector |
Fiber type |
Single-mode single fiber |
|
Wavelength |
Single-mode 1310nm |
|
Interface bandwidth |
2.97Gbps |
|
Transmission distance |
standard 10km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
Power dissipation |
MAX 6W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension |
155*115*30mm |
|
The warranty |
1 year free warranty |
|
Panel:

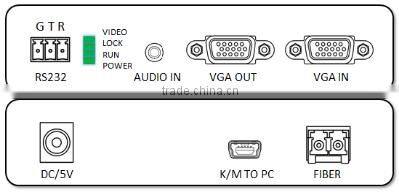

Transmitter

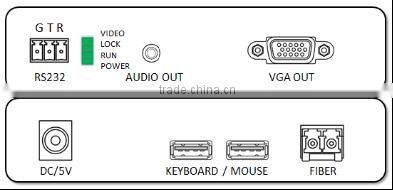

Receiver
Port name |
Description |
VGA IN/OUT |
VGA signal input/output |
AUDIO IN/OUT |
Stereo audio signal input/output |
RS232 |
Serial port(G: Ground, T: transmit, R: receive) |
DC/5V |
Power adapter socket |
FIBER |
SFP module---LC connector |
K/M TO PC |
Mini-USB connect to PC |
KEYBOARD/MOUSE |
USB connect to keyboard and mouse |
LED indicator |
Description |
VIDEO |
Video signal connection indicator |
LOCK |
Video signal lock indicator |
RUN |
System status indicator |
POWER |
System power indicator |
Packing List:
l VGA optical fiber transmitter ………. 1 pc
l VGA optical fiber receiver …………..1 pc
l Fiber optic module TX/RX …………..1 set
l Power adapter …………………………… 2 pcs
l User manual ……………………………….1 pc

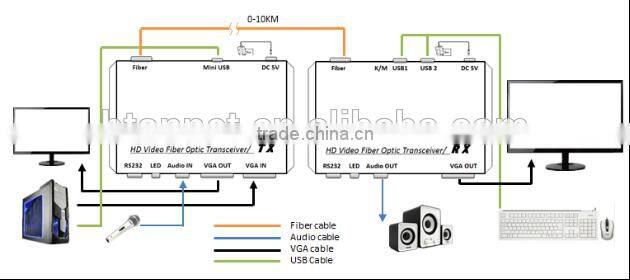

Diagram:
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
Certificate:
Workshop Display:
