Help Center1/2/4/8 Channel Hd-sdi Video Converter ,HD SDI Video Transmitter
Related Products
-
OEM Service 1/2/4/8/16ch HD SDI Converter Hdsdi Optic to Fiber Converter Hd-sdi Video TransmitterUS$ 1 - 100MOQ: 1 Pair -
High Quality HD-SDI Video Fiber Converter Best SellingUS$ 1 - 100MOQ: 1 Pair
-
RS232 to HDMI Converter Kvm Extender HDMI Extender HDMI Optical Fiber Extender HD Support 1080p and 4K 2K HDCPUS$ 1 - 80MOQ: 1 Pair
-
Fiber Optic Converter With 3D Signals 4K*2K Support RS232 and IR Signal HDMI HDBaseT ConverterUS$ 1 - 80MOQ: 1 Pair
-
1080P Single/Multi Module 10/100KM KVM CCTV Fiber Optical Video Converter CATV| Hdmi to Fiber Optic ConverterUS$ 1 - 80MOQ: 1 Pair
HD-SDI Unidirectional Fiber Optical Video Converter Transmitter and Receiver
Appplication
« Remote OB Van/Truck Video Feeds
« Broadcast Studio Camera Feeds
« Long-haul Signal Transport
« TV station/video conference
« Lecture Hall Projector Connectivity
« Medical/Surgical Room Broadcast
« Building to Building video conference calling
« Small corporate campus video links
Description
It could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.
Features
« 1-ch unidirectional HD-SDI video with 1-ch embedded audio + 1-ch reversed RS485 ( terminal block) over one fiber
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
Ordering Information
HD-SDI Unidirectional Fiber Optic Transmitter/Receiver
4-Ch HD-SDI, 1-ch reversed RS 485, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
Serial TV BNC Input | |
TV signal standard |
SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s) |
Input channel |
4, (4-ch loop out optional) |
Reflection loss |
>15DB |
Equilibrium |
0-150m @ 1.485Gb/s |
Connector |
75Ω BNC |
Optic Output | |
Channel |
4 |
Type |
Single-mode/fiber (multimode optional) |
Wavelength |
1310nm /1550nm |
Reflection loss |
> 15dB |
Jitter |
< 0.2UI |
Connector |
FC/PC(SC/PC optional) |
Serial TV BNC Output (EO/OE) | |
No. of channels |
4(4 channel optional) |
Signal level |
800mV nominal |
Rise/fall time |
200Ps nominal |
Overshoot |
<10% amplitude |
Reflection loss |
> 15dB |
Jitter |
< 0.2UI |
Power and environmental indicator | |
Operating temperature |
-40℃~+50℃ |
Pressure |
1A@12VDC |
Power |
12W |
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
Average time trouble-free |
>100000 hours |
Data | |
Channel |
4 |
Data format |
Reversed RS485 |
Data rate |
DC to 300 Kb/s |
Connector |
wire connecting terminal |
BER |
<10-9 |
Other | |
Dimension |
30mm * 105mm *115mm |
Weight |
1Kg |
Application Diagram

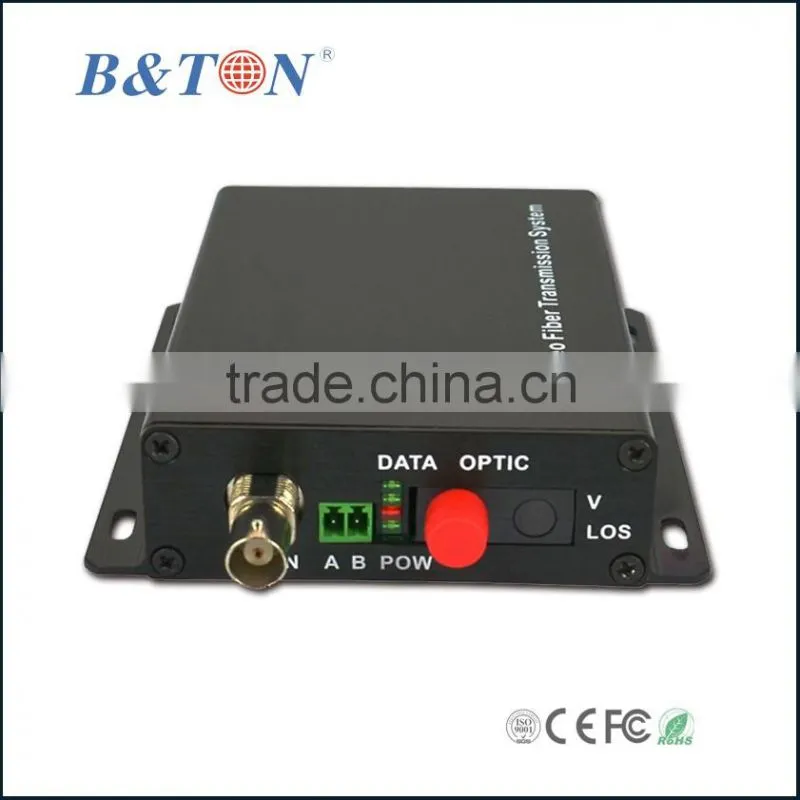

Products Photo:
1 Channel HD-SI
4 Channel HD-SDI
8 Channel HD-SDI
