3GSDI Video Converter Over Fiber
1-ch unidirectional HD-SDI video with 1-ch embedded audio + 1-ch reversed RS485 ( terminal block) over one fiber
Range from 19.4Mb/s to 1.485Gb/s
SMPTE 292M (1.485Gb/s) clock recovery
Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
Optional network management system
LED status indicators monitor the critical parameters
Applications
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to Building video conference calling
Small corporate campus video links
Description
The BT3010MD could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.
Serial TV BNC Input | |
TV signal standard | SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s) |
Input channel | 1, (1-ch loop out optional) |
Reflection loss | >15DB |
Equilibrium | 0-150m @ 1.485Gb/s |
Connector | 75Ω BNC |
Serial TV BNC Output (EO/OE) | |
No. of channels | 1(2 channel optional) |
Signal level | 800mV nominal |
Rise/fall time | 200Ps nominal |
Overshoot | <10% amplitude |
Reflection loss | > 15dB |
Jitter | < 0.2UI |
Connector | 75Ω BNC |
Data | |
Channel | 1 |
Data format | Reversed RS485 |
Data rate | DC to 300 Kb/s |
Connector | wire connecting terminal |
BER | <10-9 |
Optic Output | |
Channel | 1 |
Type | Single-mode/fiber (multimode optional) |
Wavelength | 1310nm /1550nm |
Reflection loss | > 15dB |
Jitter | < 0.2UI |
Connector | FC/PC(SC/PC optional) |
Power and environmental indicator | |
Operating temperature | -40℃~+50℃ |
Pressure | 1A@12VDC |
Power | 12W |
EMI/RFI | FCC Part 15 Class A, EU EMC standard |
Average time trouble-free | >100000 hours |
Other | |
Dimension | 30mm * 105mm *115mm |
Weight | 1Kg |

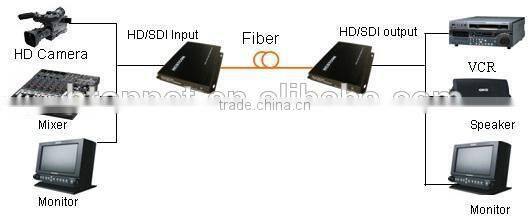

Diagram:
| SD/3G/HD-SDI Video Converter | |
| Model | Specification |
| HD-SDI Series | |
| BT3010 -T/R | 1ch HD-SDI input with 1ch loop out, 2ch HD-SDI output, single fiber, stand-alone or 1U rack chassis |
| BT3011-T/R | 1ch Bid-HD-SDI input/output, 1ch Bid-HD-SDI output/input, single fiber, stand-alone or 1U rack chassis |
| BT3012 -T/R | 1ch HD-SDI input/output, 1ch reverse RS485/RS422/RS232, single fiber, stand-alone or 1U rack chassis |
| BT3013-T/R | 1ch HD-SDI input/output, 1ch reverse RS485/RS232/RS422, 1ch audio, single fiber, stand-alone or 1U rack chassis |
| BT3014 -T/R | 1ch HD-SDI input/output, 1ch Ethernet, single fiber, stand-alone or 1U rack chassis |
| BT3001-T/R | 1ch HD-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT3001M-T/R | 1ch HD-SDI input/output, single fiber, Mini type (Data, and audio for option) |
| BT3002-T/R | 2ch HD-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT3004-T/R | 4ch HD-SDI/ASI input/output, single fiber, 1U rack chassis (Data, audio and Ethernet for option) |
| BT3006-T/R | 6ch HD-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
| BT3008-T/R | 8ch HD-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
| 3G-SDI Series | |
| BT4010 -T/R | 1ch 3G-SDI input with 1ch loop out, 2ch 3G-SDI output, single fiber, stand-alone or 1U rack chassis |
| BT4011-T/R | 1ch Bid-3G-SDI input/output, 1ch Bid-3G-SDI output/input, single fiber, stand-alone or 1U rack chassis |
| BT4012 -T/R | 1ch 3G-SDI input/output, 1ch reverse RS485/RS422/RS232, single fiber, stand-alone or 1U rack chassis |
| BT4013-T/R | 1ch 3G-SDI input/output, 1ch reverse RS485/RS232/RS422, 1ch audio, single fiber, stand-alone or 1U rack chassis |
| BT4014 -T/R | 1ch 3G-SDI input/output, 1ch Ethernet, single fiber, stand-alone or 1U rack chassis |
| BT4001-T/R | 1ch 3G-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT4001M-T/R | 1ch 3G-SDI input/output, single fiber, Mini type (Data, and audio for option) |
| BT4002-T/R | 2ch 3G-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT4004-T/R | 4ch 3G-SDI/ASI input/output, single fiber, 1U rack chassis (Data, audio and Ethernet for option) |
| BT4006-T/R | 6ch 3G-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
| BT4008-T/R | 8ch 3G-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
| SD-SDI/ASI Series | |
| BT2010-T/R | 1ch SD-SDI/ASI input with 1ch loop out, 2ch SD-SDI/ASI output, single fiber, stand-alone or 1U rack chassis |
| BT2011-T/R | 1ch Bid-SD-SDI/ASI input/output, 1ch Bid-SD-SDI/ASI output/input, single fiber, stand-alone or 1U rack chassis |
| BT2012 -T/R | 1ch SD-SDI input/output, 1ch reverse RS485/RS422/RS232, single fiber, stand-alone or 1U rack chassis |
| BT2013 -T/R | 1ch SD-SDI input/output, 1ch reverse RS485/RS232/RS422, 1ch audio, single fiber, stand-alone or 1U rack chassis |
| BT2014 -T/R | 1ch SD-SDI input/output, 1ch Ethernet, single fiber, stand-alone or 1U rack chassis |
| BT2001-T/R | 1ch SD-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT2001M-T/R | 1ch SD-SDI/ASI input/output, single fiber, Mini type (Data, and audio for option) |
| BT2002-T/R | 2ch SD-SDI/ASI input/output, single fiber, stand-alone or 1U rack chassis (Data, audio and Ethernet for option) |
| BT2004-T/R | 4ch SD-SDI/ASI input/output, single fiber, 1U rack chassis (Data, audio and Ethernet for option) |
| BT2006-T/R | 6ch SD-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
| BT2008-T/R | 8ch SD-SDI/ASI input/output, single fiber, 2U rack chassis (Data, audio and Ethernet for option) |
