Product Details
Place of Origin: | Guangdong, China | Brand Name: | B&TON | Model Number: | BT-M950SM-20 |
Product Description
Managed Media Converter Card-type ,10/100M,10/100/1000M,Single/Dual Fiber
Features
16-slot multifunctional management system is a Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc. supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.
Specification
l Supporting 10/100/1000M, full/half duplex autosensing
l Supporting auto-MDI/MDIX
l Supporting 1*9 transceiver and SFP transceiver
l Support SFP DMI(Diagnostic Monitoring Interface) function
l Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
l Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through
l Rate Limit function, 32Kbps
l Supporting Loopback, precisely locating the failure, convenient for link test
l Supporting LFP, quickly locates the failure
l Supporting remote power off alarming
l Economical management function within bandwidth, supporting 802.3ah and TS 1000
l With powerful network management function, supporting WEB and SNMP
l Supporting hot plug
l Supporting Remote management
l Easy installation with complete LED indicators for working situation
l Supporting 2U chassis (16 slots) and standalone use
Specification
Technical Parameter: | |
Access Method: | 1X10/100/1000M RJ45 1X1000Base-FX |
Standard: | IEEE802.3 ,IEEE802.3u,IEEE802.3Z,IEEE802.3x |
Wavelength: | 850nm/1310nm/1550nm |
Connector | SC,FC.ST.LC |
Power Dissipation: | <3W |
Operating Temperature: | 0 ~ 50 ℃ |
Humidity: | 5%~90% |
Storage Temperature: | -40~ 70 ℃ |
Dimension: | 156mm (W)×128mm(D)×32 mm(H) (standalone ) 112.8mm (W)×77.2mm(D)×23 mm(H) (Card)Product Application Disproduct Application Display |
P/N | Description | - | X | X | X | X |
BT-M950GS-XXXX | 10/100/1000Base-TX to 1000Base-FX Media Converter Card |
| S: Duplex Single-mode M: Duplex Multi-mode B: Simplex Single-mode SFP: SFP Slot | 3: TX 1310nm 4: TX 1490nm 5: TX 1550nm 8: TX 850nm | S: SC F: FC T: ST L: LC | 05: 550M 2: 2KM 20: 20KM 40: 40KM |
BT-M950GS-XXXX | 10/100/1000Base-TX to 1000Base-FX Media Converter (Remote Standalone) |

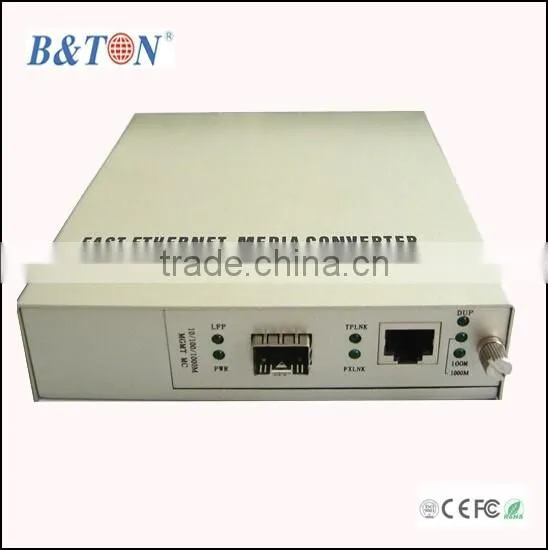

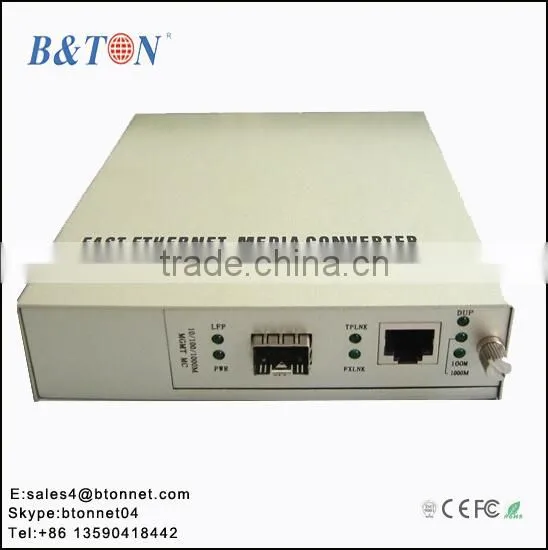

Managed Media Converter:
Card-Type Managed Media Converter:
Managed Chassis
