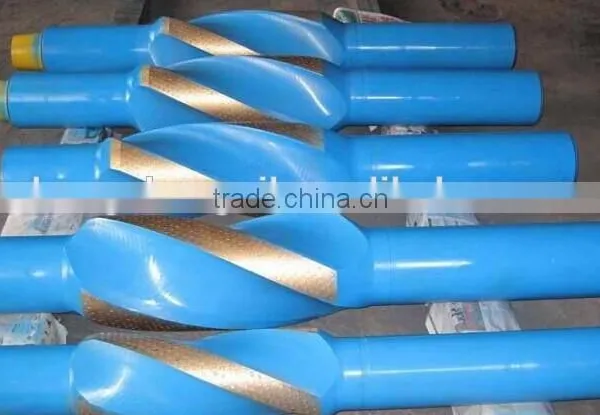

API 7 Integral Spiral Blade Stabilizer

API 7 Integral Spiral Blade Stabilizer thumbnail-1
API 7 Integral Spiral Blade Stabilizer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HS
Model Number:
OD: 6''-36'
Contact Supplier Request Quote Chat Now
Lijin Hongsheng Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HS
Model Number OD: 6''-36'
Type Stabilizer
Machine Type Drilling Tool
Certification API
Material Other, AISI 4145H, AISI 4145H Mod. Alloy Steel
Processing Type Forging
Use Well Drilling

Specifications

Spiral Blades Stabilizer
1. Material: AISI 4145H
2. Specification: OD: 6''-36''
3. API Spec.7 standard

Integral 3-Spiral Blade Stabilizer , Integral 4-Spiral Blade Stabilizer (string type , near bit type). The working hardfacing surface (also called as wall contact) materials available separately are

(1) carbide insert

(2)Inserted diamond compound

(3)Low temperature brazing tungsten carbide stug

(4)Surface bead welding abrasive welding rod,etc.



Technical specifications and parameters:

it size
(in)

 Working O.D.
(mm)		 End O.D. of body
(mm)		 I.D.
(mm)		 Length
(mm)		 Thread code on both ends
string type Near bit type
Top Down Top Down
6 152.2 121 51 1200 NC38 3 1/2 REG
6 1/4 158.7
6 1/2 165.1
7 1/2 190.5 159 57 1600 NC46 4 1/2 REG
7 7/8 200
8 3/8 212.7 159
165		 71 1600
1800		 NC46
NC50
8 1/2 215.2 159
165
178
8 3/4 222.2
9 1/2 241.3 178
197		 1600 NC50 NC50 NC50
9 5/8 244.5 1800 6 5/8 REG
9 7/8 250.8
12 1/4 311.2 203
209		 76 1800 NC56
6 5/8 REG		 NC56
6 5/8 REG		 NC56
6 5/8 REG		 6 5/8 REG
16 406 229
241.3		 2000
2200		 NC61
7 5/8 REG		 NC61
7 5/8 REG		 NC61
7 5/8 REG		 NC61
7 5/8 REG
17 1/2 444.5
24 609.6
26 660.4
28 711.2

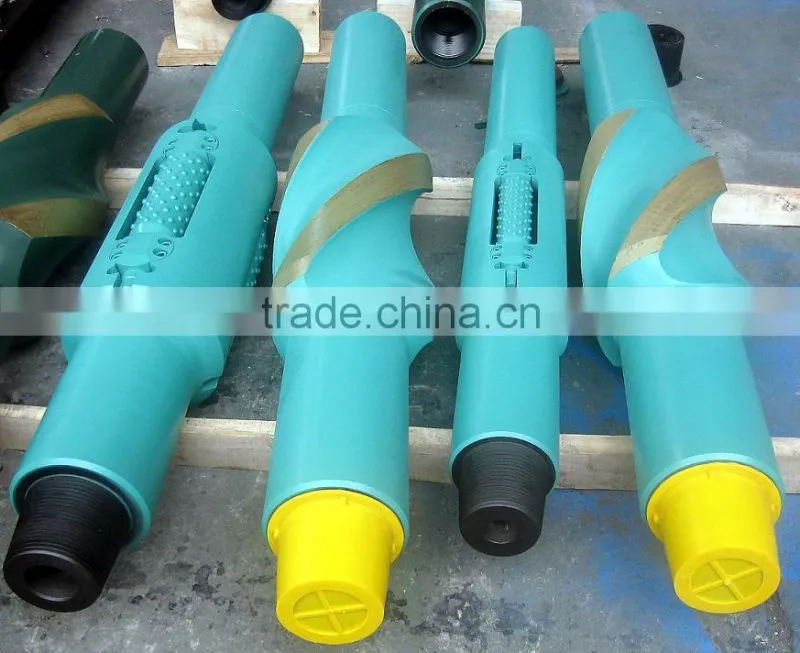

API 7 Integral Spiral Blade Stabilizer
